Page 26
(b) Connect the lighting cable to the transformer. Screw the dust cover in place firmly.
I/P
O/P
12
12
DO NOT CONNECT TO GAS SUPPLY YET!
The rear burner ignition should make a continuous clicking noise when the rear burner
control knob is pressed IN. If there is any problem, check the battery charge, check the
battery orientation, check the connections, check the spark point gap, check the bulbs.
The Control panel push buttons should switch the Halogen hood lights and the control
panel LED lights on and off. The push buttons should be lit whenever there is power coming
from the transformer. If there are any problems, check the power supply, check the
connections, try the push button switches again. Troubleshooting guide at the back of this
manual has details on replacing bulbs and LEDs.

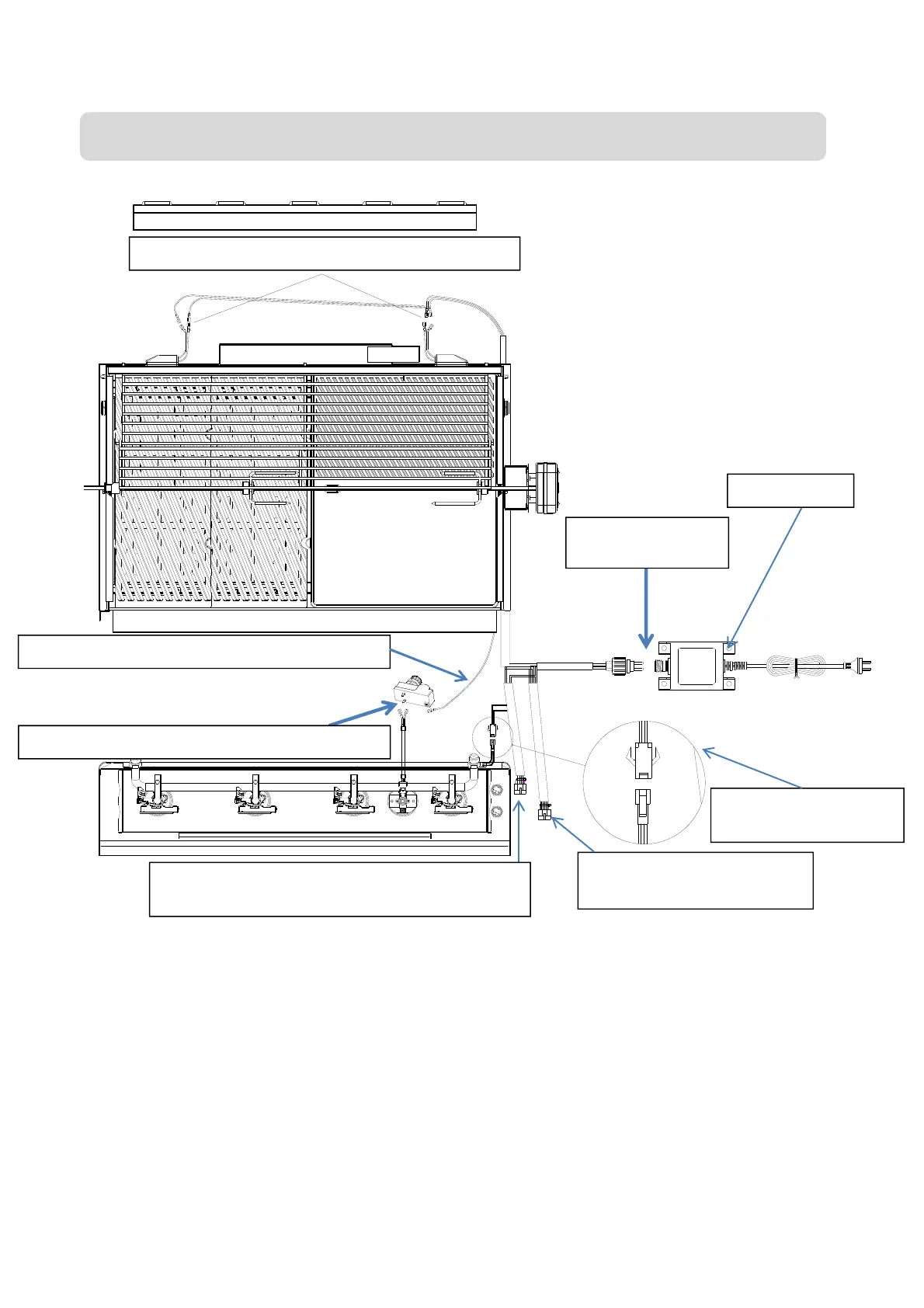

Assembly instructions (continued)
Halogen Hood Light Terminals (pre –assembled)
Rear Ignition Two Yellow Wires Connection Point
Rear Ignition Single Black Wire Connection Point
Lighting Cable
Connection Point
Halogen Hood Light Terminal
(pre –assembled)
Control Panel Terminal
(pre –assembled)
LED Control Panel Connection Point with Control
Panel Switch Connection Point (pre –assembled)
Transformer
To Next Page
