STEP 6 (ONLY IF JOINING ADJACENT BARBEQUES): Join the carts and fireboxes.
If you are joining two carts and barbeques together, e.g. a 2B and 4B to make a 6B, then
first assemble each head onto its respective cart as above. Adjust the cart heights to match
each other as outlined in the cart assembly manual, and then join the adjacent carts and
fireboxes as detailed below.
(a) Bolt the adjacent carts together
WHAT YOU NEED
Four M6*16mm Screws
Four M6 Nuts

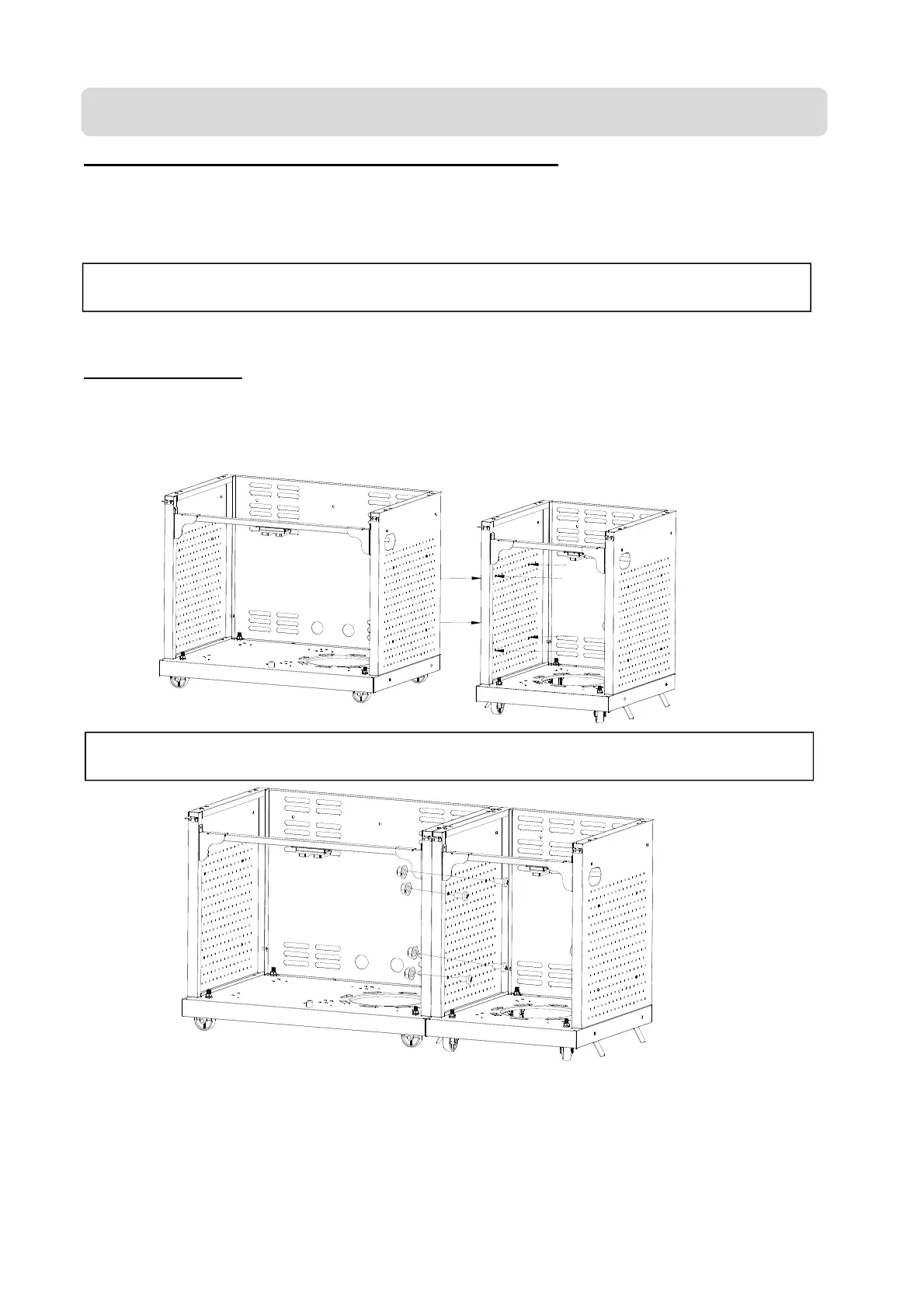

Join the two carts using Four M6*16mm Screws, and Four M6 Nuts as shown below:
Follow the instructions that came with the cart to properly level the carts and if necessary,
adjust the castors, so that all castors are simultaneously in contact with the ground once the
carts are level. Note that unless the ground is perfectly level, the castor heights may need
adjustment each time the cart is moved to a different position in order to level the doors.
Note that doors, cart top panels and barbeque heads are not shown here for clarity,
but should already be in place.
Assembly instructions (continued)
Note that doors, cart top panels and barbeque heads are not shown here for clarity,
but should already be in place.
