2. Parts, controls and connectors

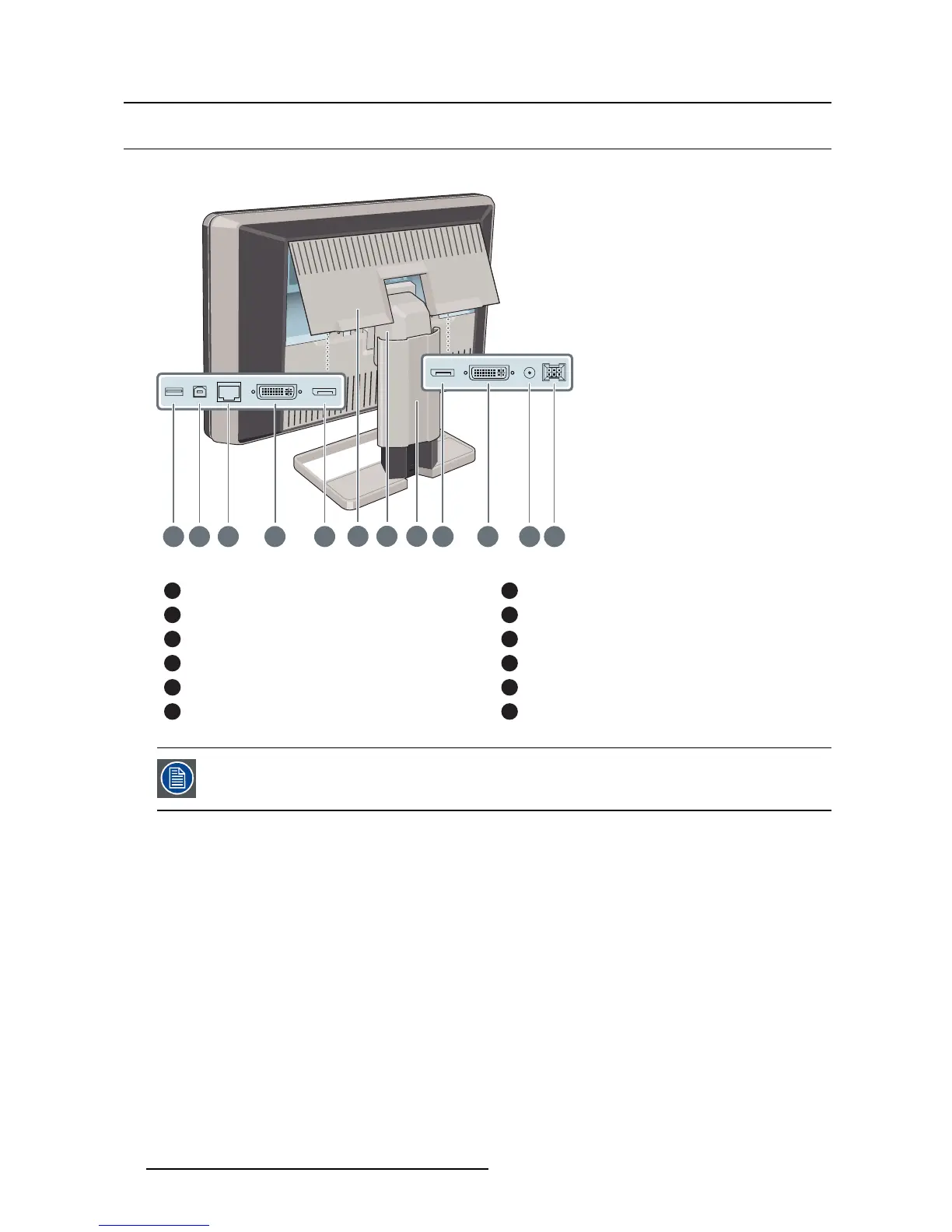

2.2 Display rear vi ew
Overview
6 87
1 2 3 4 5
9 10 11 12
Image 2-2
1
USB downstream connector
2
USB upstream connector
3
Ethernet connector (see note below)
4
DVI 1 video input
5
DisplayPort 1 video input
6
Connector compartment cover
7
Neck cover
8
Display stand cover
9
DisplayPort 2 video input
10
DVI 2 video input
11
+5 Vdc, 0.5 A power output
12
+24 Vdc power input
The Ethernet connection is used for maintenance purposes and is not supported for
user application.
6 K5902031 CORONIS FUSION 10MP 28/08/2013
