Barco MDCG-10130 User Manual

3. Display installation
3. DISPLAY INSTALLATION
Prior to installing your Coronis Fusion 10 MP and connecting all necessar y cables, make
sure to have a suitable display c ontroller physically installed in your computer. If you
are using a Barco display controller, plea se consult the user guide delivered with it to
do this.
3.1 R emo ving the covers

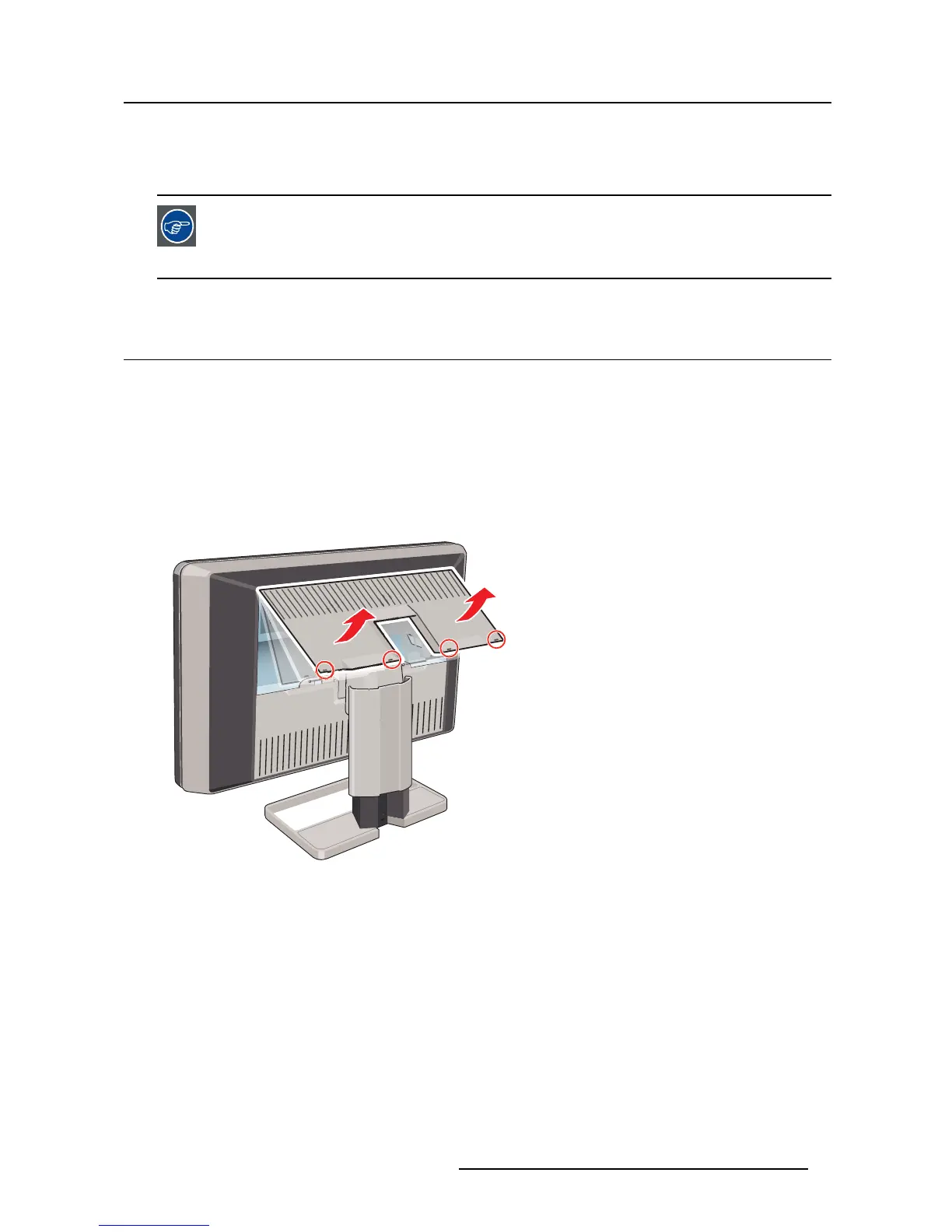

To remove the connector compartment cover
The connector compartment cover should be removed to get access to the connectors. To remove the
cover, proceed as follows:
1. Gently lift the clips at one of the handles of the connector compartment cover to release that s
ide of the
cover.
2. Do the same at the other side of the cover.
3. Remove the cover.
To remove the display stand cover
To get access to the cable routing channel, the display stand cover should be removed. This can be done
as follows:
1. Gently press and hold the clips at the inside top of the cover.
K5902031 CORONIS FUSION 10MP 28/08/2013
7
