3. Display installation
3.5 Con necting th e pow er cabl e

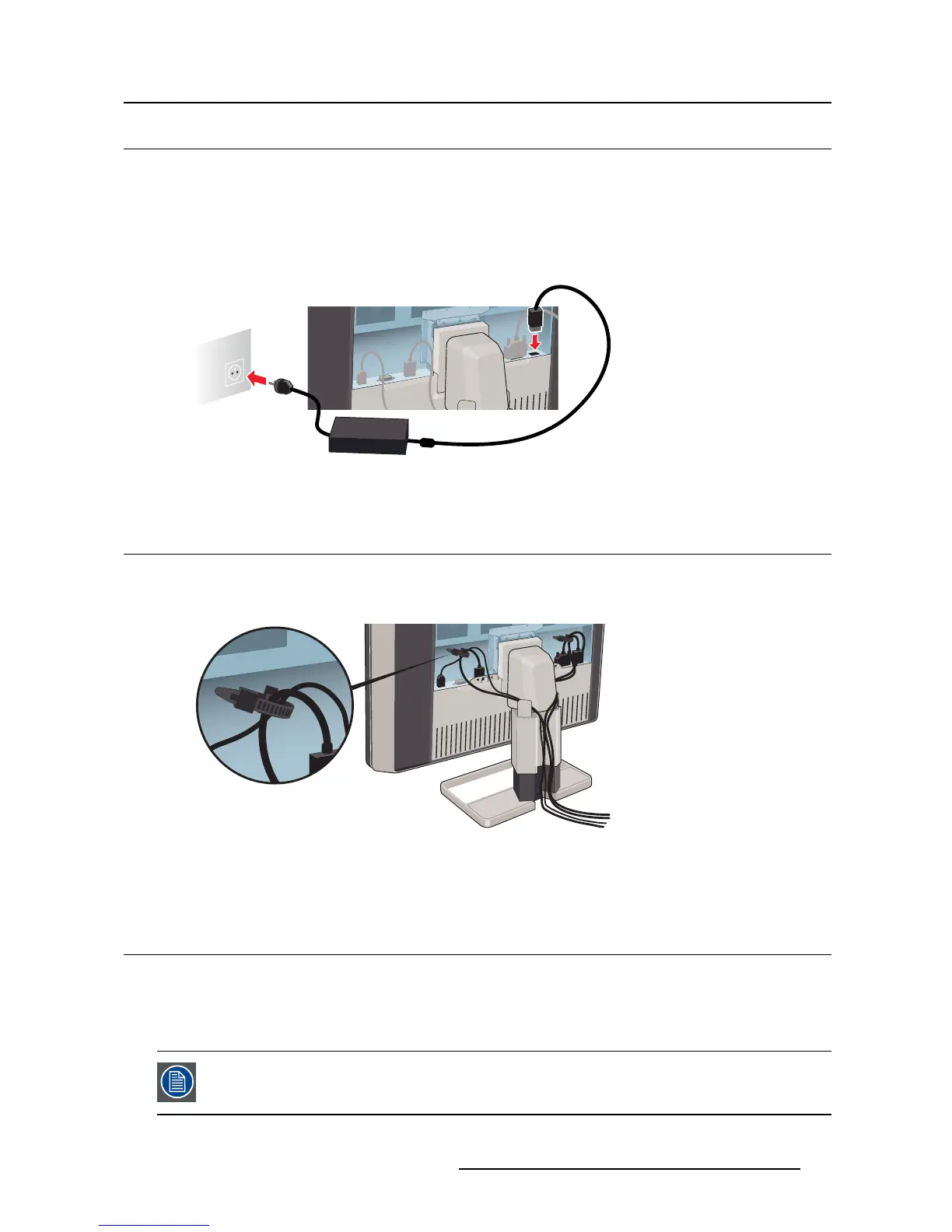

To connect the power cable to the display:
1. Connect the supplied external DC power supply to the +24 VDC power input of your Coronis Fusion
10MP display.
2. Plug the other end of the external DC power supply into a grounded power outlet by means of the proper
power cord delivered in the packaging.
3.6 Routin g the cables
To route the cables
1. Route all connected cables through the cable routing channel in the stand of your display.
Tip: The cable straps at the inside of the connector compartment allow you to fix the cables for better
shielding of the cables.
3.7 Re-attachin g t he cov e rs
To re-attach the display stand cover
1. Slide the display stand cover downward. You’ll hear a “click” sound of the cover’s clips when the display
stand cover is in position.
Pay attention that all cables stay in the cable channel while re-attaching the cover.
