113R5914712 /00 SP2K-C
3
6

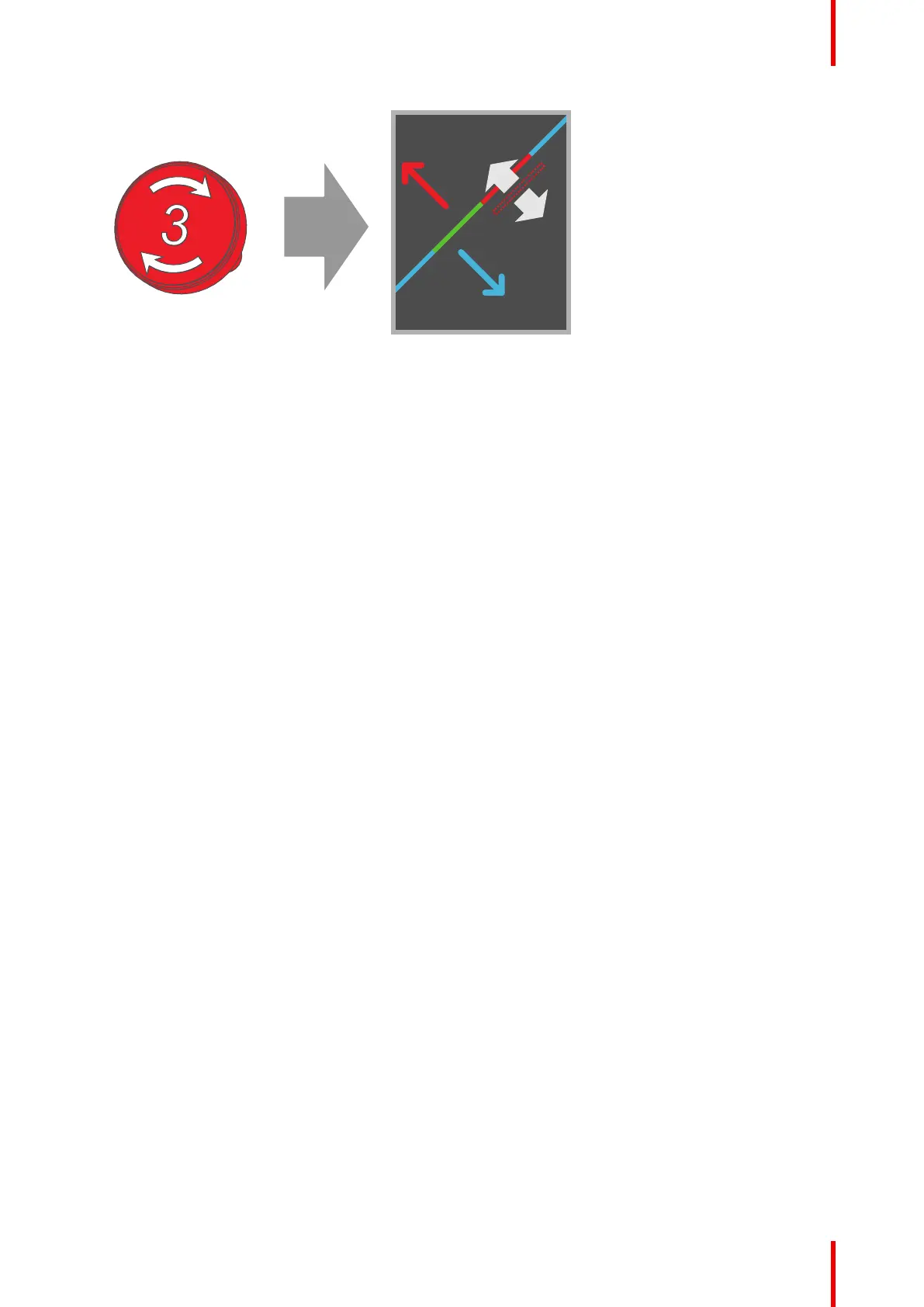

Image 10–11 Clockwise turning will move line upwards.
4. Repeat go to step 2 and go to step 3 until the red pattern in the lower left and upper right of the projected
image coincide.
5. Repeat from go to step 1 until the red pattern in the center, the lower left and the upper right of the
projected image coincide.
Convergence
