R5914712 /00 SP2K-C128
12.5 Removal of the top cover
Required tools
Torx screwdriver T20
How to remove
1. Remove the four screws of the top cover. Use a T20 Torx screwdriver.
2. Lift the top cover up and remove it.

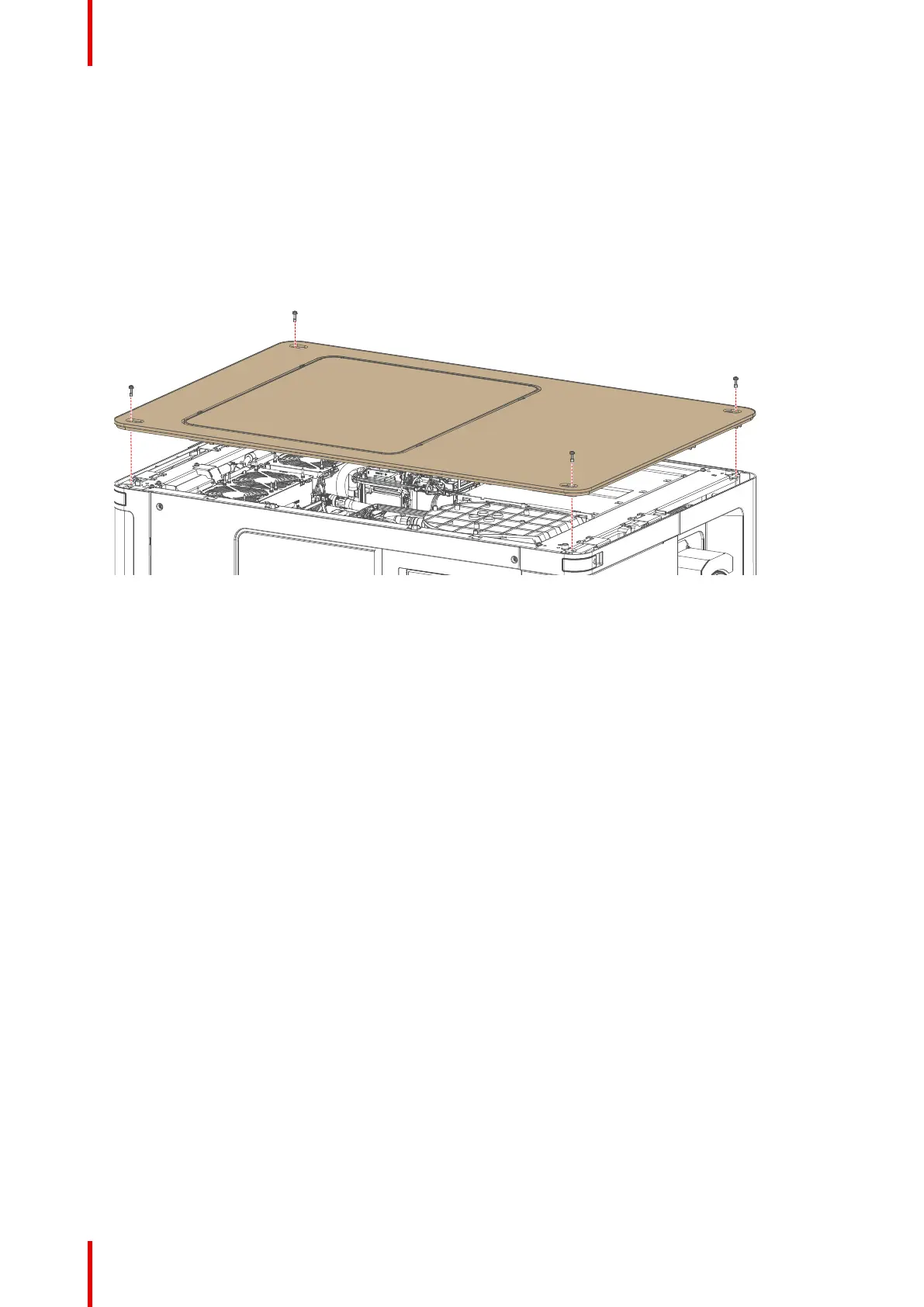

Image 12–7 Removing the top cover
Projector covers
