115R5914712 /00 SP2K-C

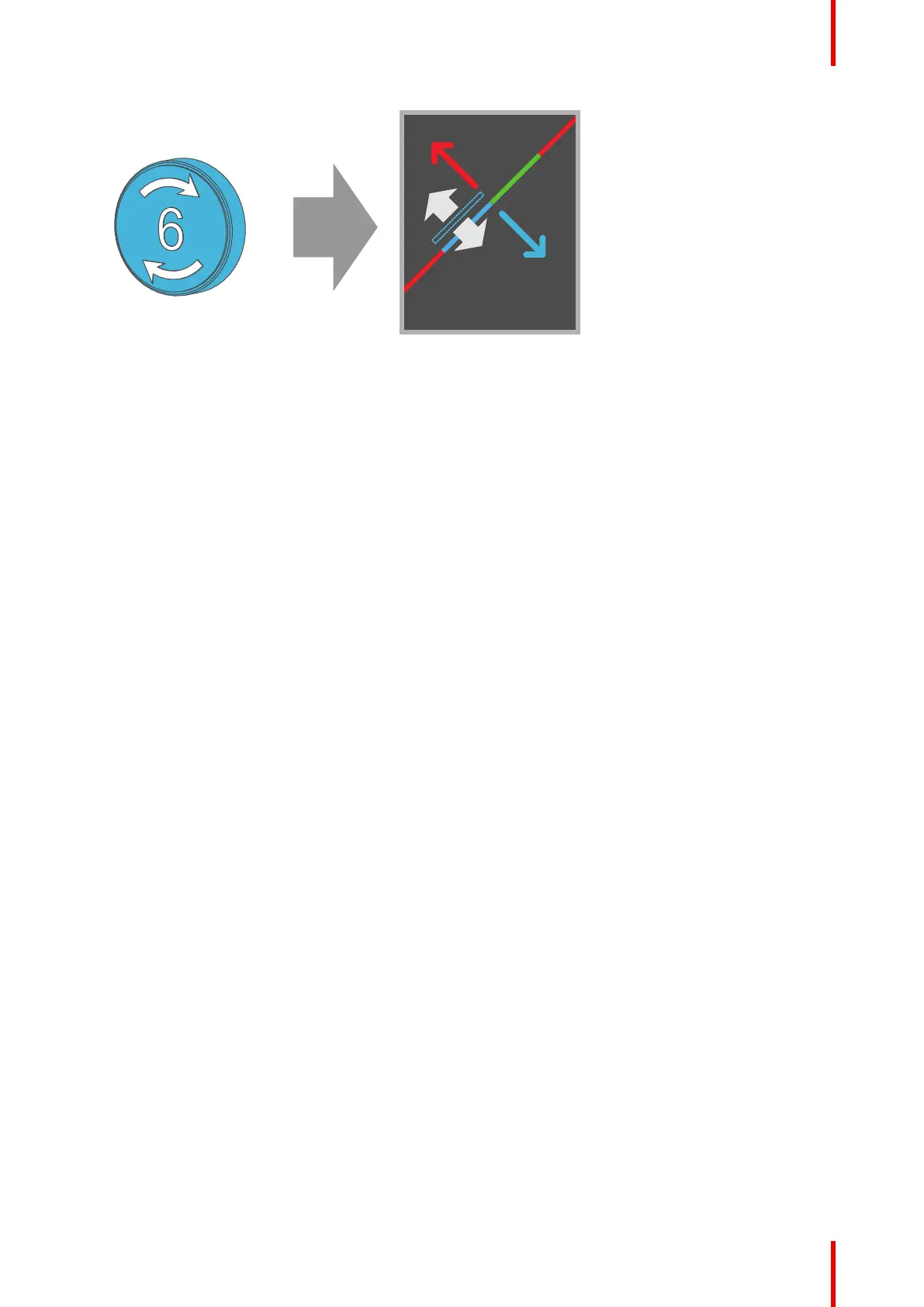

Image 10–14 Clockwise turning will move the line upwards.
4. Repeat go to step 2 and go to step 3 until the blue pattern in the lower left and upper right of the
projected image coincide.
5. Repeat from go to step 1 until the blue pattern in the center, the lower left and the upper right of the
projected image coincide.
6. Close the sealed compartment and reinstall all covers of the projector.
Convergence
