51R5906112 /15 UDX

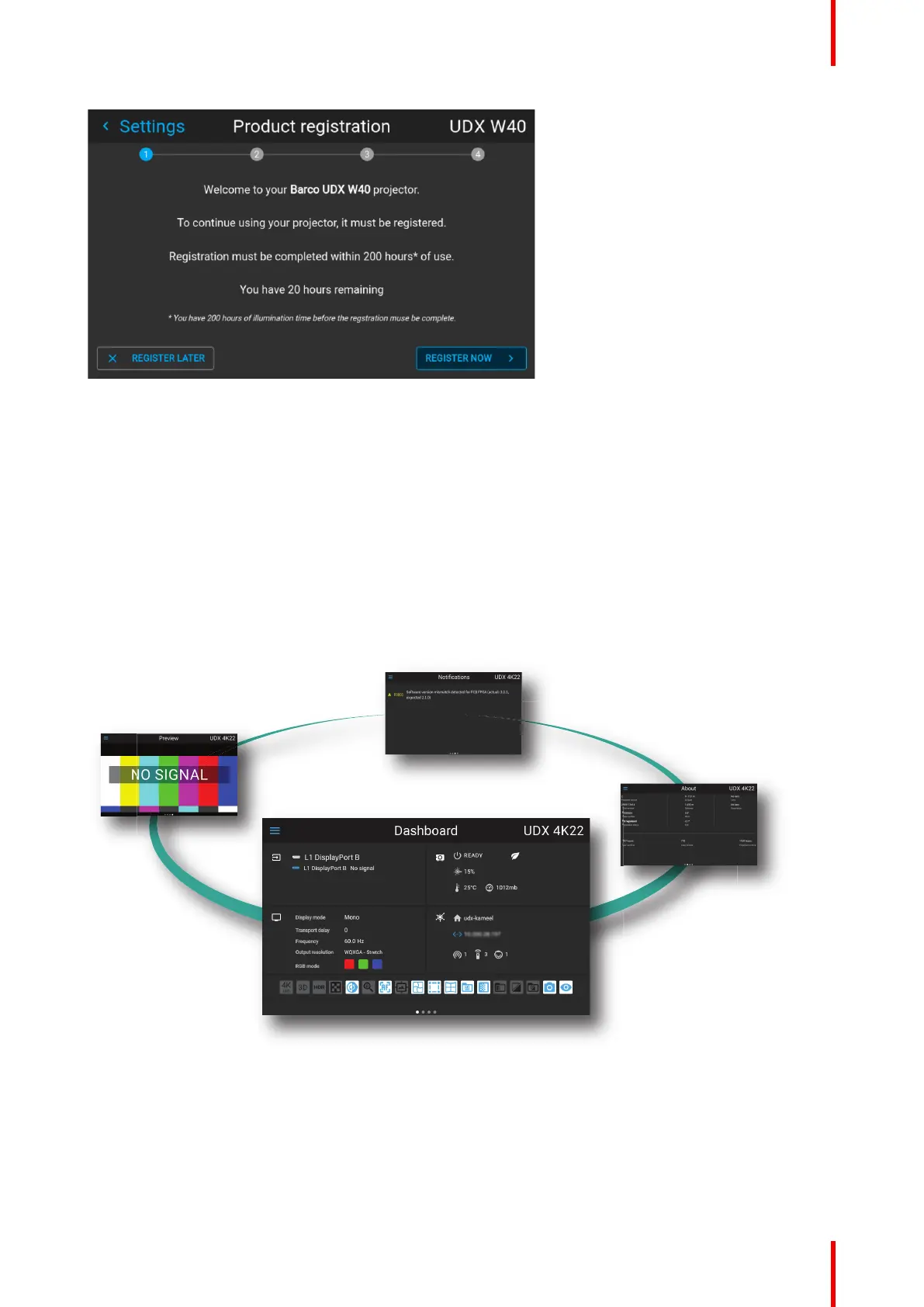

Image 5–2 Example of the Product registration form
GUI Status Screens
While the projector menu is not active, or the projector is Ready or Standby mode, the Status screens remain
visible. These screens give an overview of the state of the projector and can be navigated through using the
left and right arrow keys, or by swiping the screen left or right. The status screens are the following:
Dashboard: The main overview. This screen displays all the chosen options on the projector (chosen
source, blending/masking, display mode, etc).
About: General info about the projector. This includes serial number, software version, mounted lens and
light source runtime. It also includes altitude, and the pitch and roll tilt angles.
Notifications: The error and/or warning messages that are currently active. If no messages are active, this
list will be empty.
Preview: A preview pane of the projected image. If no image is being projected, a test image is displayed
instead.
Image 5–3 Example of a Dashboard status screen
GUI Main Menu overview
The projector on-screen display (OSD) is the primary user interface (UI). From here, you can review and
adjust all projector and display settings.
The OSD interface uses buttons to display the main menu. Each main menu contains submenus.
GUI Introduction

Table of Contents
