R5906112 /15 UDX92

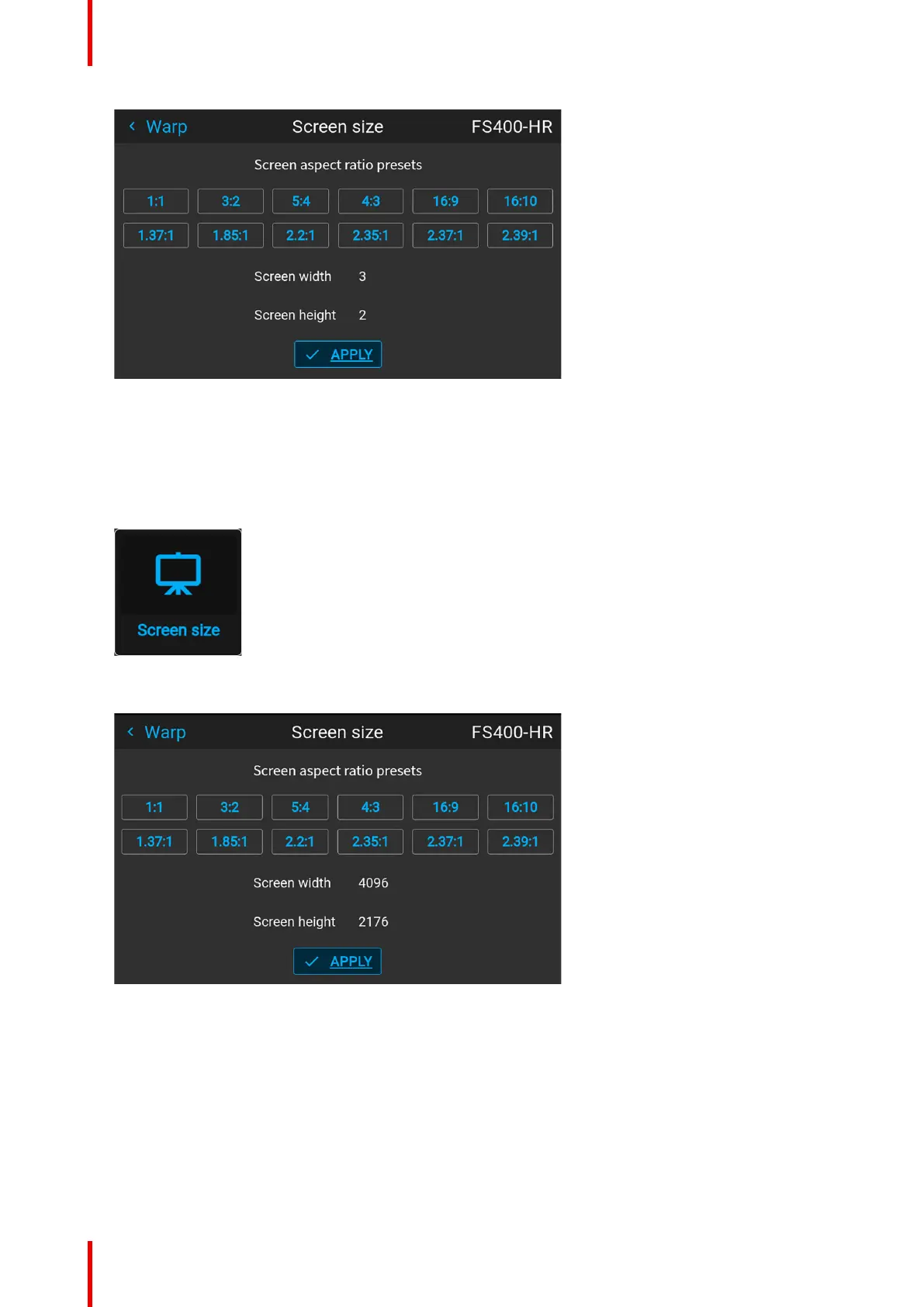

Image 8–32 Example of the screen size menu, with preset “3:2” selected.
The selected ratio is filled out next to Screen width and Screen height.
3. Click Apply.
How to adjust the image with pixels?
1. In the main menu, select Installation → Warp → Screen Size.
Image 8–33 Warp menu, screen size
The Screen Size menu is displayed.
Image 8–34 Example of the screen size menu
2. Select either Screen width or Screen height.
3. Set the new value to shrink either the width or height of the warp outline so that the outline is equal with
the active source.
GUI – Installation
