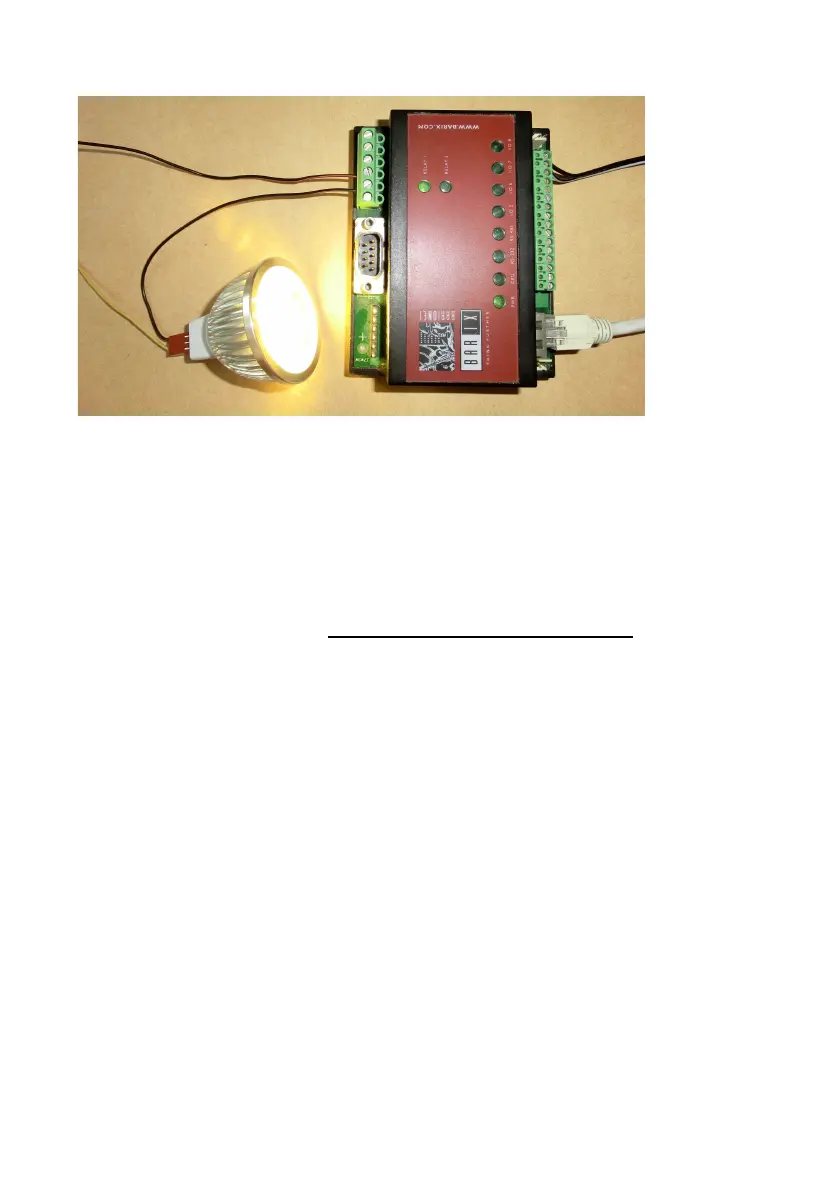

The wiring to connect your electrical device to the Barionet relay is pretty
simple. Your electrical device has typically two wires ( + and - ). Simple
spoken you have to cut through one of these two wires in the middle and
connect these two ends to the relay, one end to Common (pin 4 of J3) and
the other end to NO (pin 5 of J3) or NC. But before you do that make sure
your complete equipment is not powered during the installation!
Over the homepage or the control interface the relays can be switched, the
relay status LED will go on when switched ON.
2.4 How to use a digital output ?
The digital outputs of the Barionet100 must be used without or only with a
very very low load, otherwise please use a relay! The digital outputs should
be used for signaling only and not to switch (turn on/off) any devices, else it
can destroy the digital output of the Barionet100.
