BARIX Barionet - 5.1 Wiring Extension Units

5.1 Wiring

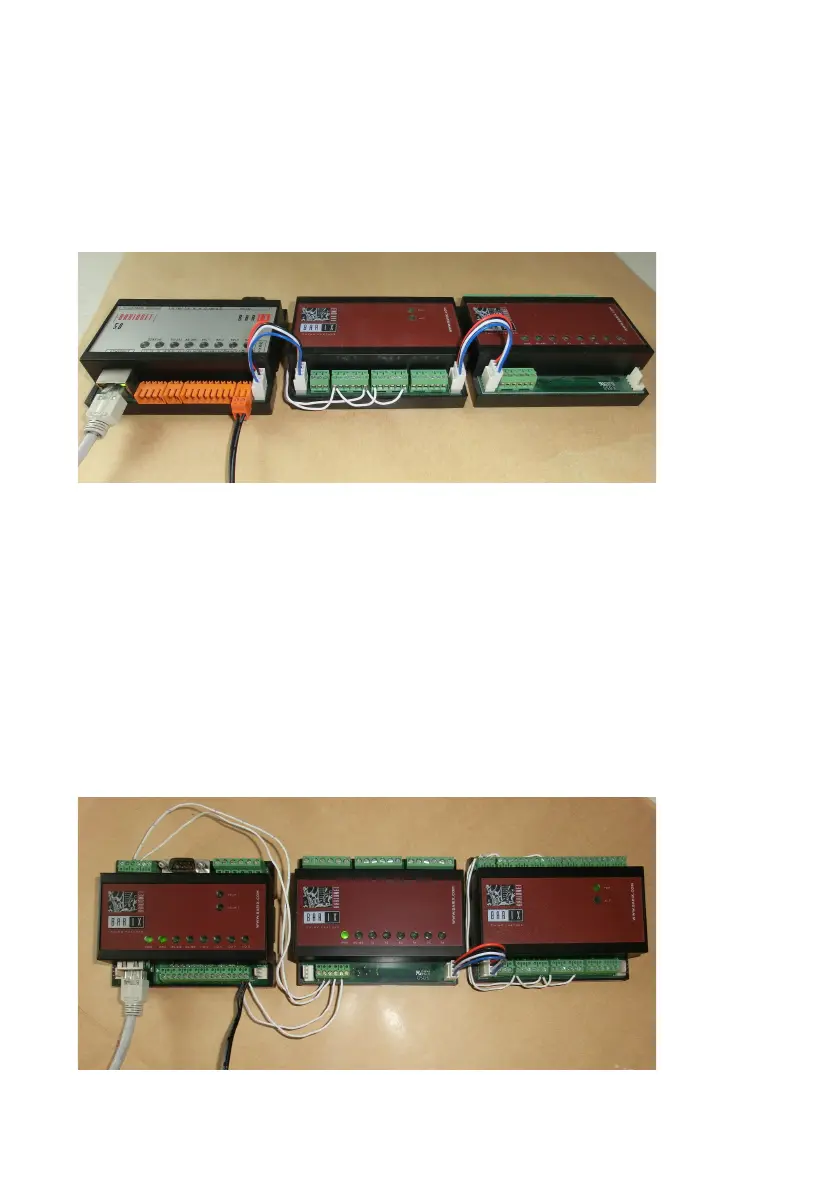

5.1.1 Barionet50
For the Barionet50 use simply the supplied 4-pin extension cable.
When you will connect more than one extension unit then connect it to the
previous extension unit also over an additional 4-pin extension cable. The 4-
pin cable provides power and also the RS485 connection to the extensions.
5.1.2 Barionet100
To connect the first extension unit with the Barionet100 wiring in the following
way:
