6.2 Modbus Scanner from Chipkin Automation
Systems
With this application it´s possible to read/write Modbus registers on the
Barionet.

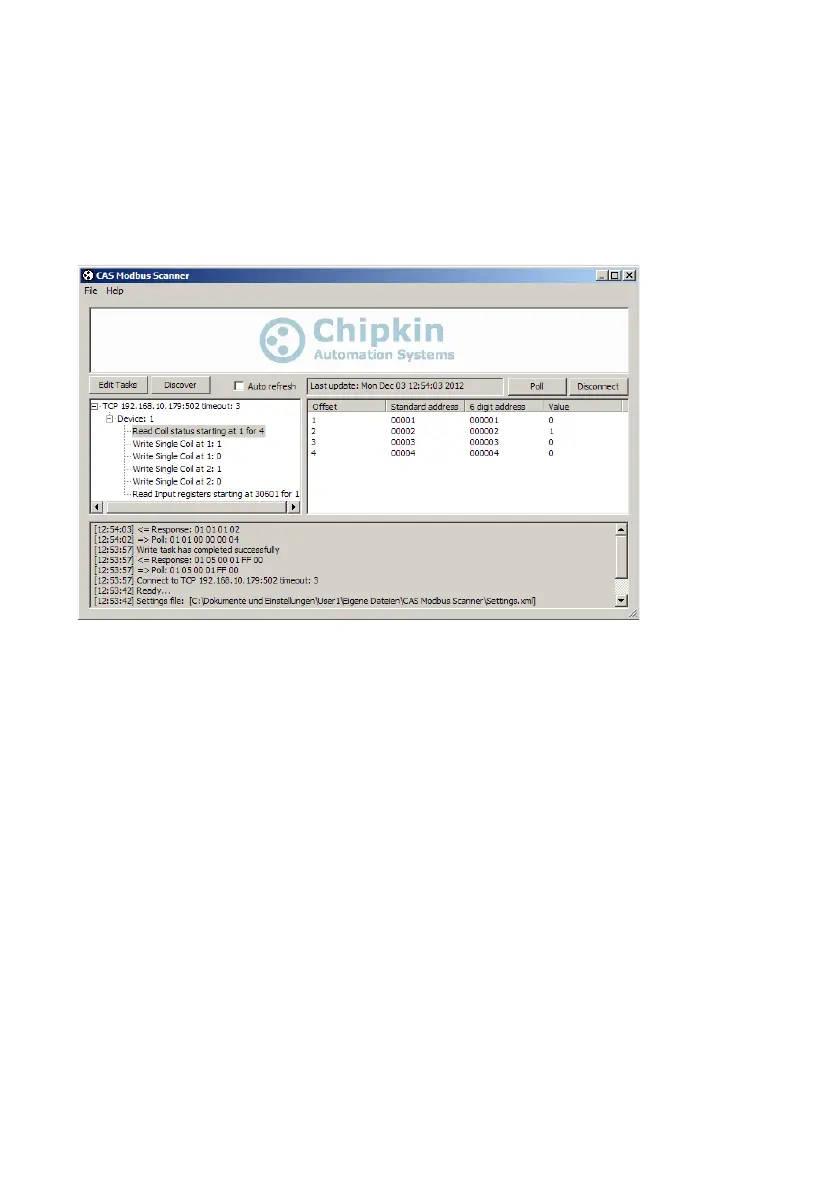

On the previous screenshot on the left side are shown the commands to read
/ write the registers for the Barionet relays. On the right side is the result of
the polled read command shown (shows relay 2 is active).
How to configure it with the Chipkin Automation software:
Following are 3 configuration examples :
- one to read the status of all 4 relays outputs
- one to write/set a relay output
- one to read a temperature value
But before the Read/write request can be defined a connection and a device
number/address must be defined. When using Modbus/TCP then the Device
address is not important, so it can be set to any address.
