2.1.1 Connecting the input directly to input ground

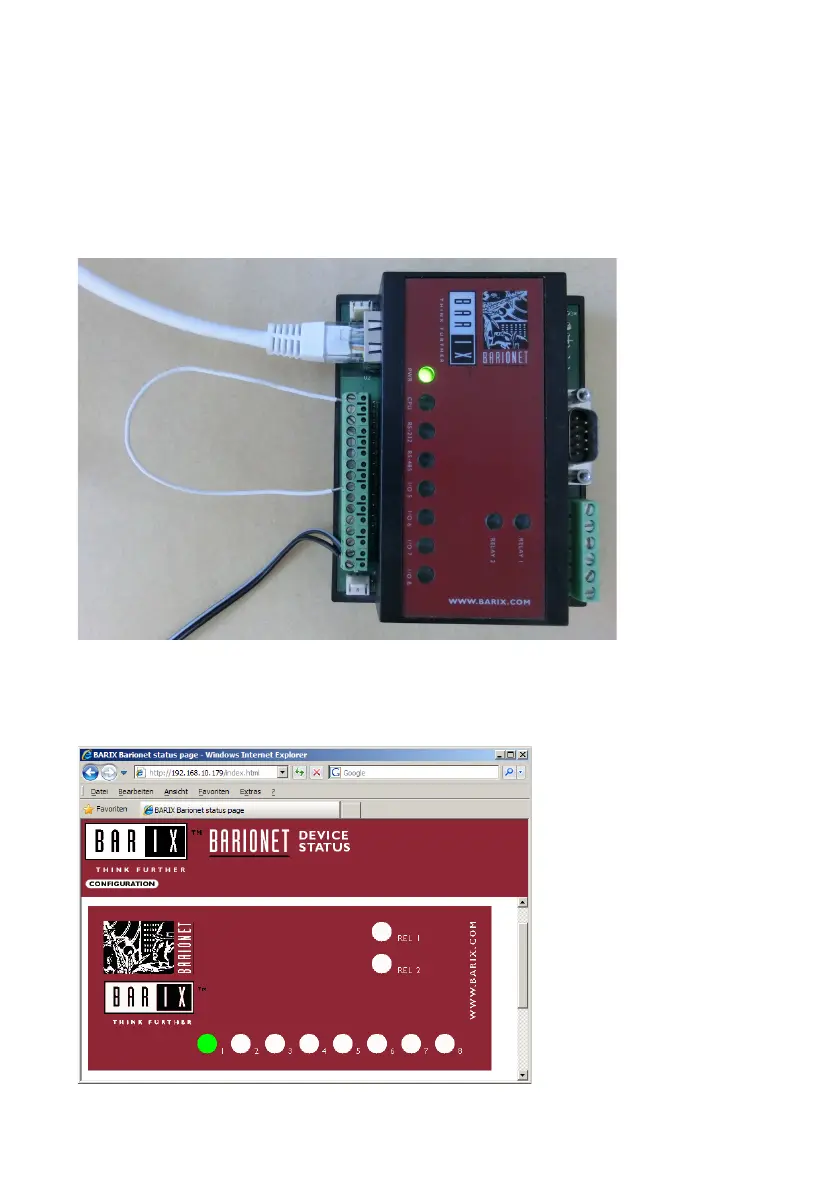

A digital input can be connected directly to the input ground. So the inputs
can be easily tested. For that connect any digital input to the digital ground.
On the Barionet 50 connect pin 1 of the J7 connector with pin 1 of J8.
On the Barionet100 connect e.g. Pin1 and Pin9 of the J6 connector (see
picture above).
As result you will see a
color change for Input
1 on the Barionet´s
homepage.
