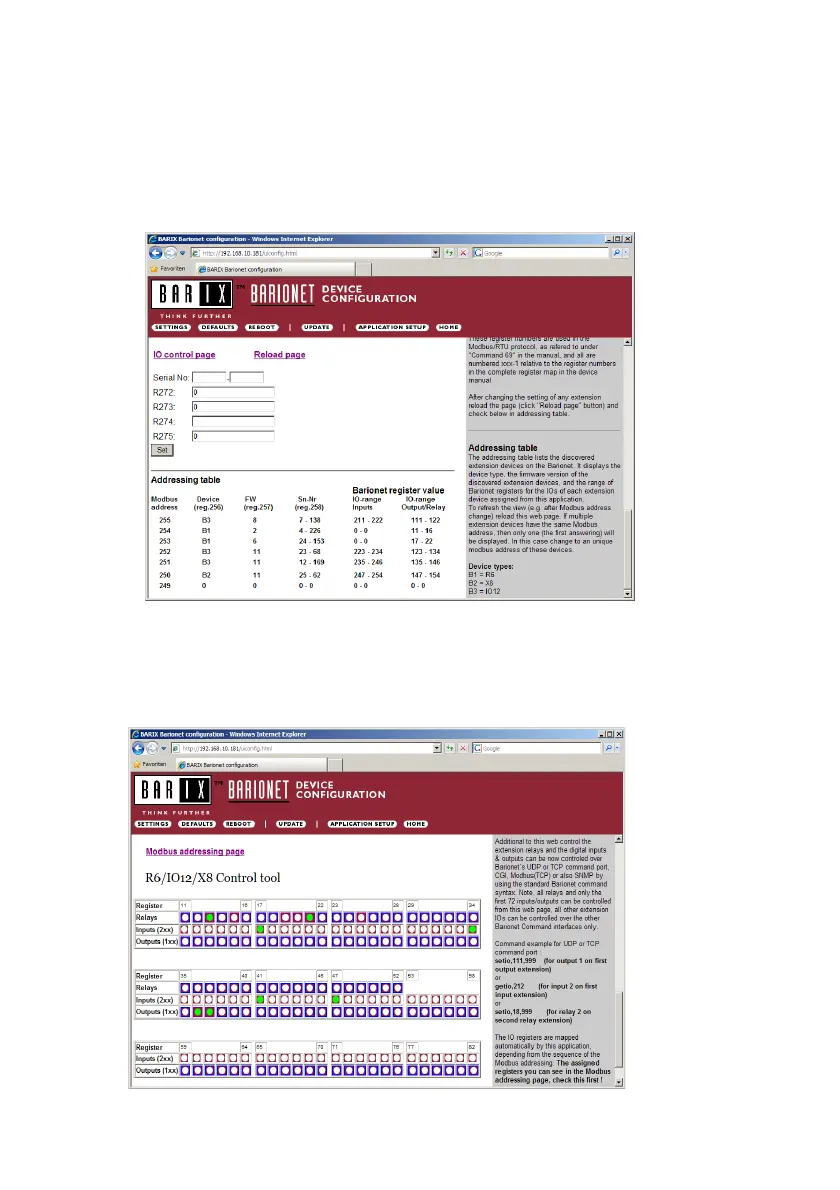

When all devices have an unique Modbus address then click the “Reload
page” link and check the “Addressing table”. In the “Addressing table” you
can see the Modbus address, the device type and the assigned Barionet
registers for the IOs of each extension device.
These registers can be controlled now from all Barionet control interfaces
(TCP, UDP, CGI, SNMP and Modbus/TCP) or from the “IO control page”.
BARIX AG | 17. Oct. 2013 | Barionet Hands-on Training Guide | Page 29/38
