AW00118508000 Specifications, Requirements, and Precautions
Basler racer Camera Link 13
1.7.2 Sensor Line Location
The location of the sensor line in the mono cameras is shown in Fig. 4. The sensor lines of different
camera models vary in length, depending on maximum resolution and pixel size. As an example, a
sensor line of maximum length, as applies to 6k and 12k cameras, is shown in Fig. 4.
A marker hole in the camera’s front indicates the side of the camera where the pixel numbering for
each sensor line starts. The first pixel is numbered one.

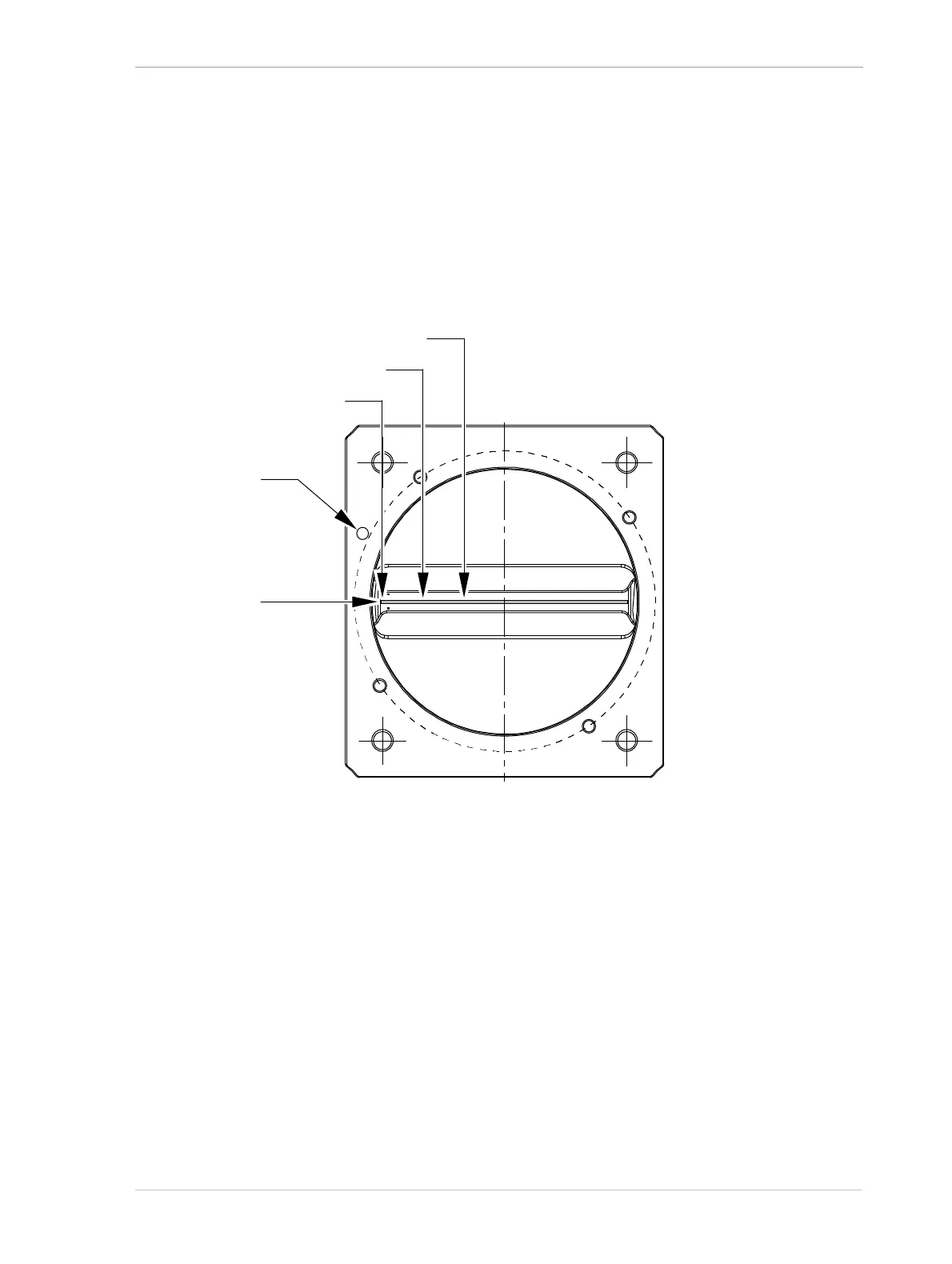

Fig. 4: Mono Sensor Line Location with Approximate Starting Points (Pixel 1) for Pixel Numbering
Not to Scale
Marker Hole
Pixel 1 for 2k Cameras
Sensor Line
Pixel 1 for 4k and 8k Cameras
Pixel 1 for 6k and 12k Cameras
