4.10 Starting System
4.10.1 Disassembly, Inspection, Repair, and Assembly of Starter
4.10.1.1 Exploded View of Starter

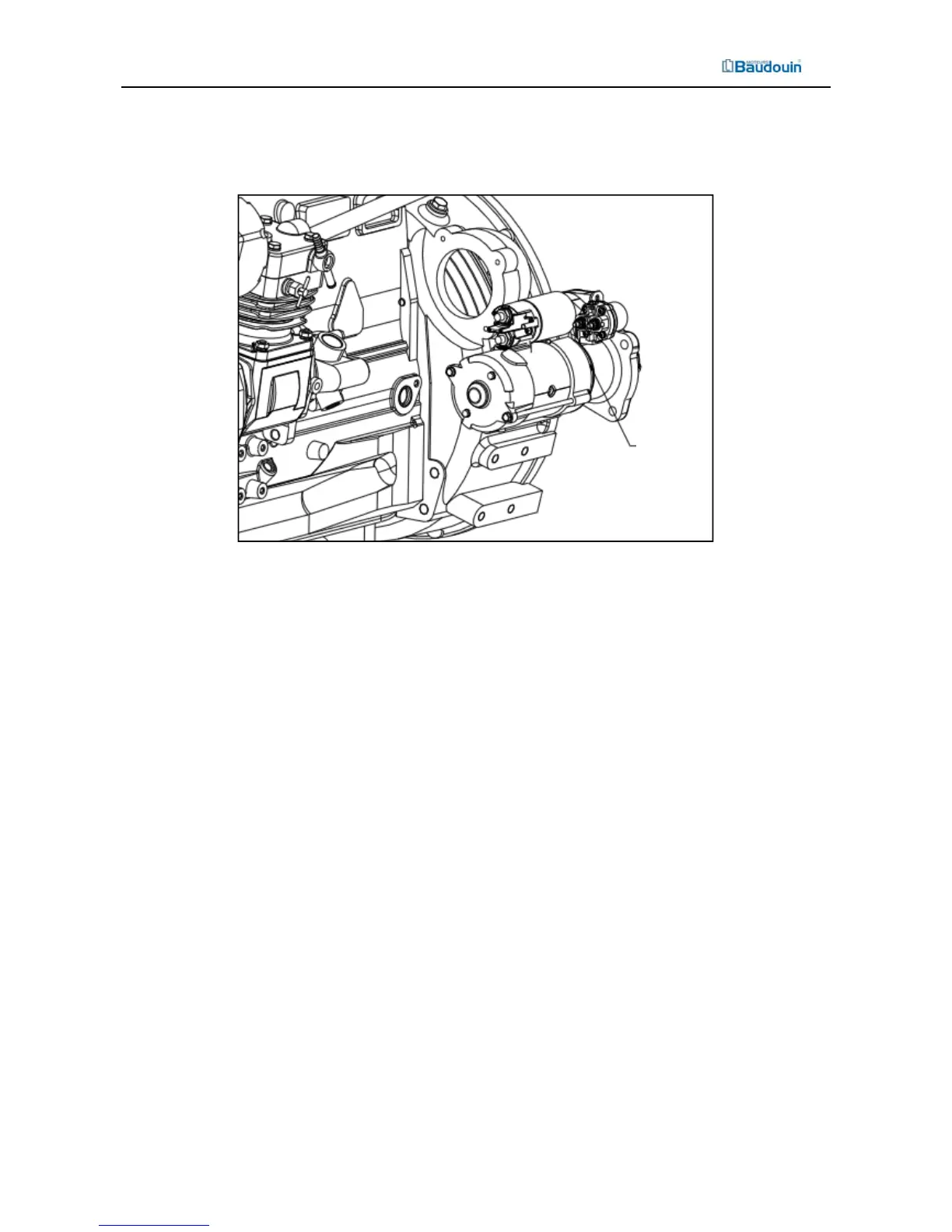

Figure 4-71 Exploded View of Starter
4.10.1.2 Starting System Disassembly Procedures
①Disassemble the hexagon bolts and spring washers.
②Hold the starter motor securely by two hands and take it out along the rotation axis of starter
motor gear.
4.10.1.3 Inspection and Maintenance of Starter
Check the gear teeth of the starter for damage. If any, replace the starter.
4.10.1.4 Starting System Assembly Procedures
The assembly procedures are in the reverse order of the disassembly procedures.
