Maintenance Manual of 4M11 Series Diesel Engine For Land Power Generators
42
4.2.5 Disassembly, Inspection, Repair, and Assembly of Lifting Ring

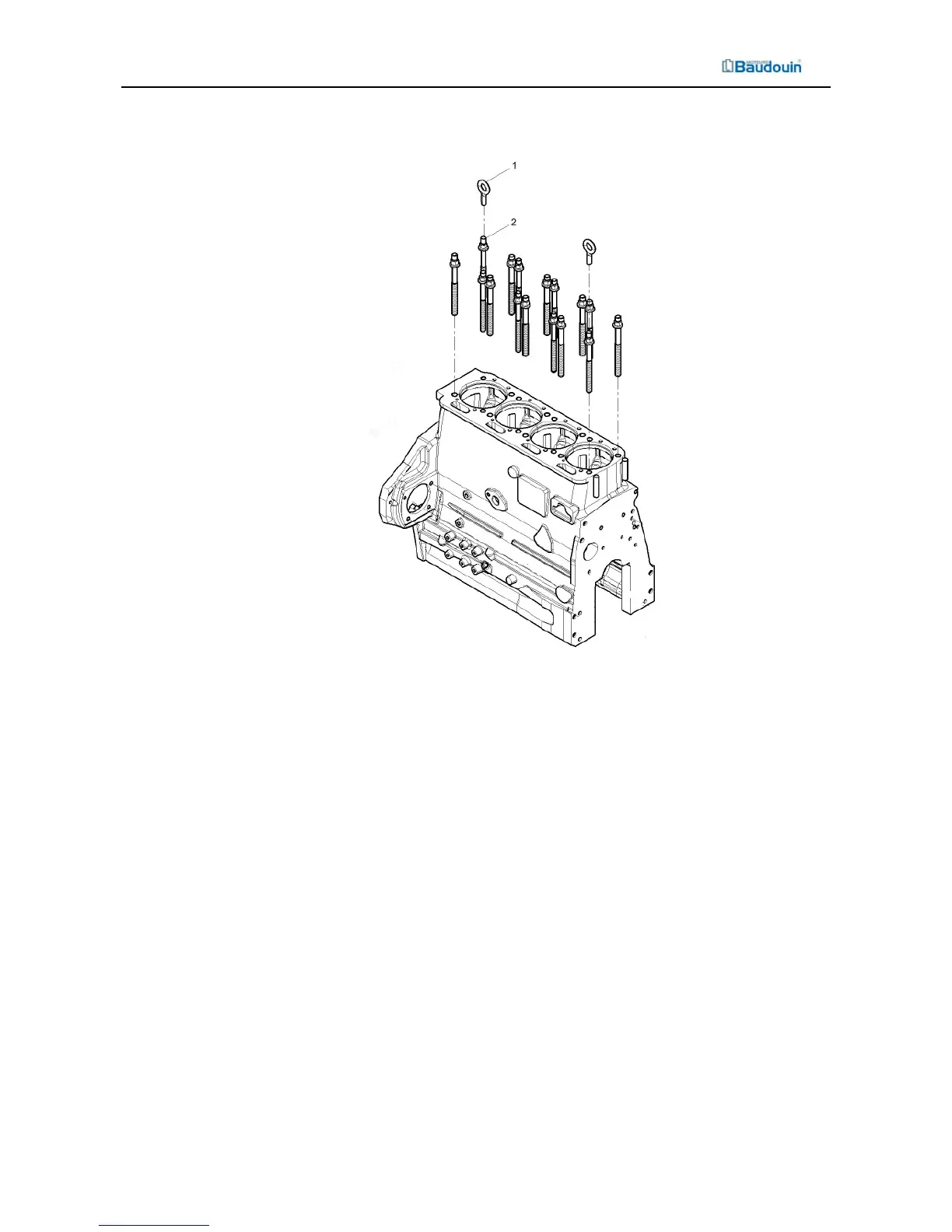

4.2.5.1 Exploded View for Assembly of Lifting Ring
1- Lifting ring
2- Cylinder head bolt
Figure 4-8 Exploded View for Assembly of Lifting Ring
4.2.5.2 Lifting Ring DisassemblyProcedures
After disassembling the covering part of lifting eye bolts, loosen and disassemble the
lifting eye bolts.
4.2.5.3 Inspection and Maintenance of Lifting Ring
Check the external surface of lifting eye bolts and the threaded holes for presence of
cracking. If any, replace with new ones.
4.2.5.4 Lifting Ring Assembly Procedures
The assembly procedures are in the reverse order of the disassembly procedures.
