Maintenance Manual of 4M11 Series Diesel Engine For Land Power Generators
43
4.3 Engine Block Group
4.3.1 Disassembly, Inspection, Repair, and Assembly of Engine Body Combination
Group
4.3.1.1 Exploded View for Assembly of Engine Body Combination Group

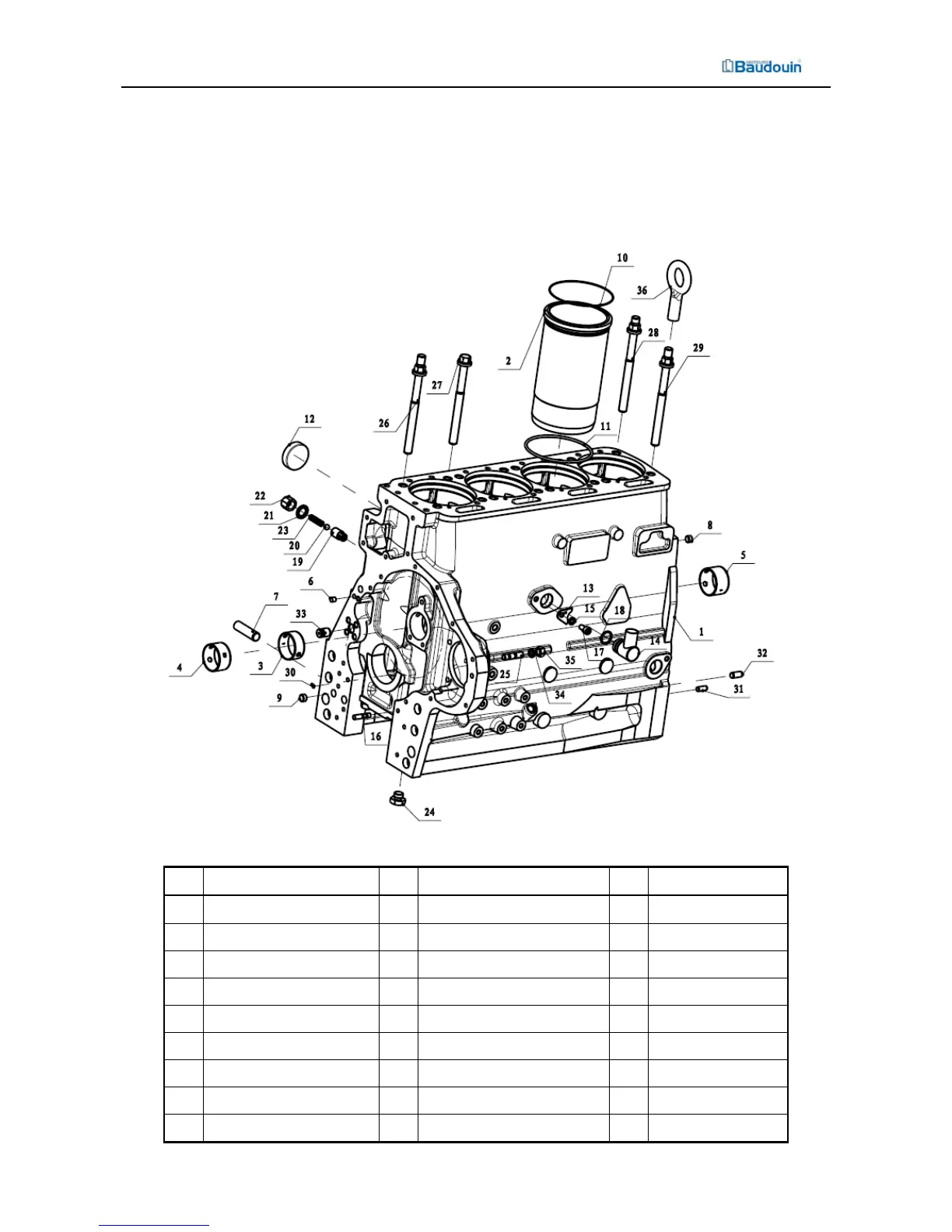

Figure 4-9 Exploded View for Assembly of Engine Body Combination Group
SN. Name SN. Name SN. Name
1 Engine block components 15 Spring washer 29 Cylinder head bolt
2 Cylinder liner 16 Stud bolt 30 Flexible parallel pin
3 Camshaft bushing 17 Hex socket-head cap screw 31 Parallel pin
4 Camshaft bushing 18 O-shaped seal ring 32 Parallel pin
5 Camshaft bushing 19 Screw 33 Shaft
6 Plug 20 Steel ball 34 Spring washer
7 Sleeve 21 Combination sealing washer 35 Type 2 hexagon nut
8 Plug 22 Cap nut 36 Lifting ring screw
9 Plug 23 Spring
