4.2 Cylinder Head Group
4.2.1 Disassembly and Assembly of Cylinder Head

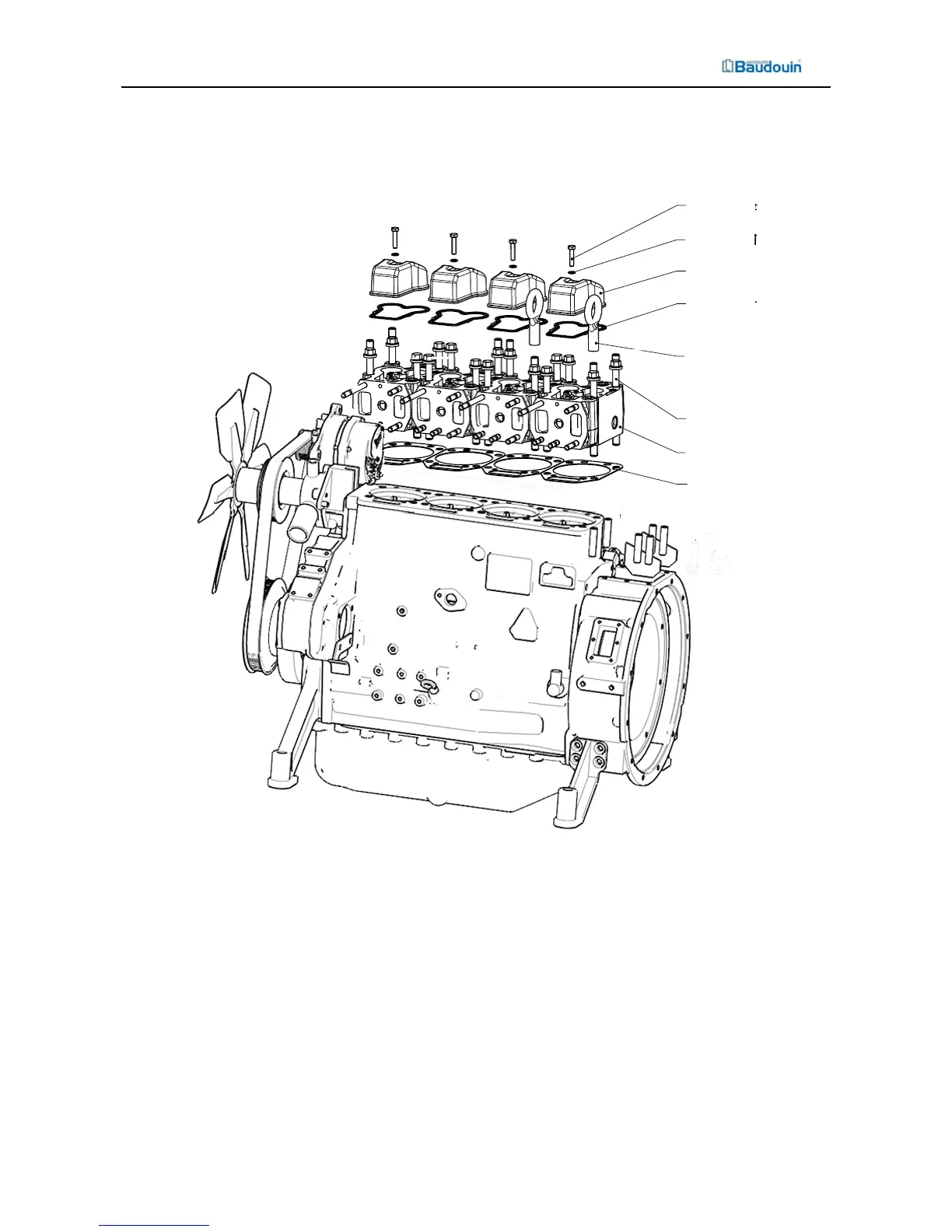

4.2.1.1 Exploded View for Assembly of Cylinder Head Group
Figure 4- 1 Exploded View for Assembly of Cylinder Head Group
4.2.1.2 Cylinder Head Group DisassemblyProcedures
1) Disassemble the turbocharger and connecting pipeline. Please refer to the
disassembling instructions of intake and exhaust system for details.
2) Disassemble the fuel return pipe of fuel injector and the high pressure fuel pipe. For
details, see the instructions for disassembly of fuel system.
3) Disassemble the exhaust pipe. For details, see the instructions for disassembly of
intake and exhaust system.
4) Disassemble the intake pipe. For details, see the instructions for disassembly of intake
and exhaust system.
Cylinder hea
