Maintenance Manual of 4M11 Series Diesel Engine For Land Power Generators
67

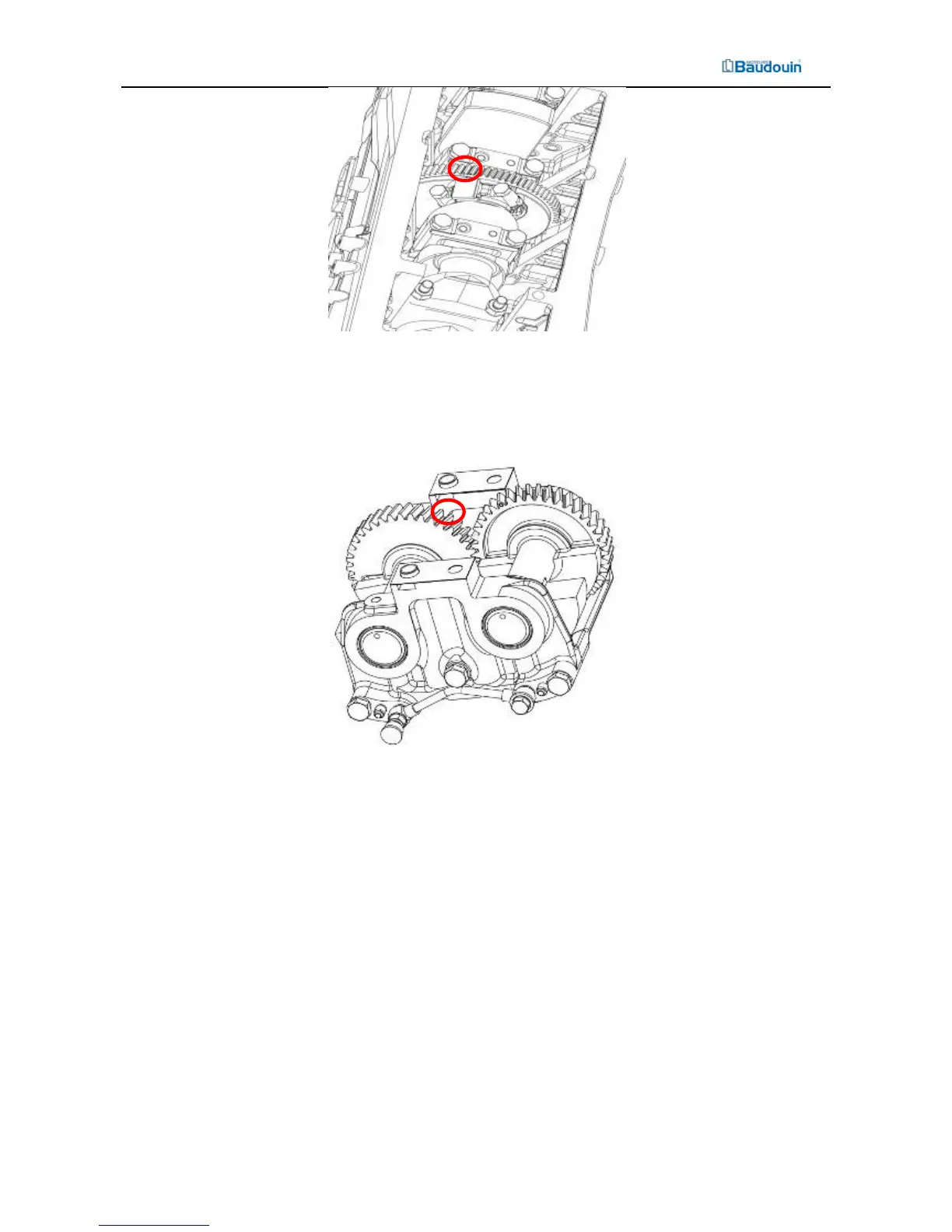

Figure 4-34 Diagram for Markings of Engine Double-Stage Balance Mechanism
Rotate the double-stage balance mechanism and mark the addendum and flank of 1st tooth at
zero-point position by a white marker pen, as shown in Figure 4-27.
Figure 4-35 Diagram for Markings of Engine Double-Stage Balance Mechanism
Place the double-stage balance mechanism, as shown in Figure 4-28, and keep the zero-point of
crankshaft ring gear engaged with zero-point of balance mechanism gear.
