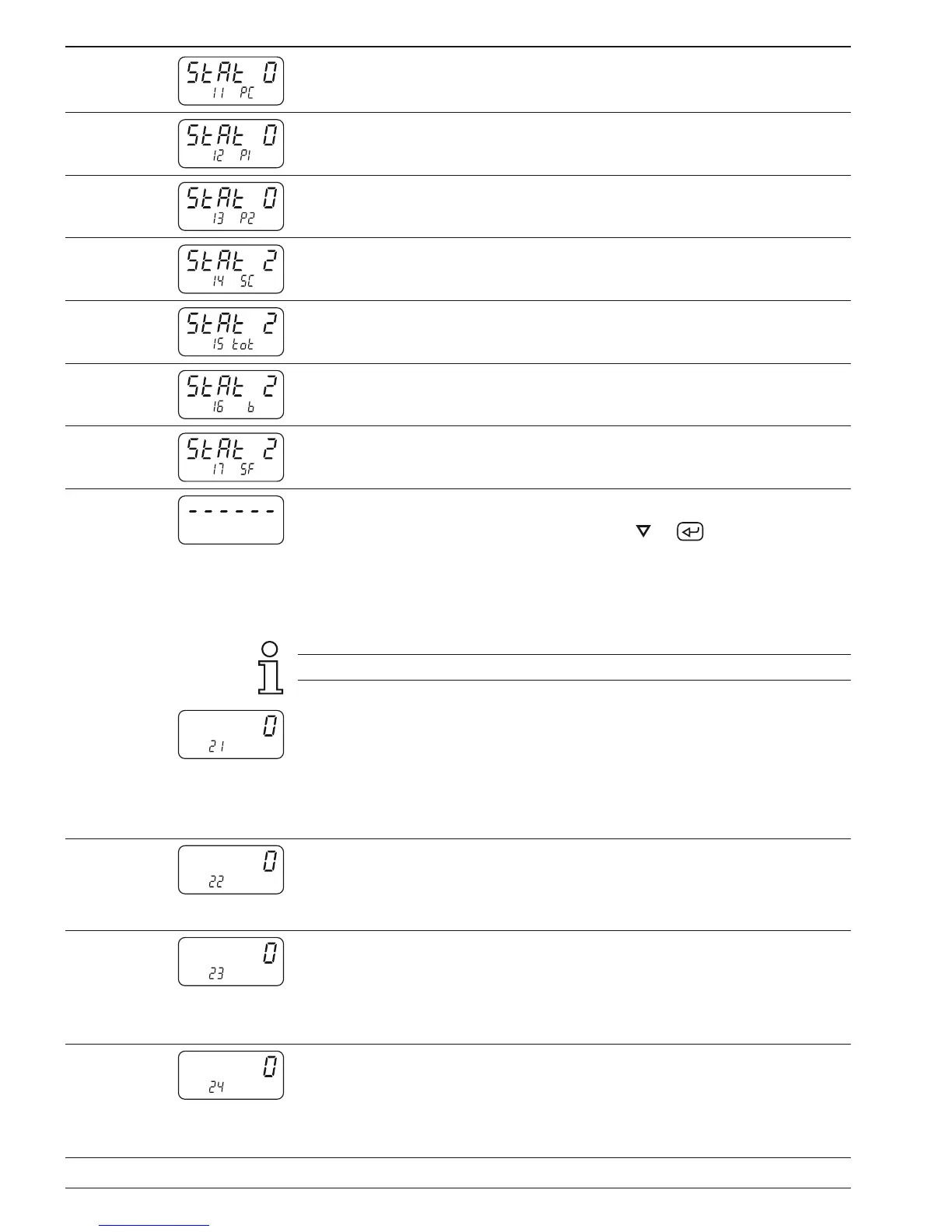

Line 11 PC - Main counter (current counter)
Line 12
P1 - Preset value 1
Line 13
P2 - Preset value 2
Line 14
SC - Start count
Line 15
tot - Totalizer
Line 16
b - Batch counter
Line 17
SF - Scaling factor
The dash line indicates the end of the second programming field.
Switch to programming field 3 by pushing or .
Programming field 3
All functions and values as well as interface parameters conditioned
by the machinery are programmed here.
Each factory setting is marked as such by *.
Line 21 Operating modes main counter
0 * Adding, final signal at P2, reset to SC
1 Subtracting, final signal at SC. If programming with automatic
reset (Line 23), it is effected at SC.
2 Subtracting, final signal at SC. If programming with automatic
reset (Line 23), it is effected at 0.
Line 22
Preset mode
0 * Main counter with 2 presets (Step preset)
1 Main counter with 2 presets (P1 then as trailing preset)
2 Main counter with presets P2, batch counter with preset P1
Line 23 Reset modes
0 * Main counter and batch counter with automatic reset
1 Main counter without, batch counter with automatic reset
2 Main counter with, batch counter without automatic reset
3 Main counter and batch counter without automatic reset
Line 24
Decimal point for PC, P1, P2, SC, tot
0 * No decimal point
1 00000.0
2 0000.00
3 000.000
