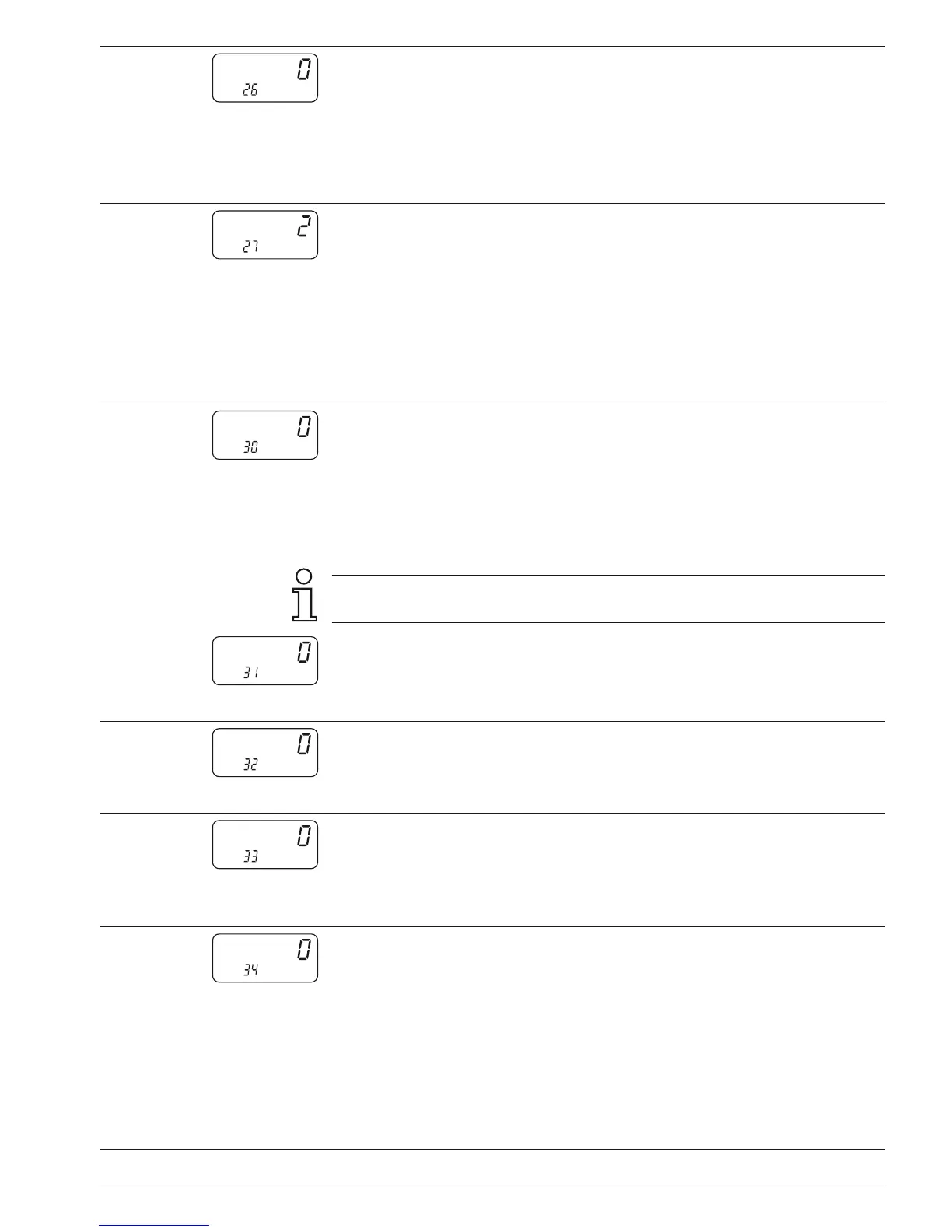

Line 26 Indication of measuring unit on display
0 * Without measuring unit
1 m
2 dm
3 cm
4 mm
5 L
Line 27
Assignment of lower display
The upper display always indicates the current value.
0 Without lower display
1 P1 - Preset
2 * P2 - Preset
3 SC - Start count
4 tot - Totalizer
5 b - Batch counter
6 SF - Scaling factor
Line 30
Counting mode main counter and totalizer
0 * Counting input track A, reversal track B
1 Subtraction track A adding and track B subtracting (A-B)
2 Totaling track A adding and track B adding (A+B)
3 Track A 90° track B single evaluation
4 Track A 90° track B double evaluation
5 Track A 90° track B quadruple evaluation
In case of the counting mode „track A 90° track B“, the frequency of
track A and B (Line 31 and 32) must be adjusted to 10 kHz.
Line 31
Frequency main counter track A
0 * 10 kHz
1 25 Hz
2 3 Hz
Line 32 Frequency main counter track B
0 * 10 kHz
1 25 Hz
2 3 Hz
Line 33
Input logic and operating thresholds of signal inputs
0 * PNP Operating threshold 6 V
1 NPN Operating threshold 6 V, or for Namur w/o ex. protection
2 PNP Operating threshold 3 V
3 NPN Operating threshold 3 V
Line 34
Function control input 1 (contact 9)
0 * PC - Main counter - Reset static
1 PC - Main counter - Reset edge-triggered
2 PC - Main counter - Stop
3 Hold
4 Programming disabled
5 Keylock
6 Print (principally, 30 ms minimum pulse duration)
7 Main counter-outputs ON
8 Main counter-outputs OFF
