Baxi ECOGEN 24/1.0 Installation & Servicing Instructions

page21
12.Aboilerdischargepumpisavailable,'MULTIFIT'partno.720648301.Thispumpwilldisposeofbothcondensate&hightemperaturewaterfromthereliefvalve.Ithasa
maximumheadof5metres.
Followtheinstructionssuppliedwiththepump.
13.CondensateDrainPipe'TraceHeating'Elementsareavailableinvariouslengths.'MULTIFIT'partnos.:
1metre 720644401
2metre 720664101
3metre 720664201
5metre 720664401*
*Wherethedrainisbetween3&5metresa5metrekitcanbeusedand"doubledback"uponitself.
14.Itispossibletofittheelementexternallyonthecondensatedrainorinternallyasdetailedintheinstructionsprovided.
15.Thefittingofa'TraceHeating'ElementisNOTasubstituteforcorrectinstallationofthecondensatedrain.
ALLrequirementsinthissectionmuststillbeadheredto.

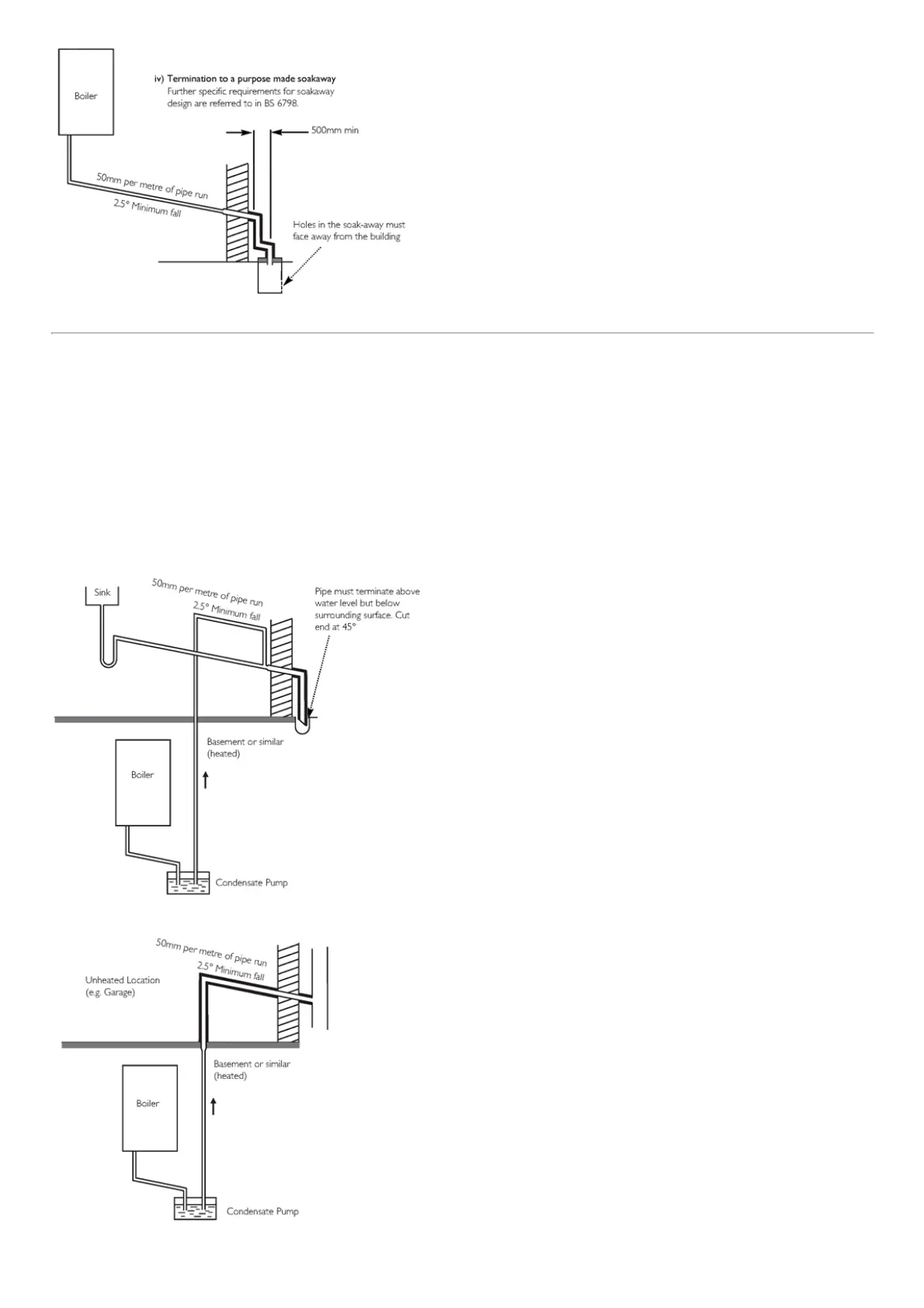

v)pumpedintoaninternaldischargebranch(e.g.sinkwaste)downstreamofthetrap
vi)pumpedintoanexternalsoil&ventpipe
vii)toadrainorgullywithextendedexternalrun&traceheating
