Baxi ECOGEN 24/1.0 Installation & Servicing Instructions



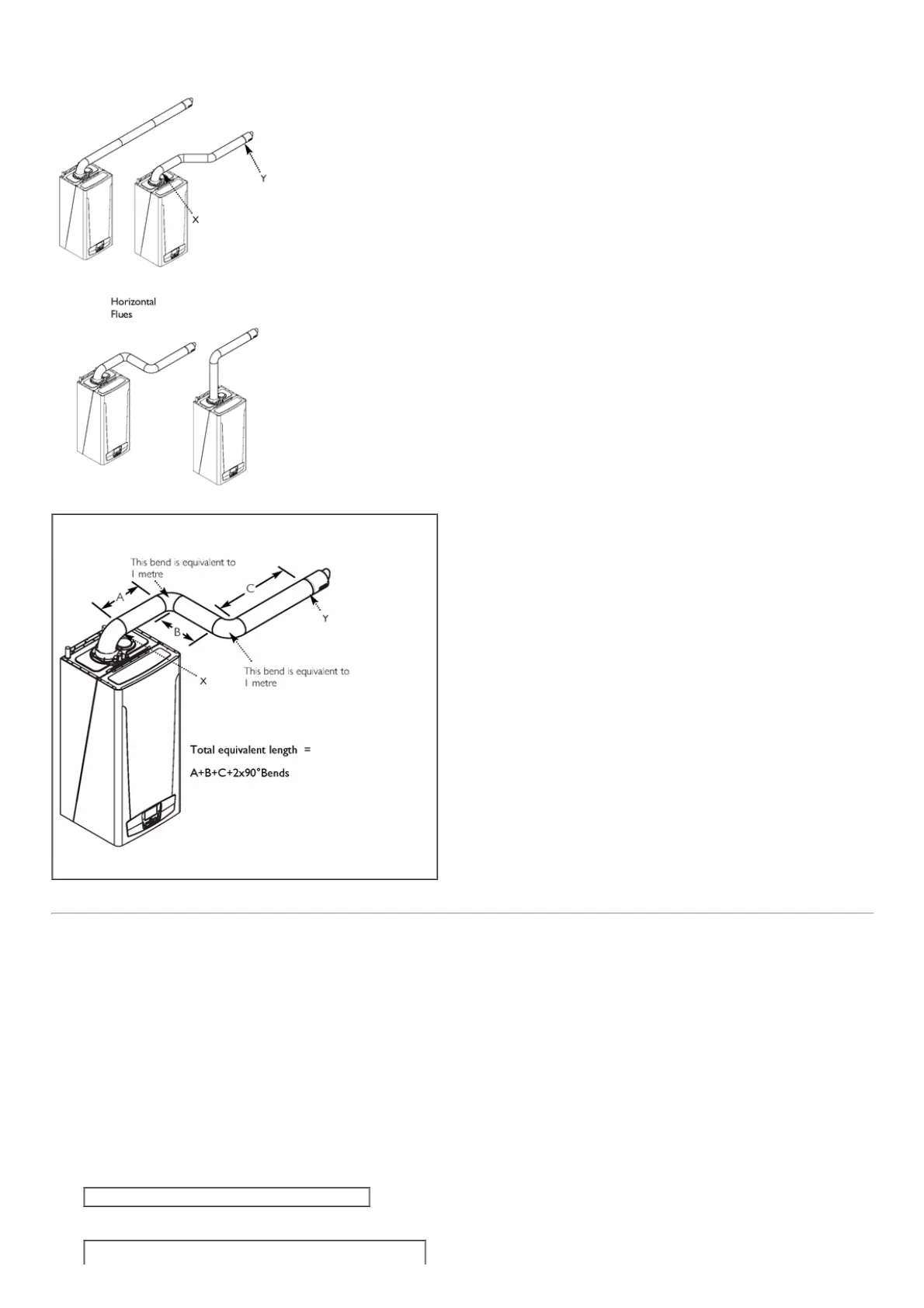

HorizontalFlues

NOTE:Horizontalfluepipesshouldalwaysbeinstalledwithatleast1.5°fallfrom
theterminaltoallowcondensatetorunbacktotheboiler.
Totalequivalentlength=A+B+C+2x90°Bends
page24
8.2Twin&VerticalFlueSystems
1.Maximumpermissibleequivalentfluelengthsare:
VerticalConcentric(60/100)  5metres
VerticalTwinPipe(80/80)  10metres
2.Anyadditional"inline"bendsinthefluesystemmustbetakenintoconsideration.
Theirequivalentlengthsare:
ConcentricPipes:  
 135°bend 0.5metres
 93°bend 1.0metres
TwinFluePipe  
 135°bend 0.25metres
 91.5°bend 0.50metres
Theelbowsuppliedwiththestandardhorizontaltelescopicfluekitisnotincludedinanyequivalentlengthcalculations
NOTE:FluelengthismeasuredfrompointXtoYasshown.

IMPORTANT:
