Baxi ECOGEN 24/1.0 Installation & Servicing Instructions

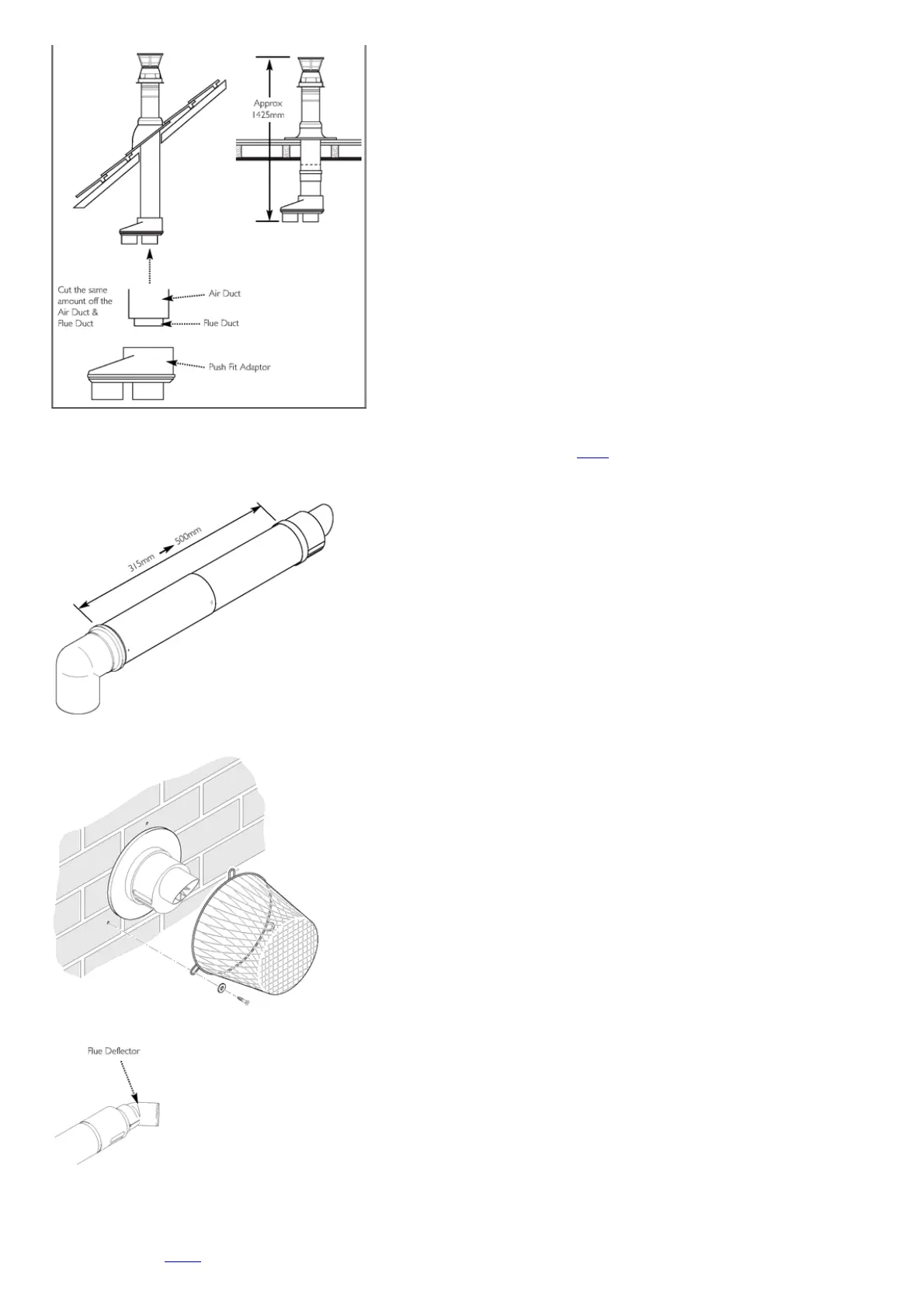

8.7FlueDimensions
Thestandardhorizontaltelescopicfluekitallowsforlengthsbetween315mmand500mmfromelbowtoterminal(Fig.19).
Themaximumpermissibleequivalenthorizontalfluelengthis:5metres
Fig.19
Fig.20
Fig.21
8.8FlueTrim
1.Therubberfluetrimsuppliedmaybefittedtoeithertheoutsidewallorontheinnerwallofinstallation.
8.9TerminalGuard(Fig.20)
