page41

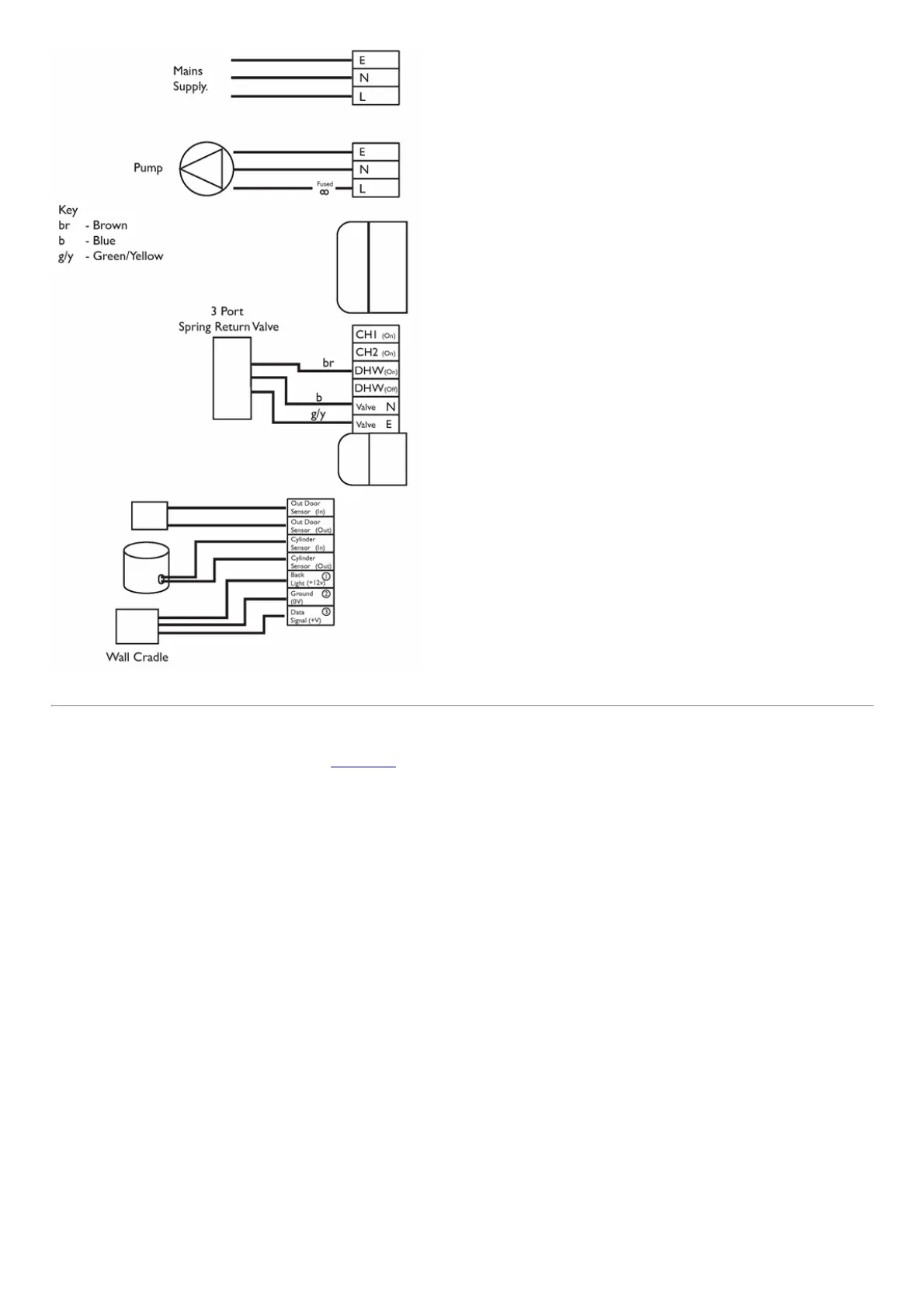

10.7WPlanwithDHWcylinderthermostat

1.TheapplianceMUSThaveapermanentLive/Neutral/Earthconnection.Thepumpmustbeconnectedtotheapplianceasshown.

2.Setparameter5700to'2'foroneheatingcircuitseesection11.3.k.

3.Therestportofthe3portvalveneedstobeconnectedtothecentralheatingcircuitsothatthevalveisdriventotheDHWposition.Itismostlikelythatthethreeport

valveonanexistingprimarycircuitwillhavetobeturnedround.

4.TheDHWsetpointontheTHINKControllermustbethesameasthethermostatsetpointonthecylinder.IfthisisnotdonetheDHWtemperaturemaynotbeachievedor

therecoverytimewillbeincreased.
