Baxi ECOGEN 24/1.0 Installation & Servicing Instructions

page40

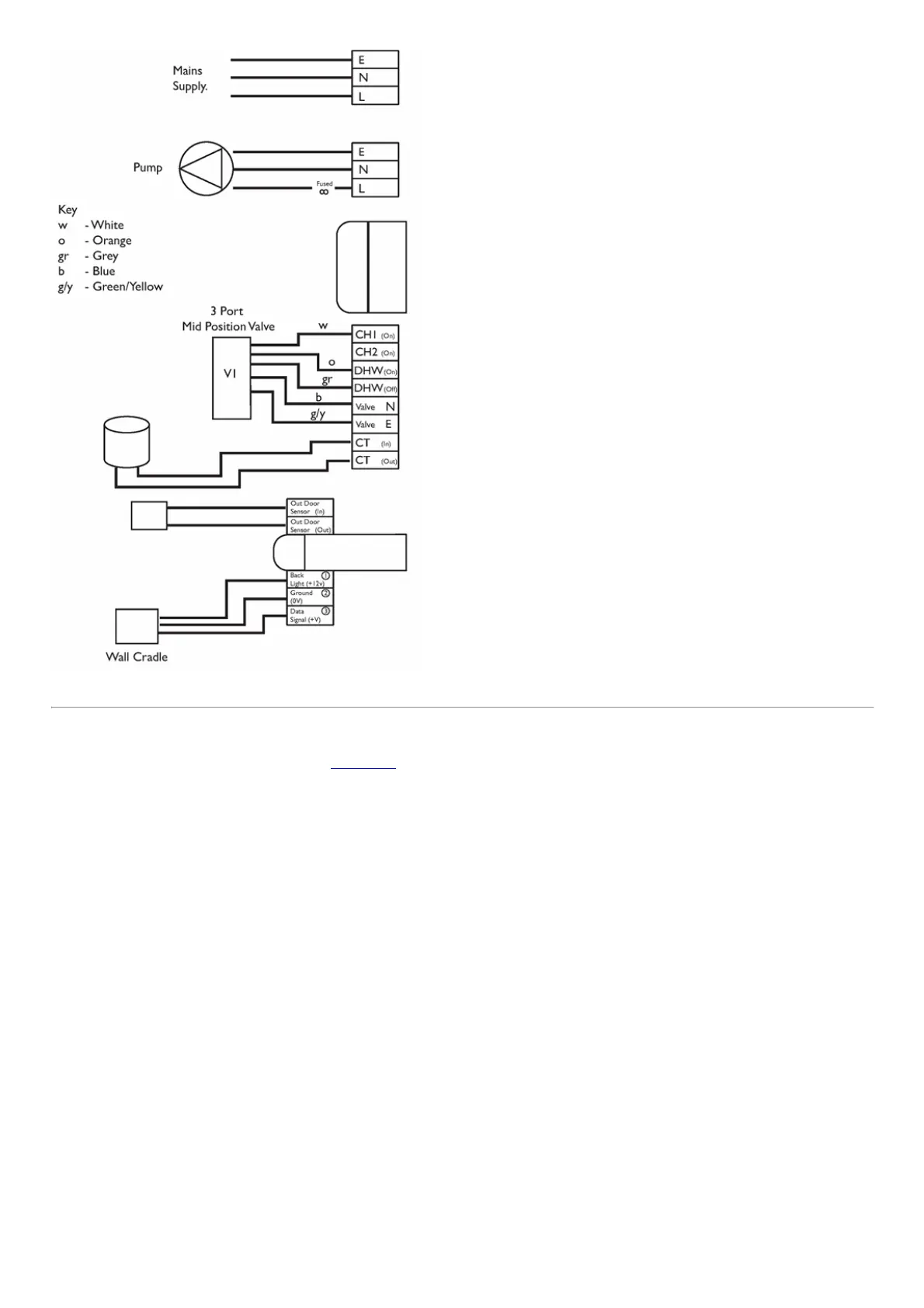

10.6WPlanwithDHWcylindersensor
1.TheapplianceMUSThaveapermanentLive/Neutral/Earthconnection.Thepumpmustbeconnectedtotheapplianceasshown.
2.Setparameter5700to'2'foroneheatingcircuitseesection11.3.k.
3.Therestportofthe3portvalveneedstobeconnectedtothecentralheatingcircuitsothatthevalveisdriventotheDHWposition.Itismostlikelythatthethreeport
valveonanexistingprimarycircuitwillhavetobeturnedround.
NOTE:ItisnotpossibletooperateasecondheatingcircuitwithaWPlansystem.
