Baxi ECOGEN 24/1.0 Installation & Servicing Instructions

page39

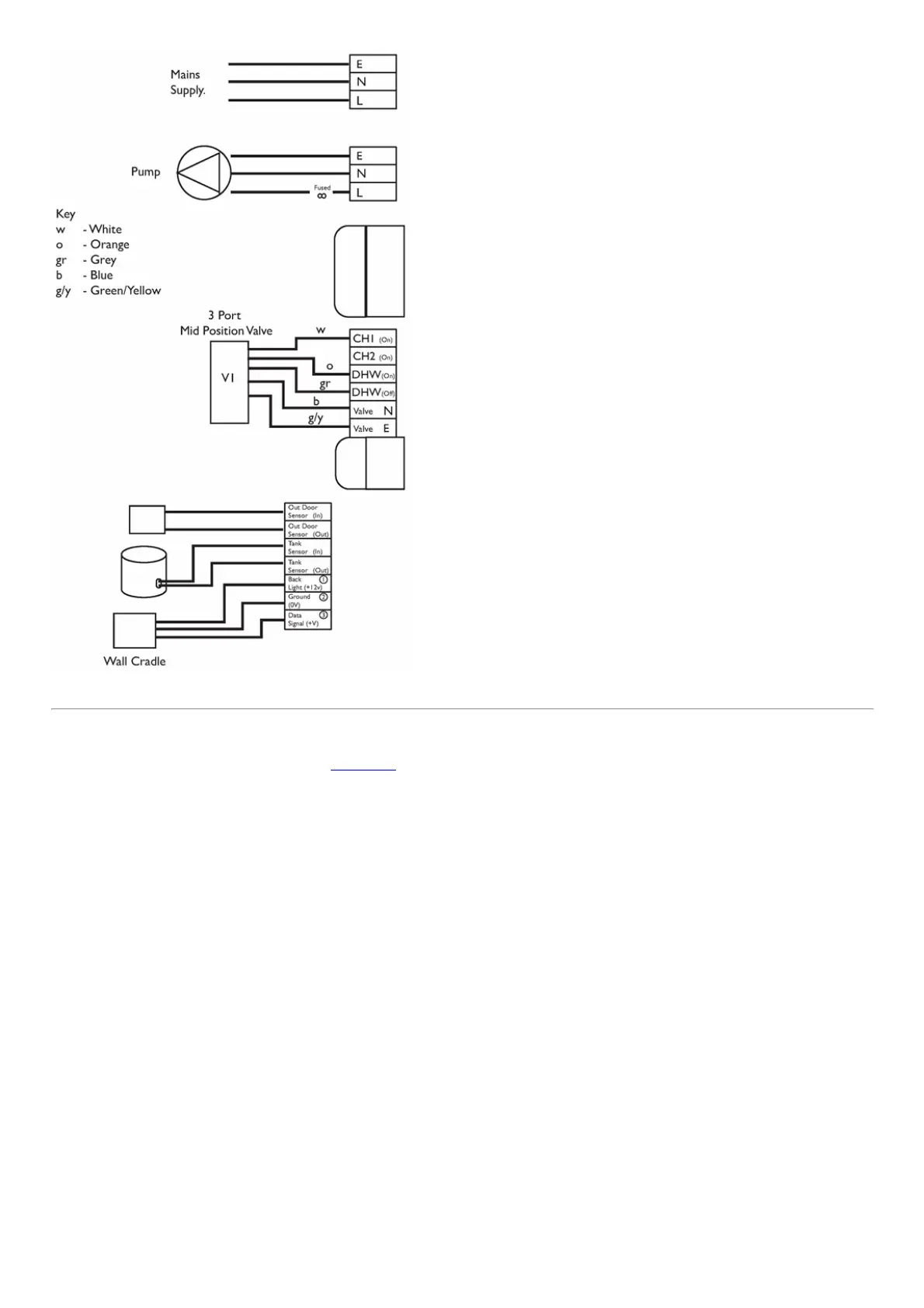

10.5YPlanwithDHWcylinderThermostat
1.TheapplianceMUSThaveapermanentLive/Neutral/Earthconnection.Thepumpmustbeconnectedtotheapplianceasshown.
2.Setparameter5700to'2'foroneheatingcircuitseesection11.3.k.
3.TheDHWsetpointontheTHINKControllermustbethesameasthethermostatsetpointonthecylinder.IfthisisnotdonetheDHWtemperaturemaynotbeachievedor
therecoverytimewillbeincreased.
NOTE:ItisnotpossibletooperateasecondheatingcircuitwithaYPlansystem.

Baxi ECOGEN 24/1.0 Specifications

General

Brand	Baxi
Model	ECOGEN 24/1.0
Category	Boiler
Language	English
