Baxi ECOGEN 24/1.0 Installation & Servicing Instructions

page44

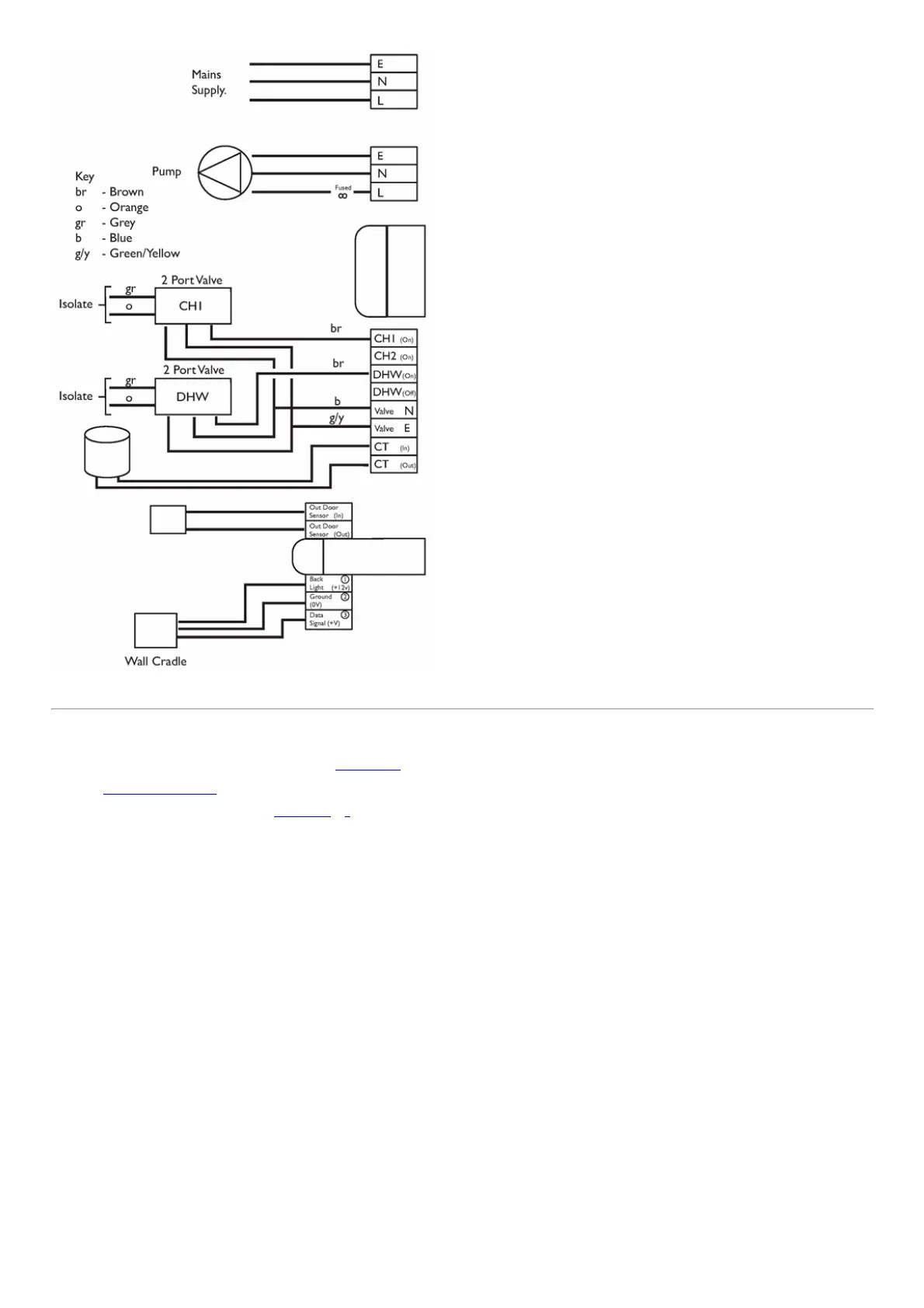

10.10SPlanwith2ndHeatingCircuit
1.TheapplianceMUSThaveapermanentLive/Neutral/Earthconnection.Thepumpmustbeconnectedtotheapplianceasshown.
2.Setparameter5700to'3'fortwoheatingcircuitsseesection11.3.k.
3.TocontrolthesecondheatingcircuitasecondTHINKControllerisrequiredthisisavailableasanoptionalextra.ForguidanceoninstallingthesecondTHINKController
seesection11.3paragraphk.
Useeitheracylindersensororthermostatasinsection10.8&9

Baxi ECOGEN 24/1.0 Specifications

General

Brand	Baxi
Model	ECOGEN 24/1.0
Category	Boiler
Language	English
