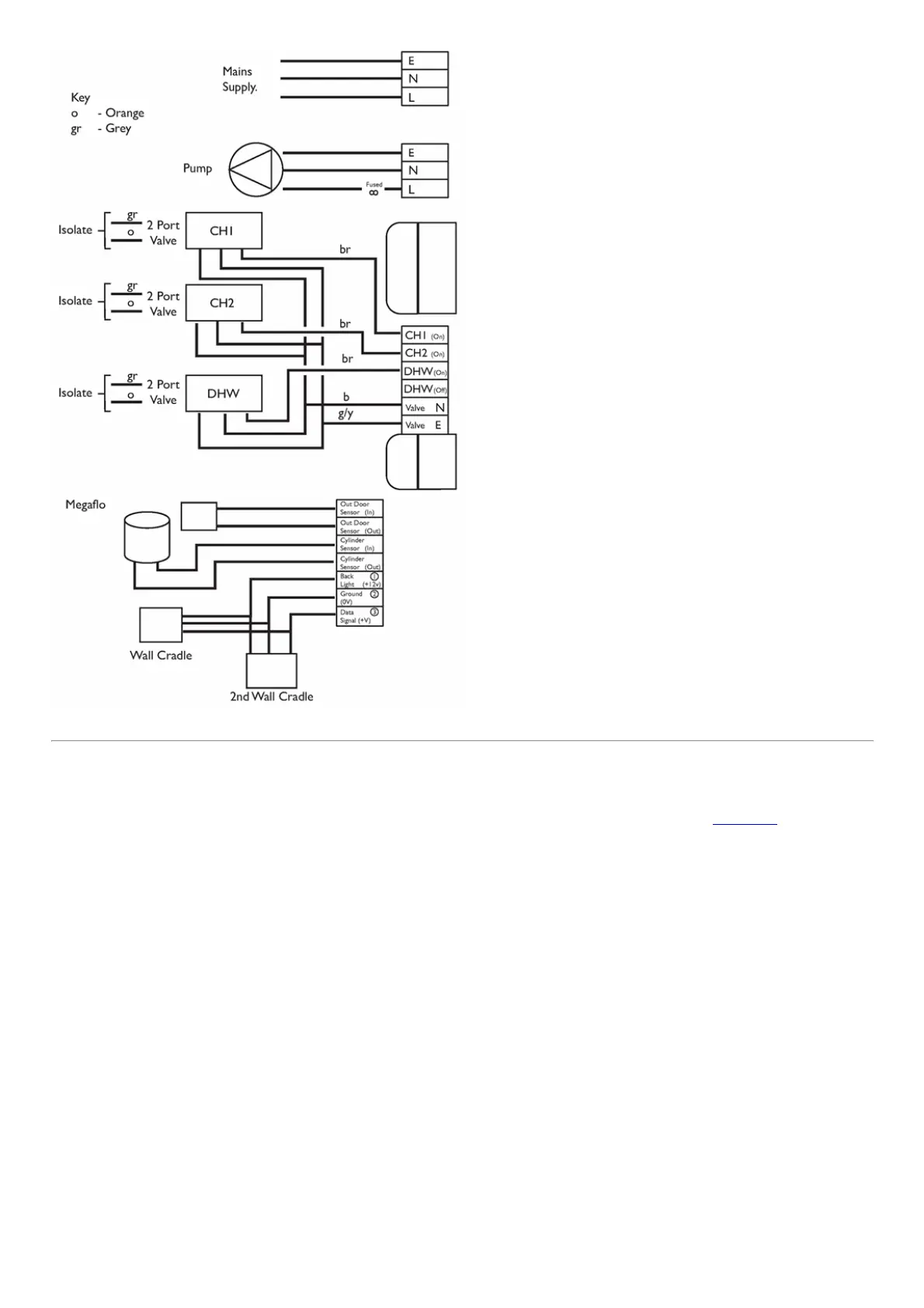

10.11WiringCenter
NOTE:AstheboilerdoesnotknowwhattheactualroomorDHWtemperatureis,theboilertemperatureisfixedat80°C.ApplianceMUSThaveapermanentLive/Neutral/Earth
connection.PumpMUSTbeconnecteddirectlytotheappliance.
SystemRequirementThedefaultforparameter5700('1'),issetuptocontrolthroughanexternalwiringcentre.Tochecktheparameterseesection11.3.k.
Asanexternalprogrammerwillbeusedtocontrolthecentralheatinganddomestichotwatertimes,theinstallermustmakesurethattheboilerTHINKControllerprogramstime
forthecentralheatingandDHWaresetto24hon(seeUserManual).
RetroInstallations
NOTE:Thisinstallationisusedonlyiftheuserwishestoutilisetheirexistingtemperatureandtimecontrols.
OutsideandDHWsensorscannotbeused.TheTHINKControllermustremainontheappliance.
