88
910.001.1 - EN
ISTRUCTIONS PERTAINING TO THE INSTALLER

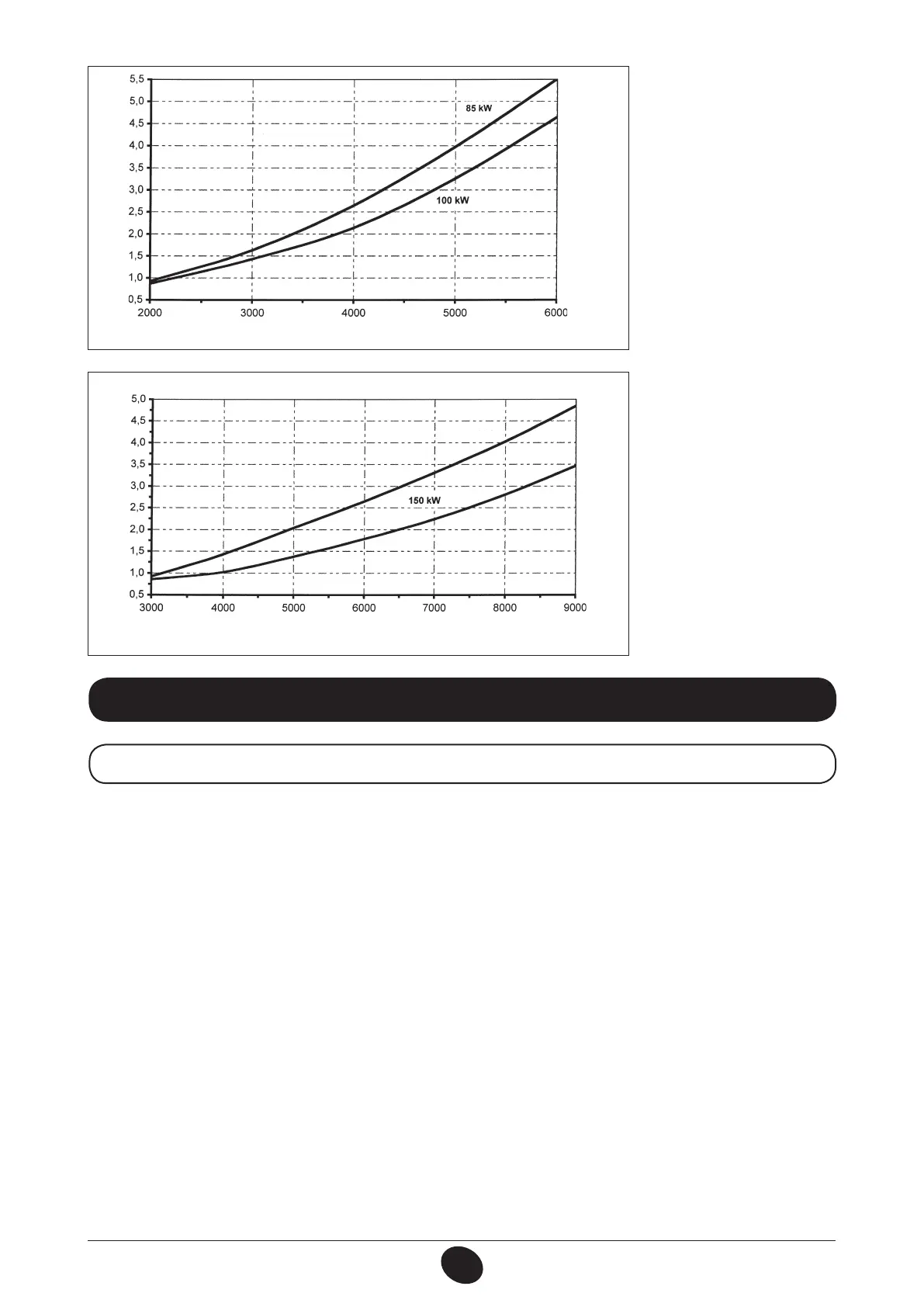

Exchangers pressure drop (mH
2
O)
WATER FLOW RATE (l/h)
Graph 1
0502_2105
POWER HT
1.850 - 1.1000
EXCHANGERS
PRESSURE DROP.
Exchangers pressure drop (mH
2
O)
WATER FLOW RATE (l/h)
Graph 1.1
POWER
HT
1.1200 - 1.1500
EXCHANGERS
PRESSURE DROP.
0601_2008
120 kW
Connect the boiler to the ue using a pipe made of stainless steel or plastic material with an internal diameter
of 100 mm, capable of resisting normal mechanical stresses over time, as well as high temperatures (<120°C)
and the chemical effects of fuel gases and their condensates.
Insert the flue-gas union and fasten the connector to the flue-gas thermostat before hooking up to
the flue.
Whenever possible use a ue connection that can be disconnected for maintenance.
Important! Horizontal flue sections must have a minimum slope of 3° towards the boiler.
Flue accessories made of plastic material for cascade or single installations are available (diameter 110 mm)
11. CHIMNEY FLUE CONNECTION
11.1 CONNECTOR WITH B23 TYPE
