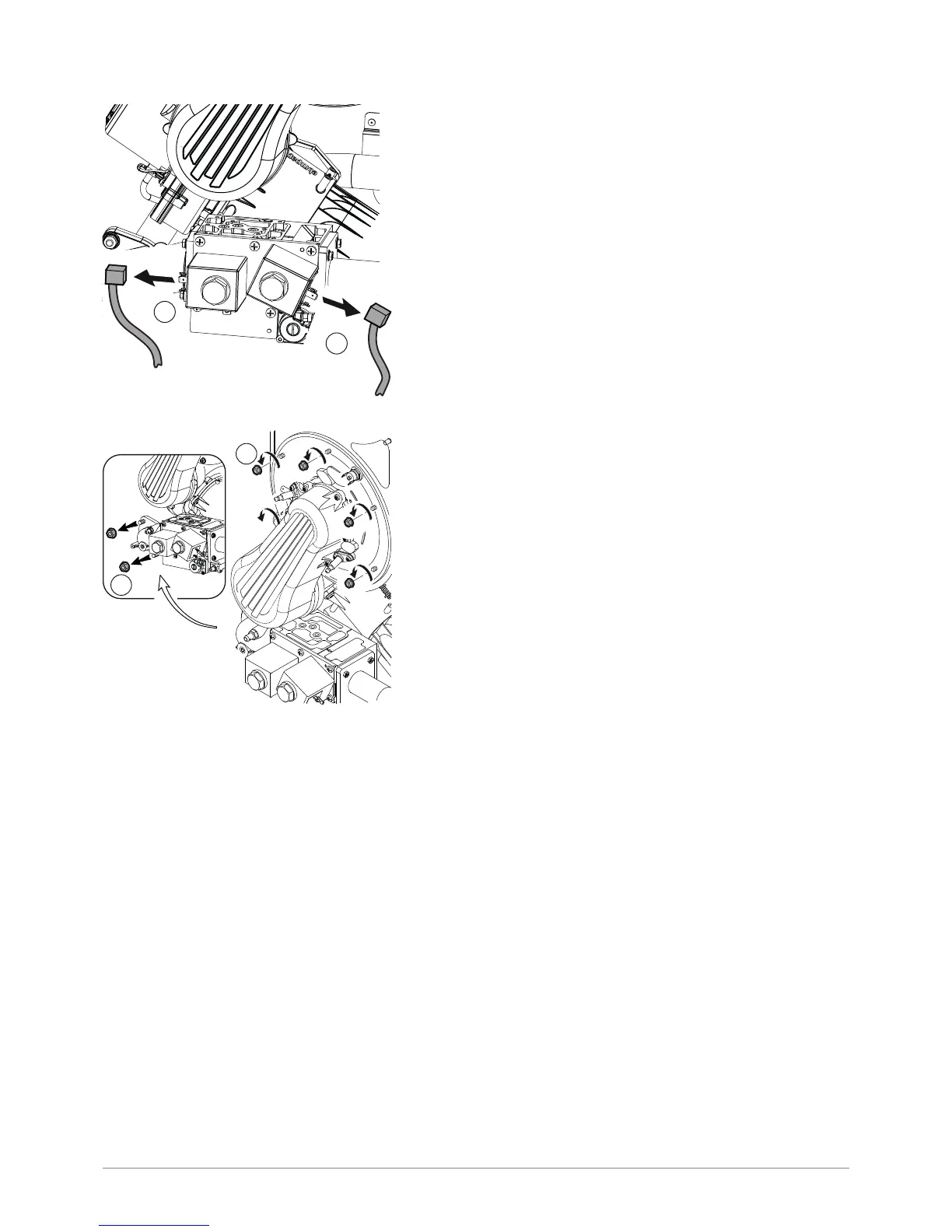

8. Remove the 2 connectors from the gas valve.
9. Remove the nuts holding the burner in place on the heat exchanger.
10. Remove the screws securing the gas inlet tube elbow.
Fig.143
MW-4000314-01
8
8
Fig.144
9
MW-2000786-02
10
11 Maintenance
7702630 - v02 - 11082018 POWER HT + 107
