2 Description of Controls and Indicators
2-8 COLLEAGUE CXE VOLUMETRIC INFUSION PUMP OPERATOR’S MANUAL 071960491
Rear Panel Features
See Figure 2-3 for the rear view of a triple channel pump. Table 2-3
describes the rear panel features.

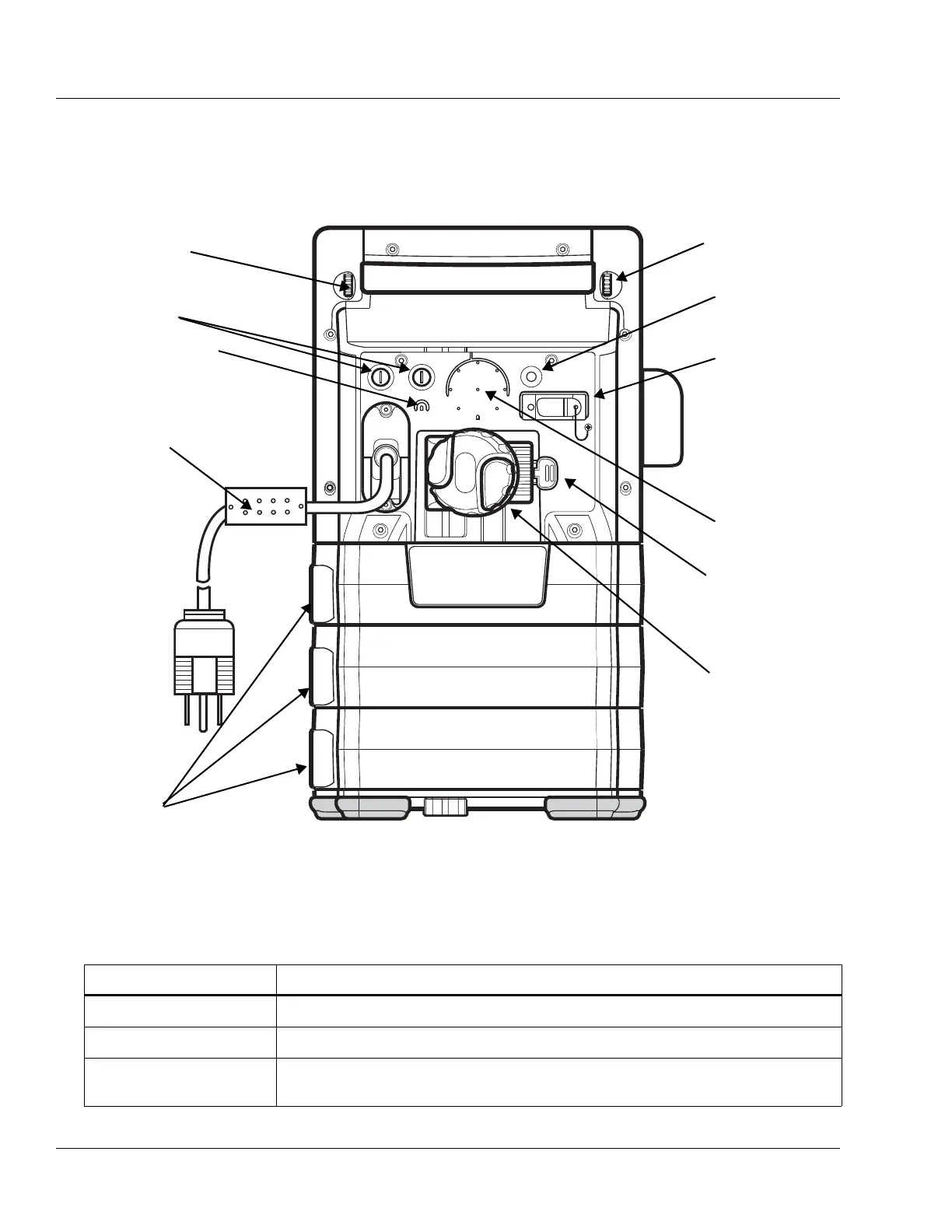

Figure 2-3 Rear View, Triple Channel Pump
MANUAL TUBE
RELEASE
(only one on single
channel pump)
MOUNTING
CLAMP KNOB
PANEL LOCKOUT
BUTTON
COMMUNICATION
PORT
MOUNTING CLAMP
RELEASE LATCH
MAIN DISPLAY
CONTRAST CONTROL
POWER CORD
NOTE: THE CORD
MAY DIFFER FROM
THAT SHOWN.
AUDIO SPEAKER
VOLUME CONTROL
FUSE HOLDERS
BACKUP BEEPER GRILL
AUDIO SPEAKER
GRILL
Table 2-3 Rear Panel Features
Item Description
Communication port An RS232 interface enables optional communication functions. For service use only.
Fuse holders The pump’s fuses are located inside.
Volume and Contrast
Controls
Thumbwheels for increasing and decreasing the audio volume and display contrast
settings.
