Preparation for Use Check-out
Changing the Mounting Bracket Orientation (Single Channel Pumps Only)
The instructions and Figure 3-3 illustrate how to change the orientation
from a pole mount (vertical) to a headboard (horizontal) mount. The
procedure for changing from a horizontal mount to a vertical mount is
similar, except that the positions of the clamp and plate cover are the
reverse of what is shown in the figures.
1. Press down and hold the latch (A in Figure 3-3) to release the
mounting clamp from the plate.
2. Grasp the mounting clamp knob and slide the clamp off of the
bracket (B in Figure 3-3).
3. Rotate the clamp counter-clockwise 90° (C in Figure 3-3) until the
open end of the clamp is towards the floor (see clamp in Figure 3-2).
4. Slide the clamp up onto the plate until you hear the clamp lock into
place (D in Figure 3-3). The clamp should now be positioned as in
Figure 3-2.
5. Continue with attaching the clamp according to the applicable
mounting procedure above.
Check-out
Perform the following visual inspections before each use:
Display screens and keypads: check for wear, scratches, or cracks
Pump body: check for cracks and dents
Power cord and plug: check the cord and connectors for cracks
and damage. Do not use the pump if the connectors appear
damaged.
Labels: check for scratches, cuts, and peeling, or fading, missing,
and obliterated labels and words.
If there is any evidence of damage, contact your authorized service
provider.

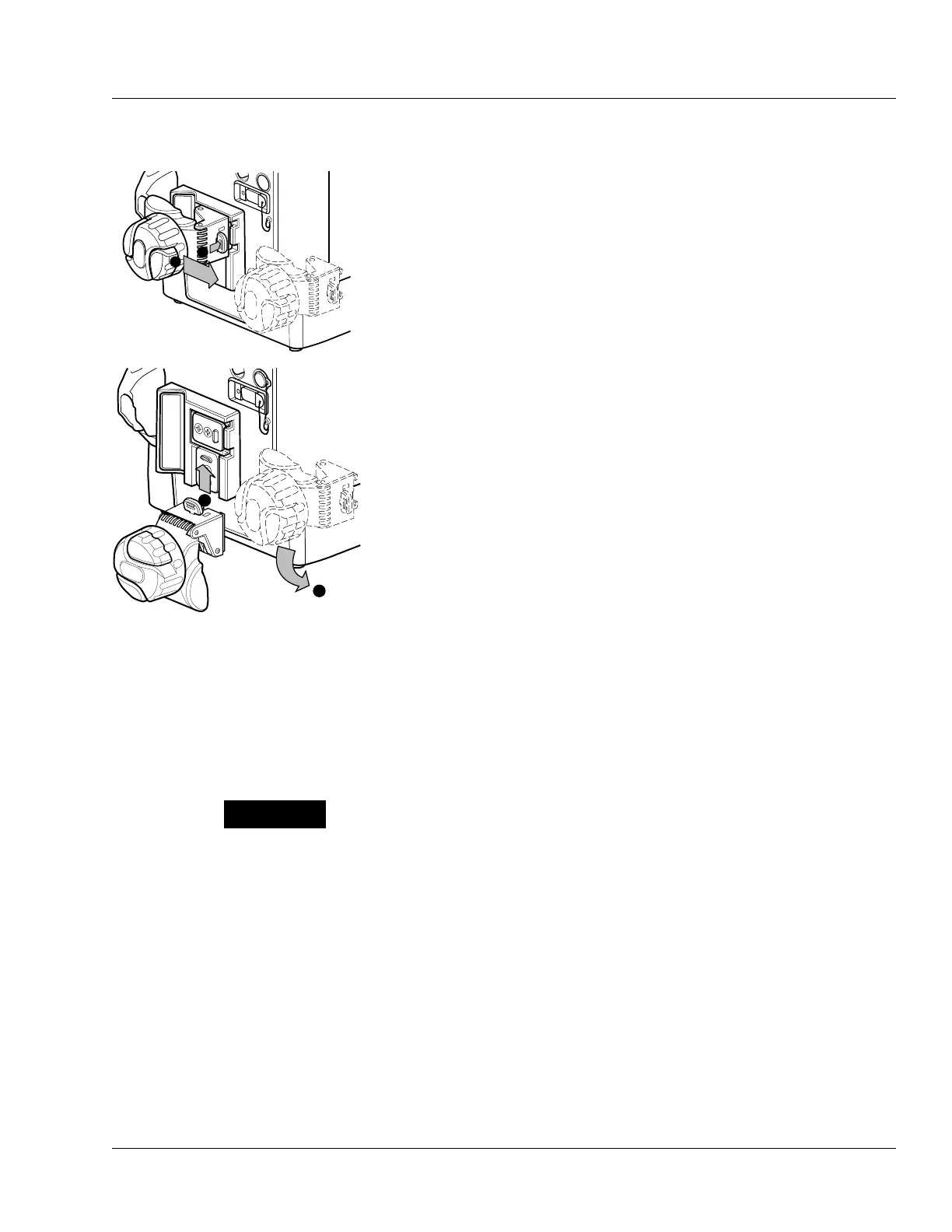

Figure 3-3 Changing the
Mounting Bracket Orientation
If the pump has been dropped or appears to be damaged, it should be taken out of
service and inspected by Baxter-trained, qualified personnel only.
