3 Setup Instructions
3-2 COLLEAGUE CXE VOLUMETRIC INFUSION PUMP OPERATOR’S MANUAL 071960491
3. Before initially powering on the pump, charge the battery for at least
12 uninterrupted hours. A complete charge may take longer than
12 hours.
Mounting the Pump on an IV Pole
Note: To help loosen the mounting clamp knob, flip open and use the
two wing-shaped extensions on the knob.
1. For triple channel pumps: proceed to Step 2.
For single channel pumps: check to see if the clamp bracket is
positioned for mounting on a pole as in Figure 3-1. If so, continue
with Step 2; otherwise, see “Changing the Mounting Bracket
Orientation (Single Channel Pumps Only),” 3-3.
2. Attach mounting clamp by positioning the hinged clamp arm around
the IV pole.
3. Turn the mounting clamp knob clockwise to close the clamp arm.
Tighten until secure.
Mounting the Pump on a Headboard (Single Channel Pumps Only)
Note: To help loosen the mounting clamp knob, flip open and use the
two wing-shaped extensions on the knob.
1. Check to see if the clamp bracket is positioned for headboard
mounting or other horizontal applications as in Figure 3-2. If so,
continue with Step 2; otherwise, see “Changing the Mounting
Bracket Orientation (Single Channel Pumps Only),” 3-3.
2. Attach mounting clamp by positioning the hinged clamp arm over
the chosen fixture.
3. Turn the mounting clamp knob clockwise to close the clamp arm.
Tighten until secure.
When attaching this pump to an IV pole, ensure it has been securely clamped
and ensure that the IV pole is stable and secure. Ensure that the pole is able to
support the pump, along with any other devices, without tipping or falling.
When attached to an IV pole, the pump may become unstable (tip and fall) if the
center of the mounting clamp knob (Figure 3-1) measures 96 cm (37.8 inches)
or higher from the floor. The pole diameter should be between 0.96 and 3.81 cm
(3/8 inch and 1-1/2 inches).

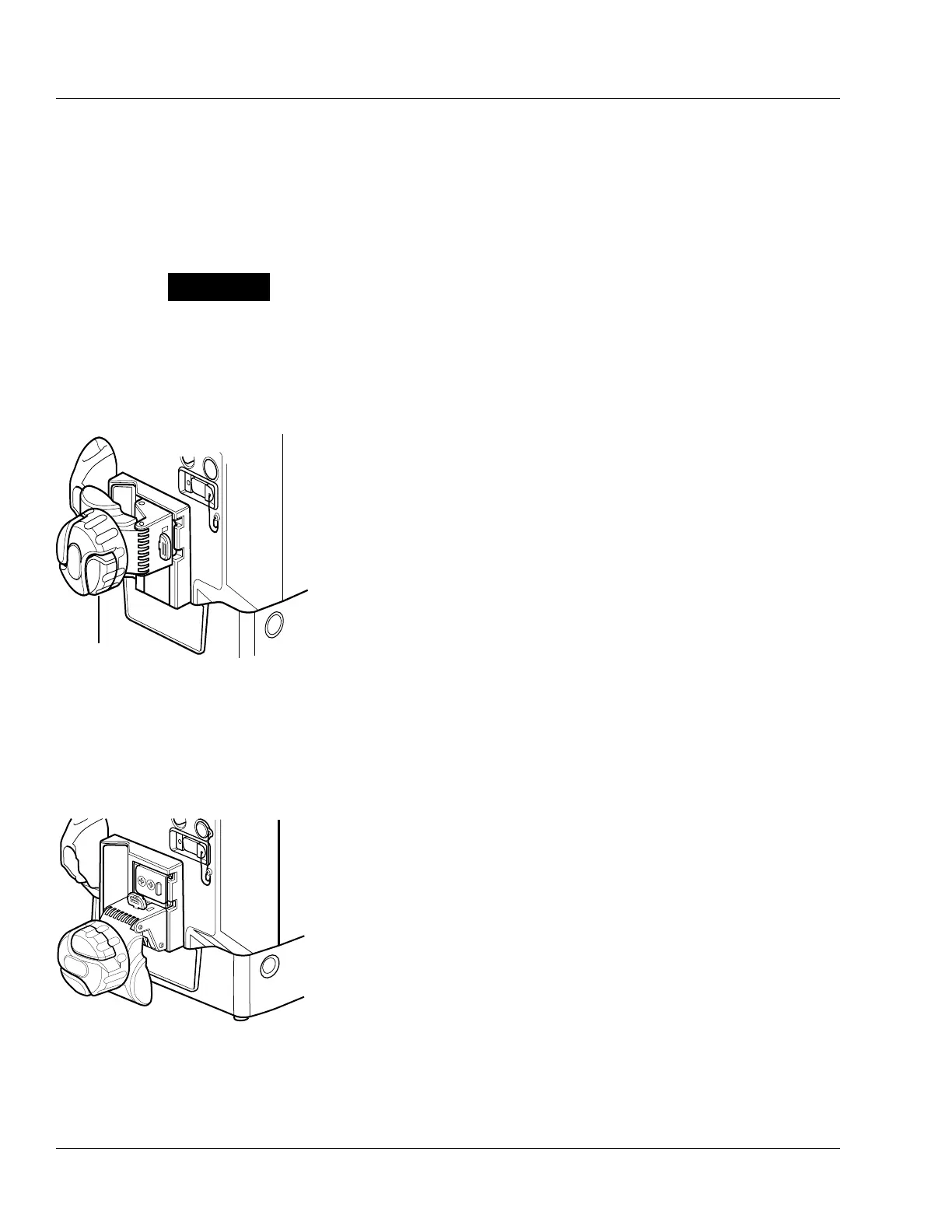

Figure 3-2 Headboard (horizontal)
Mount
To Next Page
