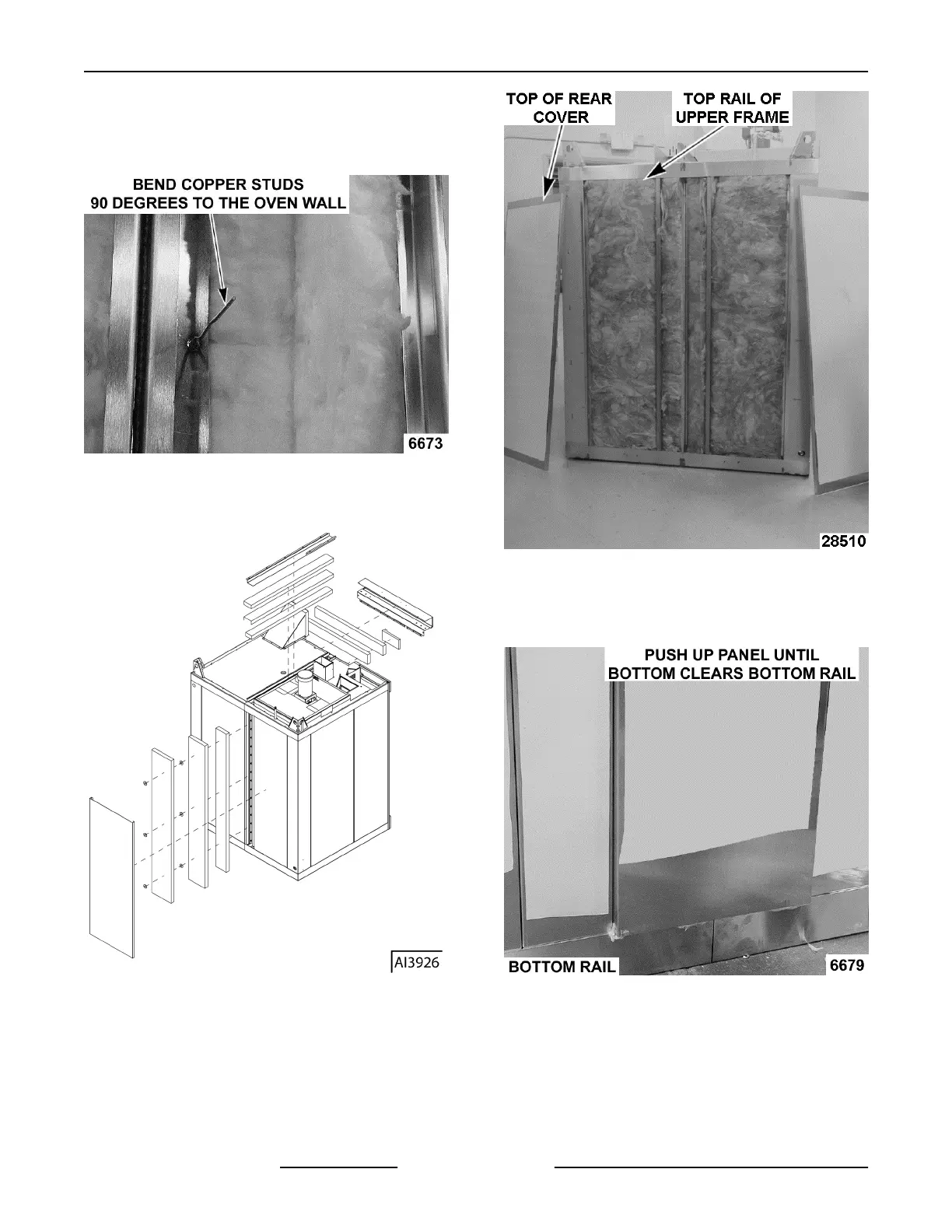

A. On the rear seam, bend the copper studs so
they
are 90 degrees to the oven wall. When
installing the insulation, make sure the
insulation is held by these studs.
Fig. 27
B. At the rear wall, place the push nuts over the
copper studs to secure the insulation.
Fig. 28
18. Install rear cover panel.
NOTE:
This panel will also have a layer of insulation.
A. Start the top of the panel behind the top rail
of the upper frame.
Fig. 29
B. Push the panel up until the bottom of the
panel clears the bottom rail of the oven
section frame.
Fig. 30
C. Make sure that the panel is behind the rail
of the lower frame and will rest against the
stop when lowered into position.
INSTALLATION
INSTRUCTIONS OV500-EE SERIES GAS RACK OVENS AND OV500 SERIES ELECTRIC RACK
OVENS - INSTALLING OVEN
F45469 Rev. D (1019) Page 22 of 49
