BD 644787 - Reinstalling the HTS

Chapter 2: HTS Removal and Reinstallation 15

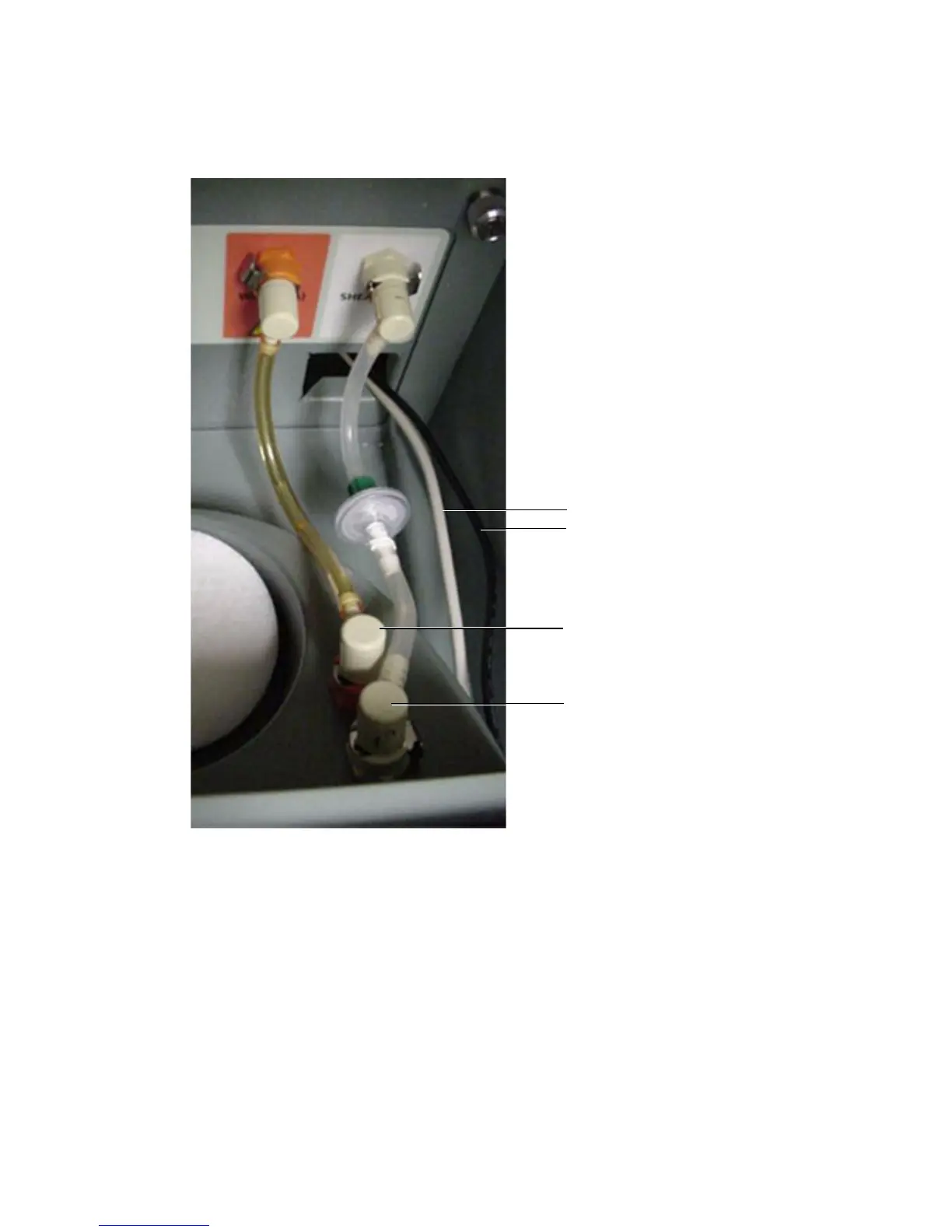

Figure 2-2 Fluidic connections to HTS
Reinstalling the HTS
1 Place the HTS on the support bracket.
2 Reconnect the power cable and the serial communications cable.
3 Reconnect the sheath and waste connectors to the HTS.
Routing of power and
communication cables
Sheath fluid connection
Waste fluidic connection
