Page 2 of 8 75.5601.04 EAGLE 20240412
INSTALLATION TIPS
BEFORE MOUNTING AFTER MOUNTING
• Do not touch electrical parts.
• Avoid vibrations.
• Do not cover the sensor.
• Avoid proximity to neon lamps or moving objects.
• The sensor may be mounted horizontally or vertically (e.g. on a ceiling or on a wall, respectively).
◊ If mounting horizontally, the sensor must be mounted in front of the door.
◊ If mounting vertically, the sensor must be mounted above the door.

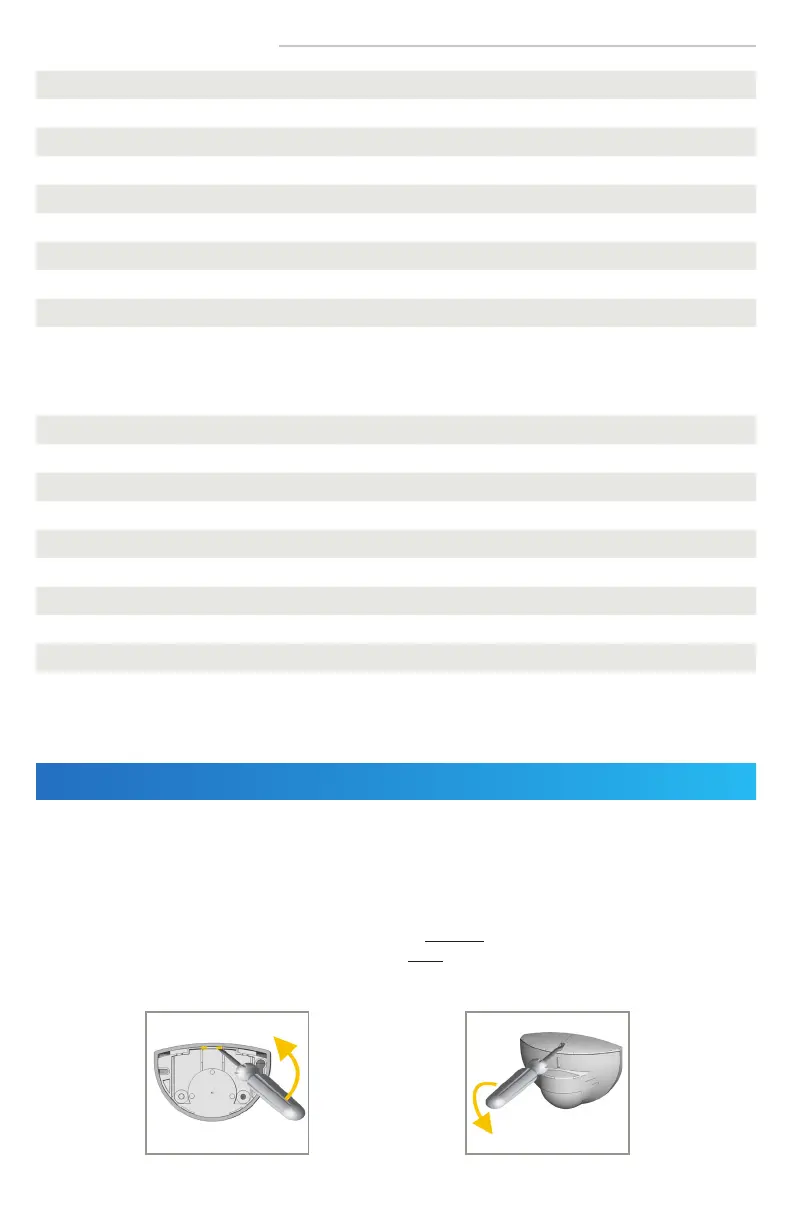

How to Open the Sensor:
TECHNICAL SPECIFICATIONS
Technology: microwave and microprocessor
Transmitter frequency: 24.150 GHz
Transmitter radiated power: < 20 dBm EIRP
Transmitter power density: < 5 mW/cm²
Detection mode: motion
Min. detection speed: 2 in/s
Supply voltage: 12 – 24 VAC ±10%; 12 – 24 VDC +30% / -10%
Mains frequency: 50 – 60 Hz
Max power consumption: < 2 W
Output:
max. contact voltage:
max. contact current:
max. switching power:
relay (free of potential changeover contact)
42V AC/DC
1A (resistive)
30W (DC) / 60VA (AC)
Mounting height: 6’ – 13’
Degree of protection: IP54
Temperature range: -4 – 131 °F
Dimensions: 4.7" (L) × 3.1" (H) × 2.0" (W)
Tilt angles: 0 – 90° vertical; -30 – 30° lateral
Material: ABS
Weight: 7.6 oz
Cable length: 8’
Norm conformity: R&TTE 1999/5/EC, LVD 2006/95/EC, RoHS 2 2011/65/EU
Specifications are subject to change without prior notice.
All values measured in specific conditions.
