BEA Eagle - MECHANICAL ADJUSTMENTS; LATERAL ADJUSTMENT; VERTICAL ADJUSTMENT

7 ft
5
10 ft
7 ft
10 ft
4
7 ft
7 ft
Page 4 of 8 75.5601.04 EAGLE 20240412

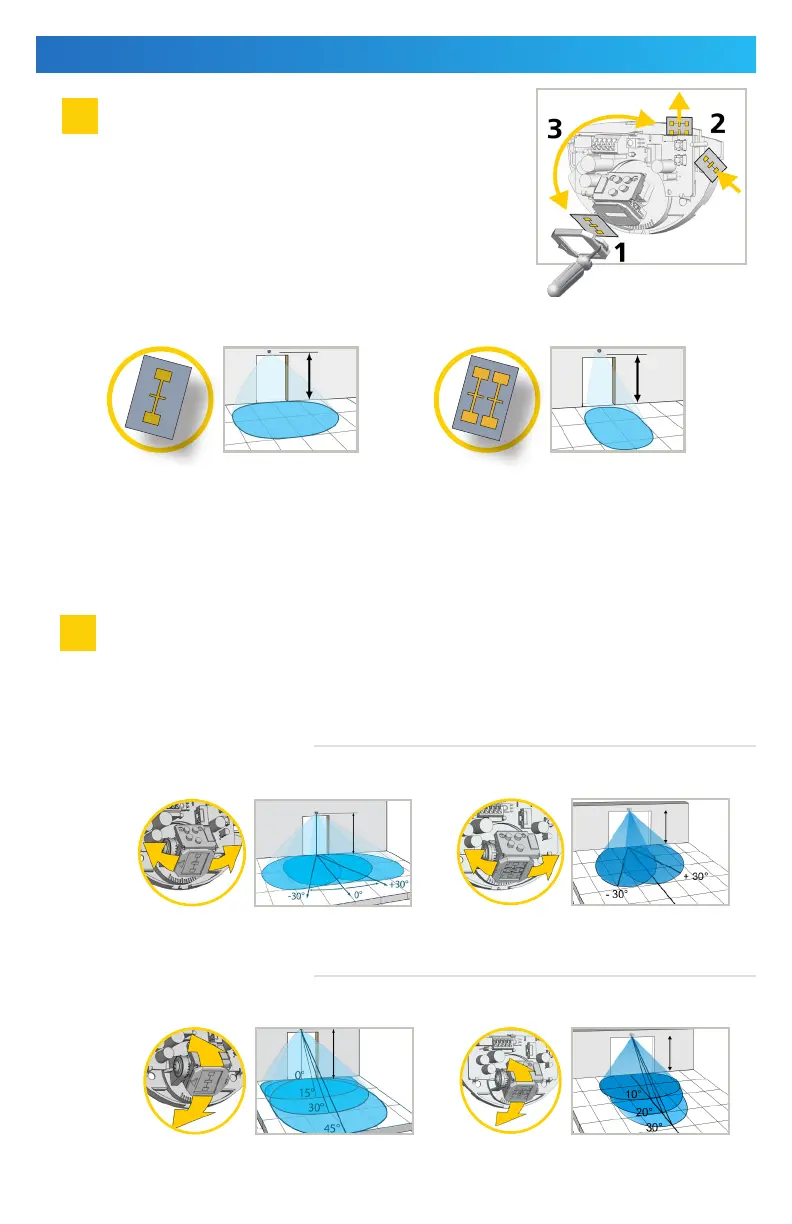

MECHANICAL ADJUSTMENTS
If desired, adjust the antenna angle (laterally and/or vertically) to position the detection field.
When mounting at the maximum height, the sensor manufacturer recommends a 15° tilt angle.
Observe antenna type (narrow or wide) in the illustrations below.
LATERAL ADJUSTMENT
VERTICAL ADJUSTMENT
WIDE
WIDE
NARROW
NARROW
Choose the appropriate antenna (narrow or wide) for the correct
detection zone width.
Narrow: 6’ 6" × 8’
Wide: 13’ × 6’ 6"
See diagram (right) for how to change antennas.
ZONE SIZE: XXL
IMMUNITY: normal
WIDE
ZONE SIZE: XXL
IMMUNITY: normal
NARROW
