75.5601.04 EAGLE 20240412 Page 3 of 8

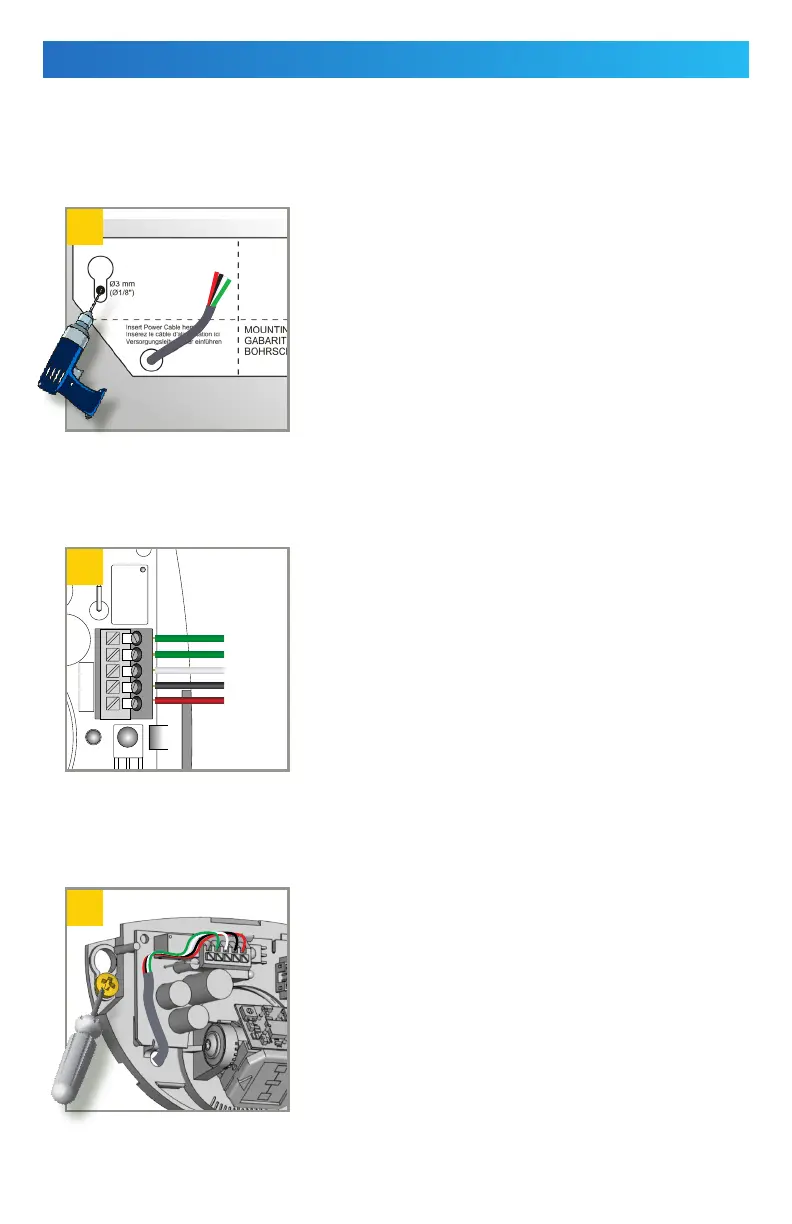

MOUNTING & WIRING
If using EAGLE SPACER or EAGLE SPACER V, please refer to User’s Guide 75.5981 before beginning.
Apply the mounting template.
Drill 1 hole for the cable and pull it through.
Drill 2 holes for the screws.
Position the cable as indicated.
Mount the sensor firmly.
Connect the wires accordingly:
1: RED - POWER SUPPLY (+)
2: BLACK - POWER SUPPLY (-)
3: WHITE - COM
4: GREEN - NO OR 5: GREEN - NC
