Assembly and connecting
98 Embedded PC
Fan1 Speed
Speed of fan no. 1 (0 in this case, since no fan present)
Fan2 Speed
Speed of fan no. 2 (0 in this case, since no fan present)
VBatt
Battery voltage.
CX1020 Revision
Hardware Version of the CPU board.
CX1021 Revision
Hardware Version of the CF board.

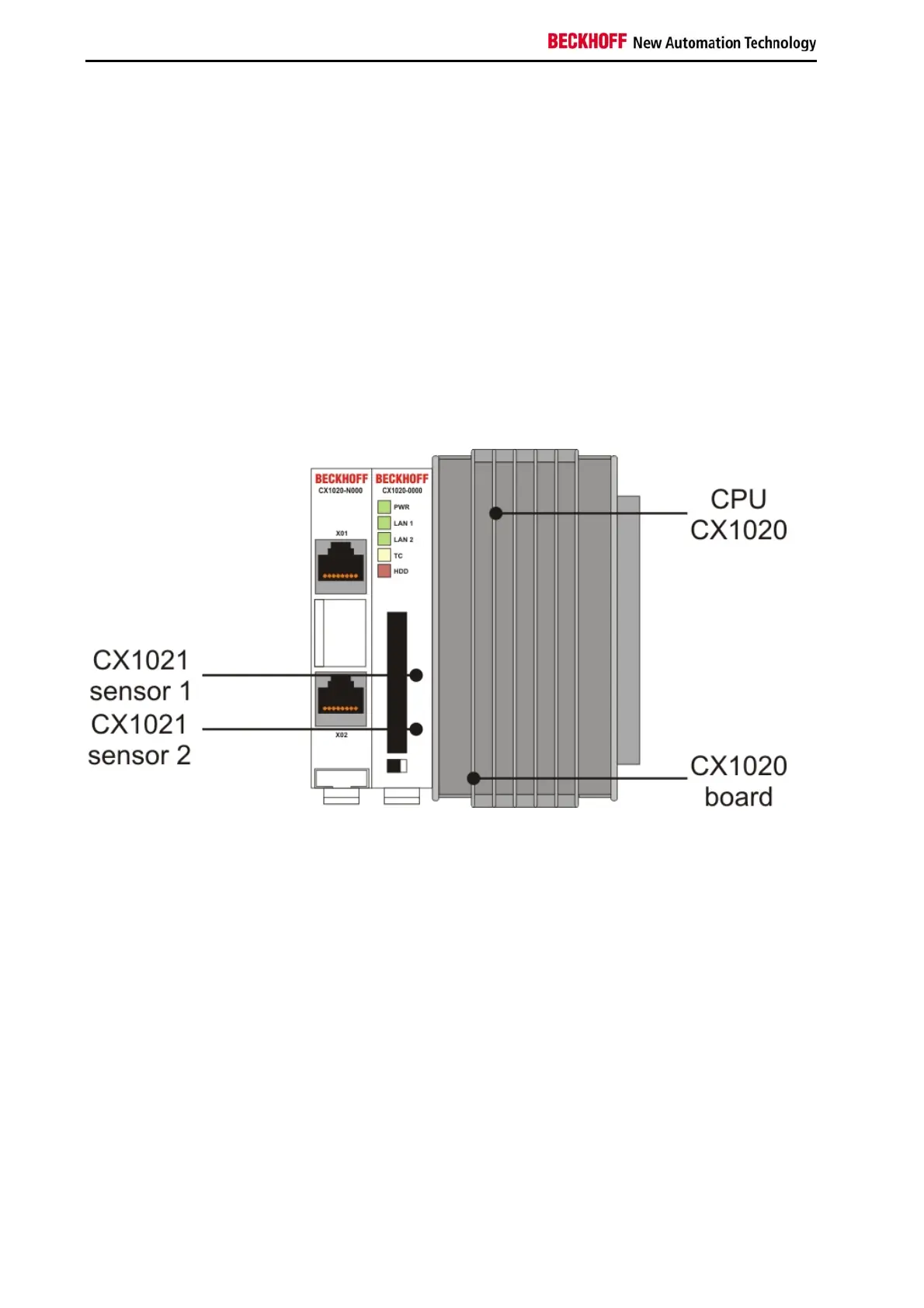

This diagram shows the positions if the temperature sensors:
