Assembly and connecting
Embedded PC 59
4. Assembly and connecting
Mechanical assembly

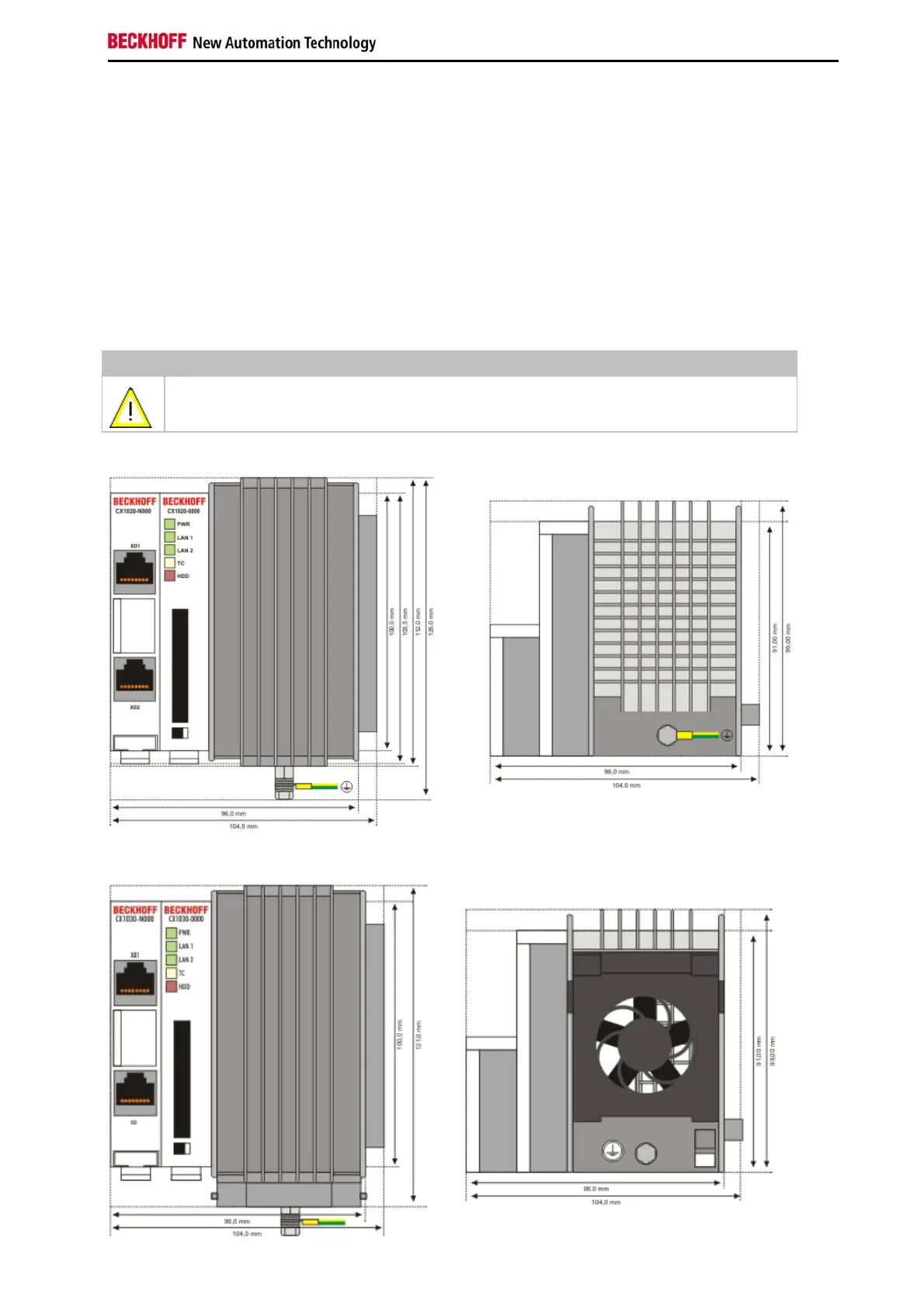

Dimensions
The CX1000 product range is characterized by small overall installed size and high modularity. For project planning
purposes, a CPU module, a power supply unit and the associated system interfaces and fieldbus interfaces have to
be provided. The overall width of the application is made up of the individual modules. With a height of 100 mm, the
module dimensions exactly match those of the Beckhoff Bus Terminals. Together with the lowered connector
surfaces, this means that it can be used in a standard terminal box with a height of 120 mm.
Warning
To ensure cooling to the device in operation it is important keep the safety distances. Details see
installation position below.
CX1020 Basic CPU-module:
CX1020 Basic CPU-module:
