CX1020 Technical Data

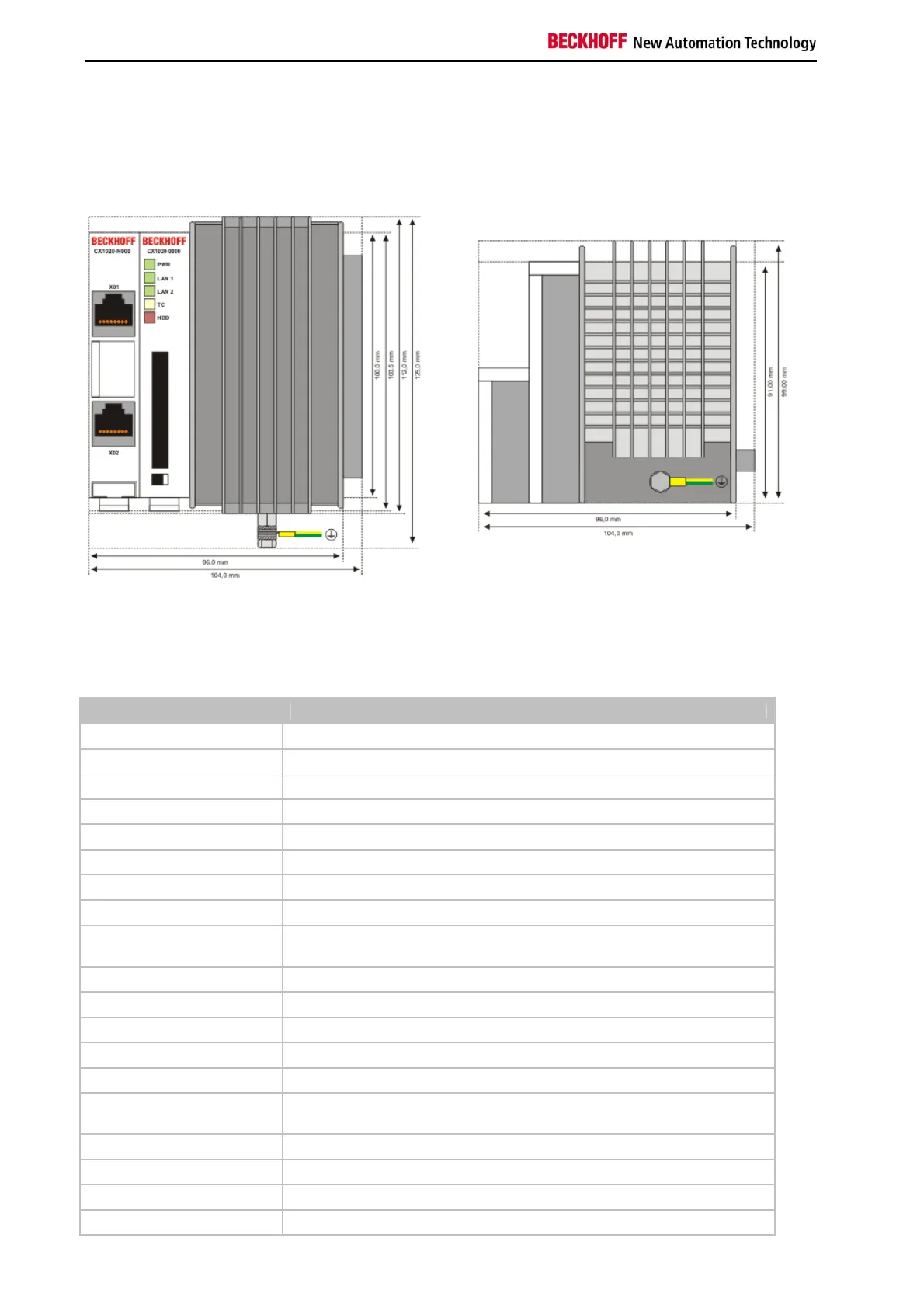

Dimensions:
The basic configuration of the CX1020 includes a 64 MB Compact Flash card. Two Ethernet RJ 45 interfaces are
also part of the basic configuration. These interfaces are connected to an internal switch and offer a simple option for
creating a line topology without the need for additional Ethernet switches. All other CX family components can be
connected via the PC104 interface that is available on both sides.
The passive cooling module is included in the scope of supply. For power supply one of the system power supply
modules (CX1100-000x) is needed)
Technical data CX1020-0000
processor Intel® Celeron® M ULV, 1 GHz clock frequency
Flash memory 64 MB Compact Flash card
Internal main memory 256 MB DDR-RAM (expandable to 512MByte, 1 GB)
Interfaces 2 x RJ45 (internal switch)
Diagnostics LED 1 x Power, 2 x LAN link/activity, 1 x TC, 1 x flash access
Expansion slot 1 x Compact Flash type I+ II insert with eject mechanism
Clock internal battery-backed clock for time and date
Operating system Microsoft Windows CE.NET or Microsoft Windows XP Embedded
Control software TwinCAT PLC Runtime , TwinCAT NC PTP Runtime oder TwinCAT NCI
Runtime
System bus 16 Bit ISA (PC104 standard)
Power supply via system bus (through power supply module CX1100-000x)
Max. power loss 11 W (including CX1100-N0xx systeminterfaces)
Dimensions (W x H x D) 96 mm x 112 mm x 99 mm
Wight app. 550 g
Operating/storage
temperature
0° C ... +50° C / -25° C ... +85° C
Relative humidity 95% no condensation
Vibration/shock resistance conforms to EN 60068-2-6 / EN 60068-2-27/29
EMC resistance burst / ESD conforms to EN 61000-6-2/EN 61000-6-4
protection class IP 20
