Product overview
Embedded PC 53

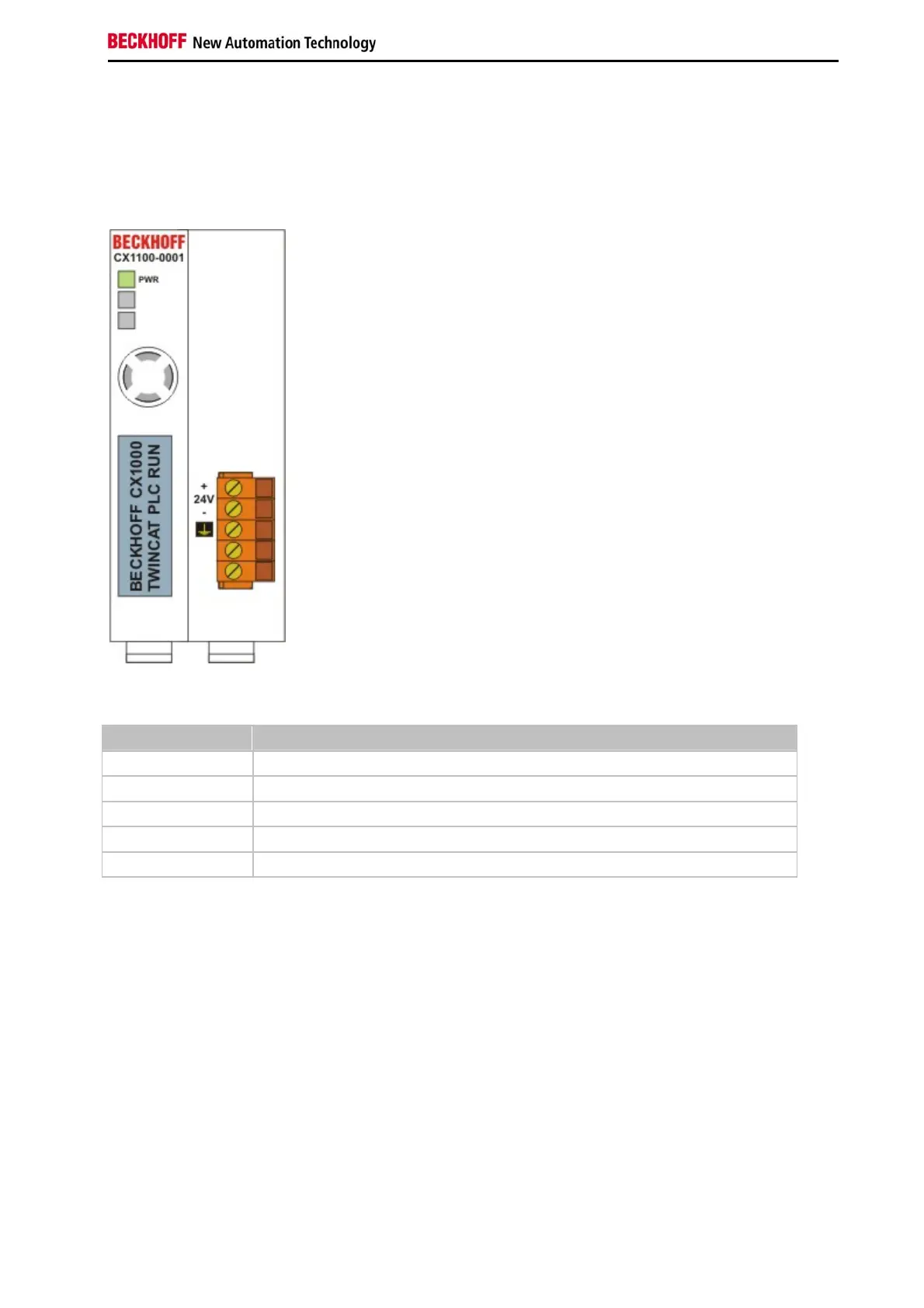

CX1100-0001 connections
This power supply unit does not have an I/O interface. The power supply is therefore connected through the 5-pin
open pluggable connector. The power supply unit supplies all further system components with a voltage of 24 V DC (-
15 %/+20%) via the PC104 bus. The dielectric strength of the power supply unit is 500 V
rms
.
The integrated NOVRAM permits storage of process data that is safe against power failure.
Pin Allocation Open Style Connector:
Pin Assignmnet
1
+24 V DC
2
0 V DC
3
GROUND
4
reserved / don't use
5
reserved / don't use
LED:
With proper connection of the power supply unit and with power supply turned on, the power LED (PWR) lights up
green. In the case of a short-circuit, it lights up red.
