Assembly and connecting
Embedded PC 65

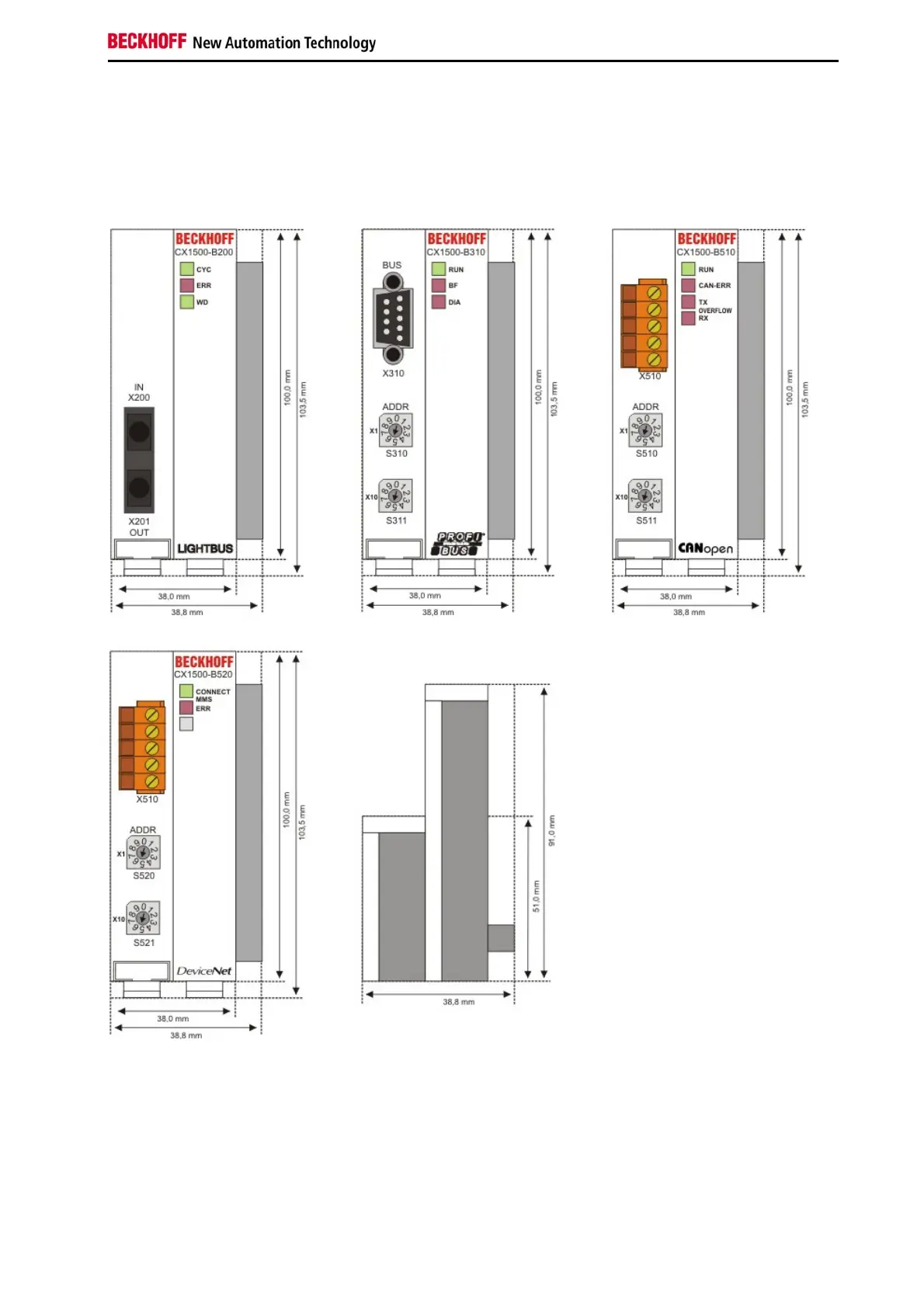

CX1500-Mxxx und CX1500-Bxxx fieldbus connections
All modules for the fieldbus connections (master and slave) have the dimensions (W x H x D) 38 mm x 100 mm x 91
mm.
CX1500-Bxxx
