Product overview
EL10xx, EL11xx 15Version: 4.5
2 Product overview
2.1 EL1002, EL1004-00x0, EL1008 - Introduction
Two-, four- and eight-channel digital input terminals 24V
DC
, 3ms input filter
The EL1002, EL1004 and EL1008 digital input terminals acquire binary control signals from the process level
and transmit them, in an electrically isolated form, to the higher-level automation device. They differ in the
number of channels and the pin assignment. The digital input terminals of the EL100x series feature an input
filter (3ms) and indicate their signal state through an LED for each channel.
The variant of the EL1004-0020 is designed with a functional potential separation of 2500 V (test voltage E-
bus / field voltage).
2.1.1 EL1002 - LEDs and connection

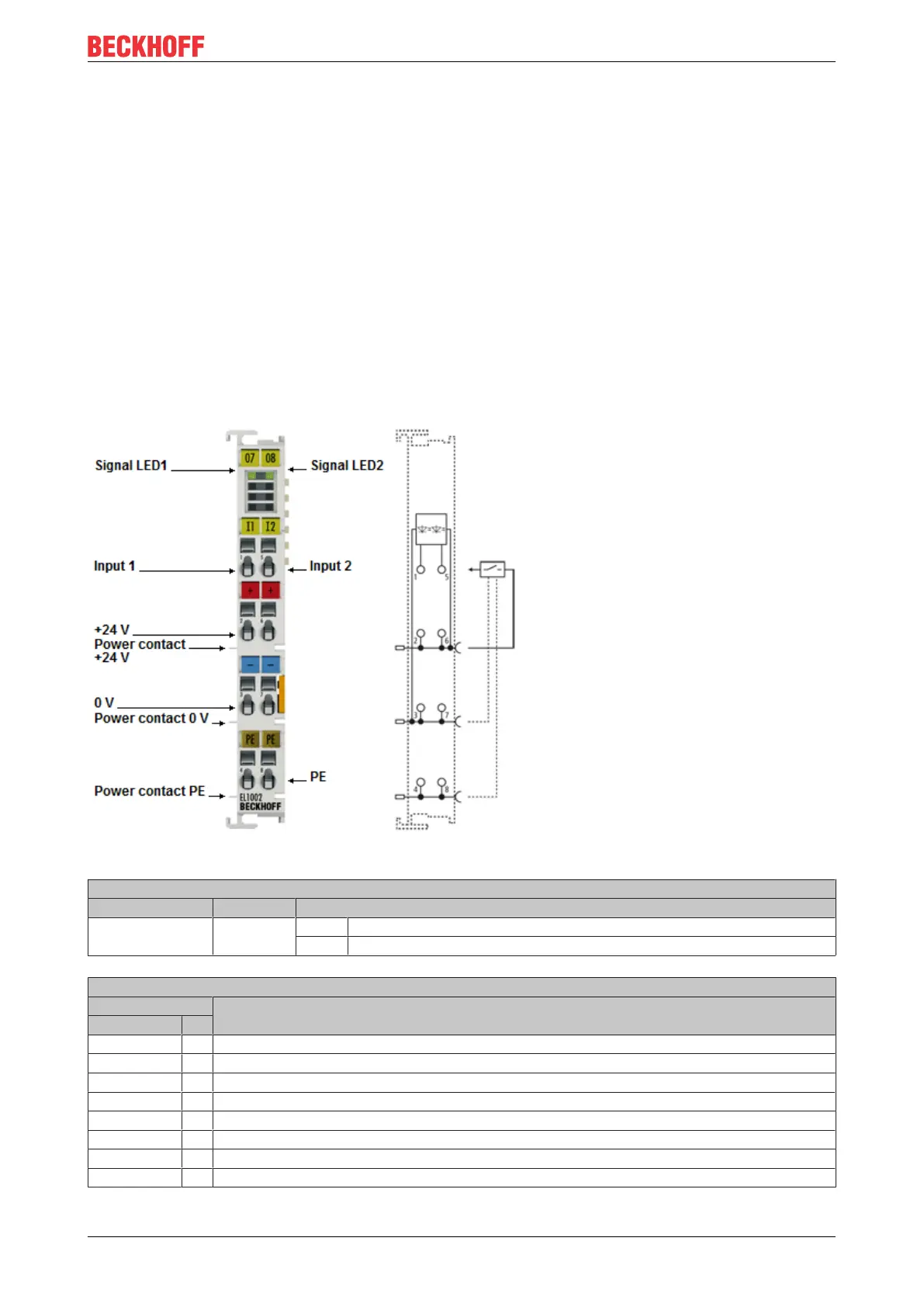

Fig.10: EL1002
EL1002 - LEDs
LED Color Meaning
INPUT 1
INPUT 2
green off Signal voltage "0" (-3V ... 5V)
on Signal voltage "1" (11V ... 30V)
EL1002 - Connection
Terminal point Description
Name No.
Input 1 1 Input 1
+24V 2 Sensor supply for input1 (internally connected to terminal point6 and positive power contact)
0V 3 Ground for input1 (internally connected to terminal point7 and negative power contact)
PE 4 PE (internally connected to terminal point8)
Input 2 5 Input 2
+24V 6 Sensor supply for input2 (internally connected to terminal point2 and positive power contact)
0V 7 Ground for input2 (internally connected to terminal point3 and negative power contact)
PE 8 PE (internally connected to terminal point4)
