Commissioning
EL10xx, EL11xx78 Version: 4.5

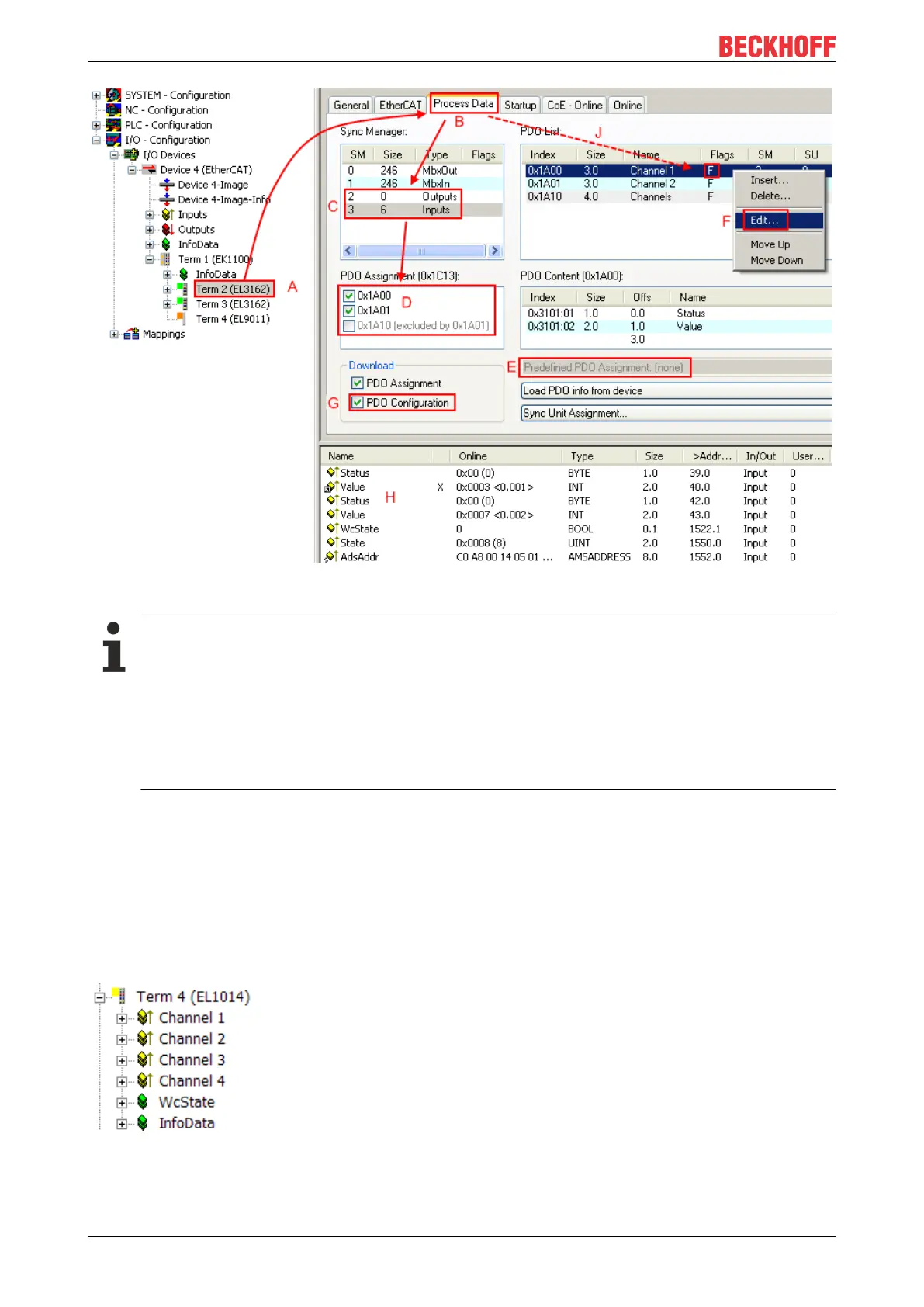

Fig.82: Configuring the process data
Manual modification of the process data
According to the ESI description, a PDO can be identified as “fixed” with the flag “F” in the PDO
overview (Fig. “Configuring the process data”, J). The configuration of such PDOs cannot be
changed, even if TwinCAT offers the associated dialog (“Edit”). In particular, CoE content cannot be
displayed as cyclic process data.This generally also applies in cases where a device supports
download of the PDO configuration, “G”.In case of incorrect configuration the EtherCAT slave usu-
ally refuses to start and change to OP state. The System Manager displays an “invalid SM cfg” log-
ger message:This error message (“invalid SM IN cfg” or “invalid SM OUT cfg”) also indicates the
reason for the failed start.
5.1.6 Configuration with the TwinCAT System Manager - digital input
and output terminals
(with TwinCAT from version 2.10.0 (build1305), example based on EL1014)
Click in the left-hand window of the TwinCAT System Manager on the tree branch of the terminal that you
wish to configure (in the example: terminal 4 EL1014).
In the right-hand window of the TwinCAT System Manager, various tabs are now available for configuring
the terminal.
