2.4.2 EL1088, EL1098 - LEDs and connection

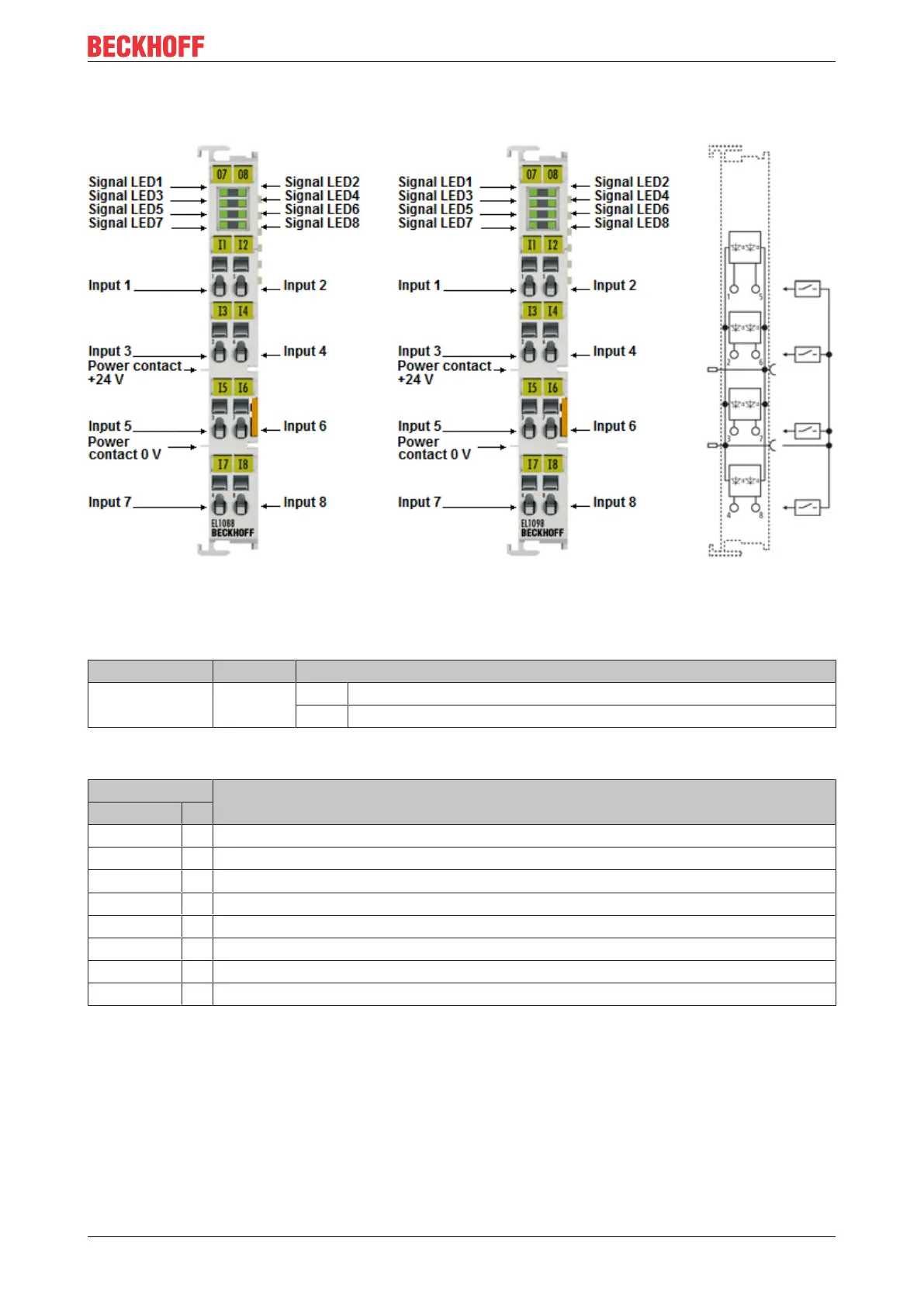

Fig.19: EL1088, EL1098
EL1088, EL1098 - LEDs
LED Color Meaning
INPUT 1- 8 green off Signal voltage "0" (18V ... 30V)
on Signal voltage "1" (0V ... 7V)
EL1088, EL1098 - Connection
Terminal point Description
Name No.
Input 1 1 Input 1
Input 3 2 Input 3
Input 5 3 Input 5
Input 7 4 Input 7
Input 2 5 Input 2
Input 4 6 Input 4
Input 6 7 Input 6
Input 8 8 Input 8
