Beckhoff EL6900 User Manual

System description
EL690010 Version: 2.2.0
2.1.1 Bus Coupler
Mechanical data Bus Coupler
Material polycarbonate, polyamide (PA6.6).
Dimensions (W x H x D) 44mm x 100mm x 68mm
Mounting on 35 mm mounting rail (EN60715) with locking
Attachable by double slot and key connection

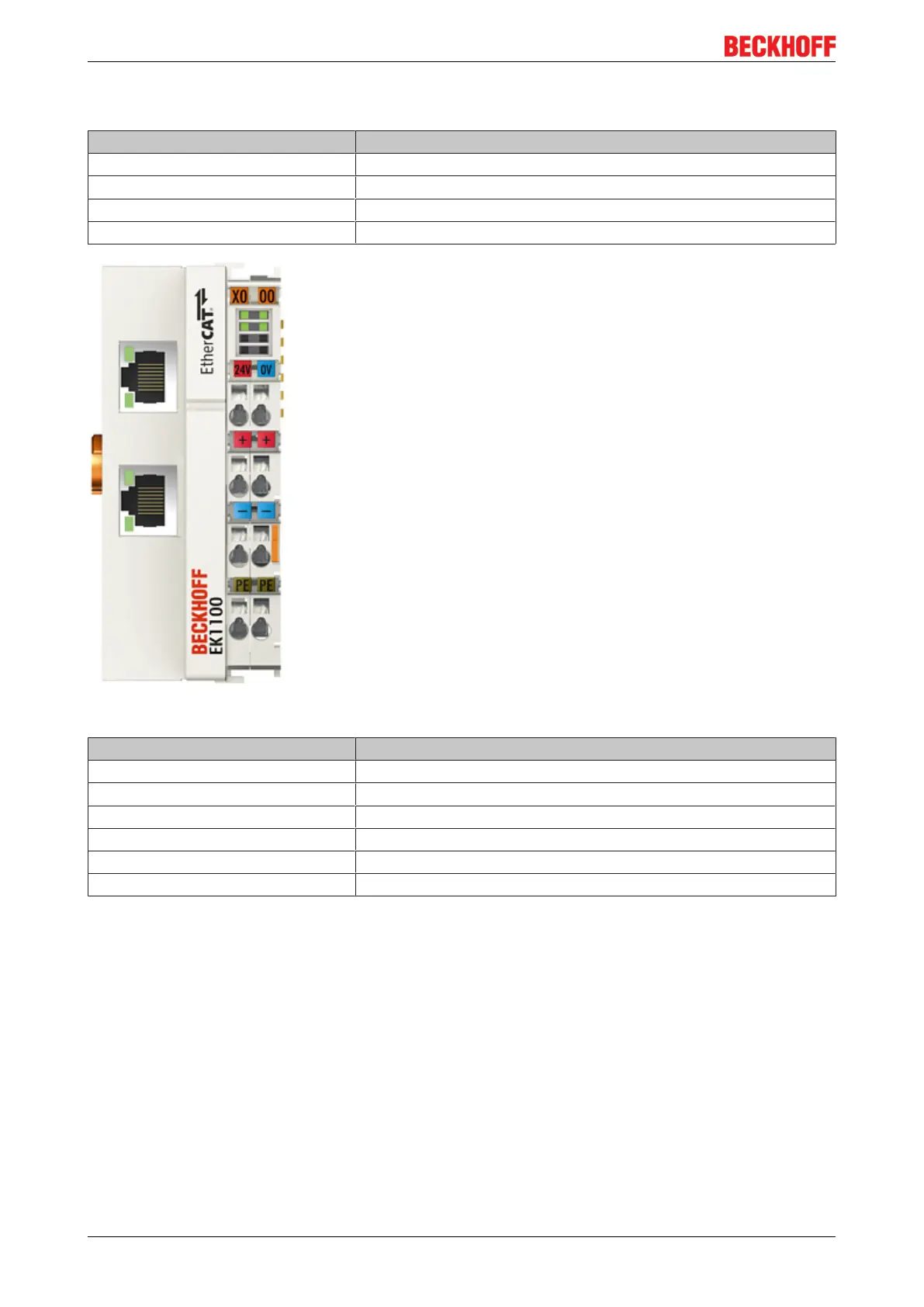

Fig.2: Bus Coupler (EtherCAT)
Connection technology Bus Coupler
Wiring spring-loaded system
Connection cross-section 0.08 mm² ... 2.5 mm², stranded wire, solid wire
Fieldbus connection depending on fieldbus
Power contacts 3 spring contacts
Current load 10A
Rated voltage 24 V
DC
